4G LTE 1710-2700M 14dbi directional flat antenna 256x256x40mm
Price:
Negotiable
MOQ:
10
Delivery Time:
15 days
Brand:
Leenz
Product Description
1. Specification
| A. Electrical Characteristics | |
| Frequency | 1710-2700MHz |
| S.W.R. | <= 2.0 |
| Antenna Gain | 14dBi |
| Polarization | Vertical |
| Horizontal Beamwidth | 35° |
| Vertical Beamwidth | 35° |
| F/B | >21dB |
| Impedance | 50Ohm |
| Max. Power | 50W |
| B. Material & Mechanical Characteristics | |
| Connector Type | N Female connector |
| Dimension | 256*256*40mm |
| Radome material | ABS |
| Weight | 0.7Kg |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 85 ˚C |
| Storage Temperature | - 40 ˚C ~ + 85 ˚C |
| Operation Humidity | ＜95% |
| Rated Wind Velocity | 36.9m/s |
2. Antenna - S Parameter Test Data

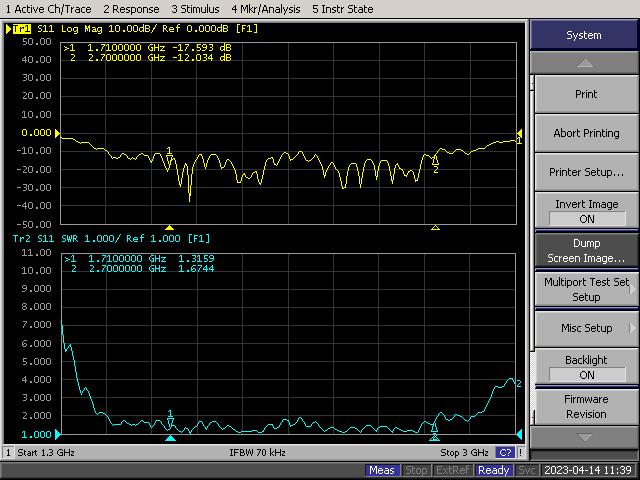

2.1 VSWR
2.2 Total Efficiency & Gain:
| Frequency(MHz) | Gain(dBi) |
| 1700 | 14.1 |
| 1800 | 14.4 |
| 1900 | 14.1 |
| 2000 | 14.2 |
| 2100 | 14.7 |
| 2200 | 15.3 |
| 2300 | 15.7 |
| 2400 | 16.0 |
| 2500 | 16.3 |
| 2600 | 16.6 |
| 2700 | 16.2 |
2.3 Radiation Pattern
| Port1 | 2D-Horizontal | 2D-Vertical | Horizontal & Vertical |

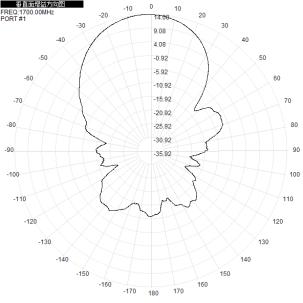

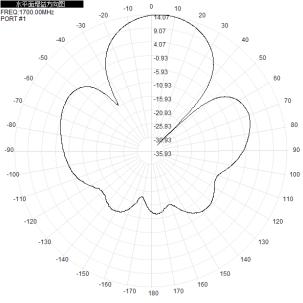

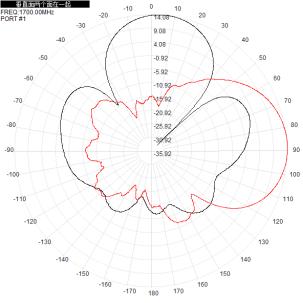

| 1710MHz |  |
 |
 |

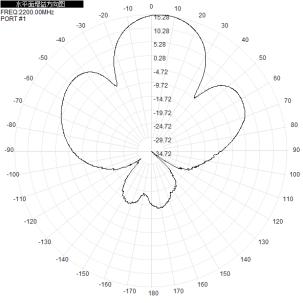

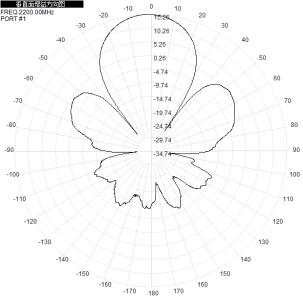

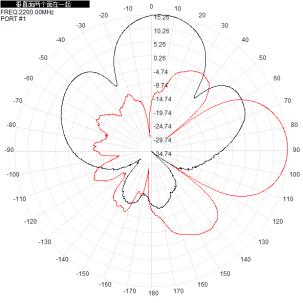

| 2200MHz |  |
 |
 |

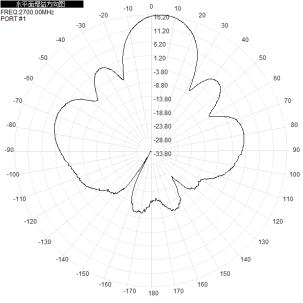

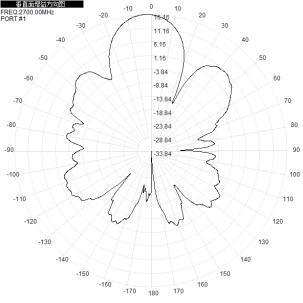

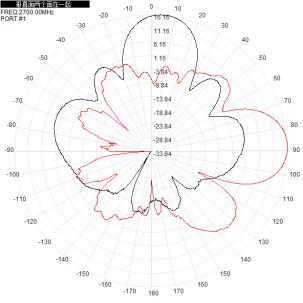

| 2700MHz |  |
 |
 |
