4G LTE 1710-2700M 14dbi ±45° Dual Polarized MA Directional Flat Antenna Stainless Steel
Price:
Negotiable
MOQ:
10
Delivery Time:
15 days
Brand:
Leenz
Product Description
1. Specification
| A. Electrical Characteristics | |
| Frequency | 1710-2700MHz |
| S.W.R. | <= 2.0 |
| Antenna Gain | 14dBi |
| Polarization | ±45° |
| Horizontal Beamwidth | 35° |
| Vertical Beamwidth | 35° |
| F/B | >30dB |
| Impedance | 50Ohm |
| Max. Power | 50W |
| B. Material & Mechanical Characteristics | |
| Connector Type | 2*N Female connector |
| Dimension | 256*256*40mm |
| Radome material | ABS(Backplate stainless steel) |
| Weight | 1.2Kg |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 85 ˚C |
| Storage Temperature | - 40 ˚C ~ + 85 ˚C |
| Operation Humidity | ＜95% |
| Rated Wind Velocity | 36.9m/s |
2. Antenna - S Parameter Test Data

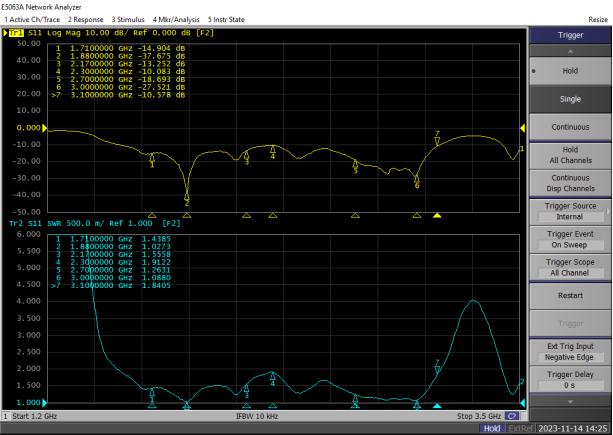

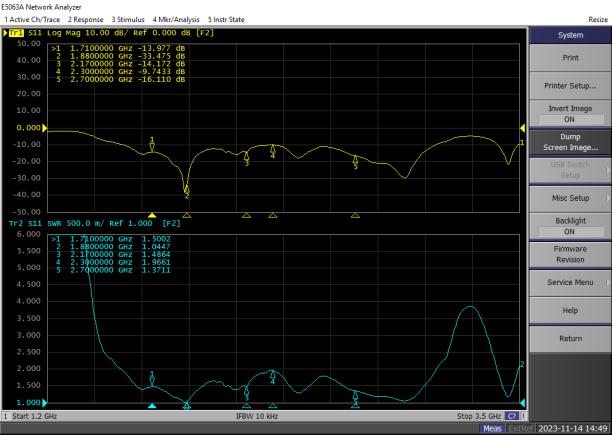

2.1 VSWR
+45°
-45°
2.2 Total Efficiency & Gain:
| +45° | -45° | |||
| Frequency(MHz) | Gain(dBi) | Frequency(MHz) | Gain(dBi) | |
| 1710 | 13.3 | 1710 | 13.5 | |
| 1800 | 13.2 | 1800 | 13.6 | |
| 1900 | 13.8 | 1900 | 13.8 | |
| 2000 | 13.7 | 2000 | 14.0 | |
| 2100 | 13.7 | 2100 | 13.9 | |
| 2200 | 13.5 | 2200 | 13.6 | |
| 2300 | 13.3 | 2300 | 13.5 | |
| 2400 | 13.3 | 2400 | 13.4 | |
| 2500 | 13.1 | 2500 | 13.4 | |
| 2600 | 13.1 | 2600 | 13.3 | |
| 2700 | 13.2 | 2700 | 13.6 | |

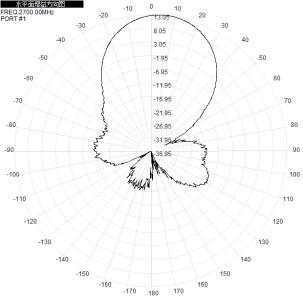

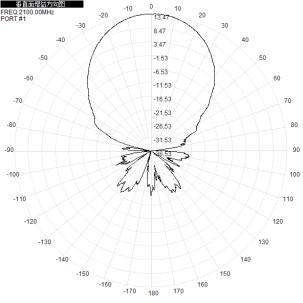

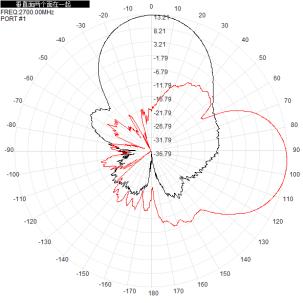

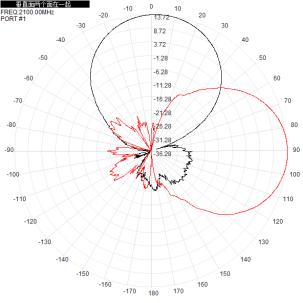

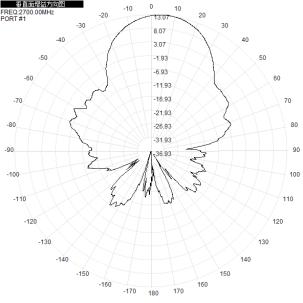

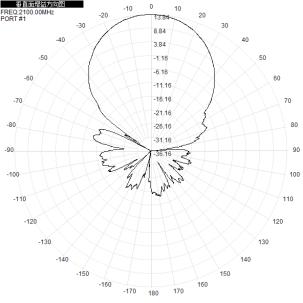

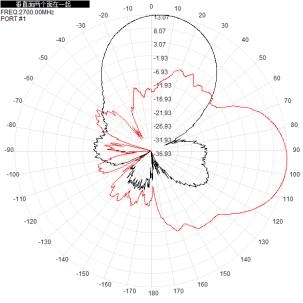

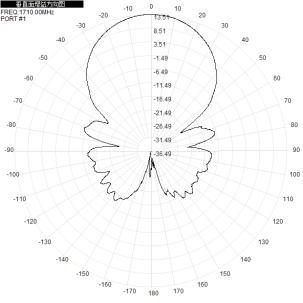

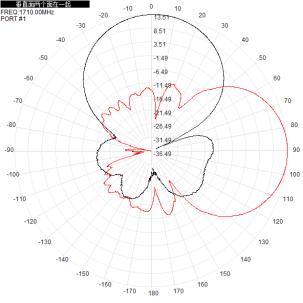

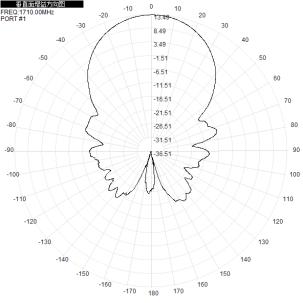

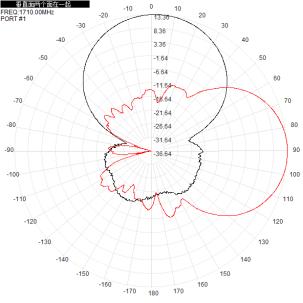

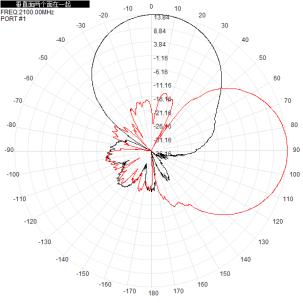

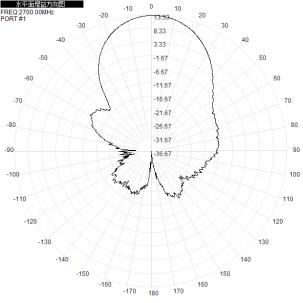

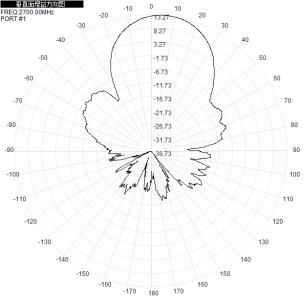

2.3 Radiation Pattern
| Port1 +45° | 2D-Horizontal | 2D-Vertical | Horizontal & Vertical |
| 1710MHz |  |
 |
 |
| 2100MHz |  |
 |
 |
| 2700MHz |  |
 |
 |
| Port2 -45° | 2D-Horizontal | 2D-Vertical | Horizontal & Vertical |
| 1710MHz |  |
 |
 |
| 2100MHz |  |
 |
 |
| 2700MHz |  |
 |
 |
