N Male 4800-5000M 4.8-5G Dipole Omnidirectional Antenna 150W Drone Jammer Strike Pressed FRP Antenna
Price:
Negotiable
MOQ:
10
Delivery Time:
15 days
Brand:
Leenz
Product Description
N Male 4800-5000M4.8-5G Omnidirectional 150W drone jammer strike pressed FRP waterproof antenna
1. Specification
| A. Electrical Characteristics | |
| Frequency | 4800-5000MHz(Customizable others) |
| Impedance | 50 Ohm |
| S.W.R. | <2.0 |
| Antenna Gain | 9dBi |
| Efficiency | ≈80% |
| Polarization | Linear |
| Horizontal Beamwidth | 360° |
| Vertical Beamwidth | 10±5° |
| Max Power | 150W |
| B. Material & Mechanical Characteristics | |
| Connector Type | N - Female |
| Dimension | Φ25*600mm |
| Colour | Army black |
| Weight | 0.5Kg |
| Radome material | Fiberglass |
| C. Environmental | |
| Operation Temperature | - 45 ˚C ~ + 85 ˚C |
| Storage Temperature | - 45 ˚C ~ + 85 ˚C |
| Rated Wind Velocity | 36.9m/s |
| Lighting Protection | DC Ground |
2. Antenna - S Parameter Test Data

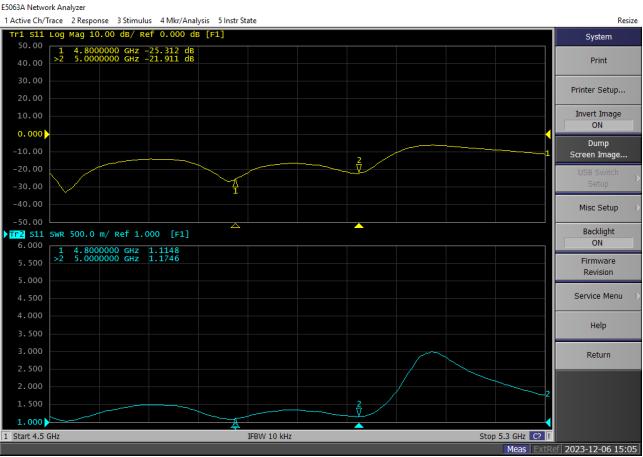

2.1 VSWR
2.2 Total Efficiency & Gain:
| Frequency(MHz) | Gain(dBi) | Efficiency(%) |
| 4800 | 9.2 | 74.7 |
| 4820 | 9.2 | 75.6 |
| 4840 | 9.0 | 72.1 |
| 4860 | 8.9 | 71.4 |
| 4880 | 8.7 | 68.1 |
| 4900 | 8.6 | 66.6 |
| 4920 | 8.7 | 70.3 |
| 4940 | 8.9 | 72.9 |
| 4960 | 8.8 | 71.0 |
| 4980 | 8.9 | 72.7 |
| 5000 | 8.8 | 70.8 |
2.3 Radiation Pattern
| 3D | 2D-Horizontal | 2D-Vertical | |
| 4800MHz |
|
 |
 |
| 4900MHz |  |
 |
 |
| 5000MHz |  |
 |
 |
