850-950M 915M 902-930M 868 Mhz Directional Antenna NB LORA 14dbi Single-Polarization For UAV
Price:
Negotiable
MOQ:
10
Delivery Time:
15 days
Brand:
Leenz
Product Description
850-950M868M915M902-930M NB LORA 14dbi single-polarization directional antenna for UAV
1. Specification
| A. Electrical Characteristics | |
| Frequency | 850-950MHz |
| S.W.R. | <= 2.0 |
| Antenna Gain | 14dBi |
| Polarization | V |
| Horizontal Beamwidth | 45±5° |
| Vertical Beamwidth | 40±5° |
| F/B | >19dB |
| Impedance | 50Ohm |
| Max. Power | 50W |
| B. Material & Mechanical Characteristics | |
| Connector Type | N Female connector |
| Dimension | 450*450*40mm |
| Radome material | ABS |
| Weight | 3.4Kg |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 85 ˚C |
| Storage Temperature | - 40 ˚C ~ + 85 ˚C |
| Operation Humidity | ＜95% |
| Rated Wind Velocity | 36.9m/s |
2. Antenna - S Parameter Test Data

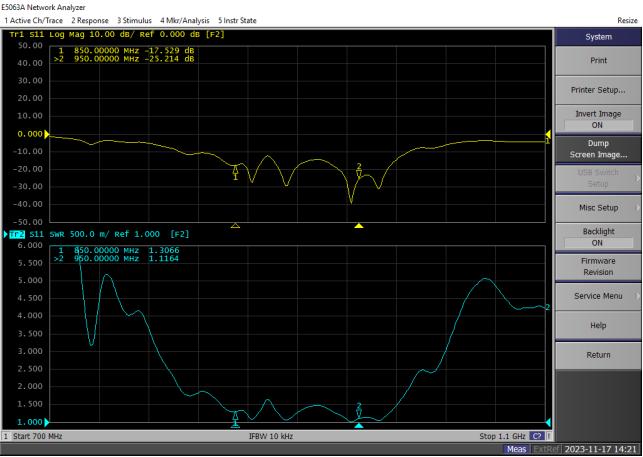

2.1 VSWR
2.2 Total Efficiency & Gain:
| Frequency(MHz) | Gain(dBi) |
| 850 | 11.0 |
| 860 | 10.9 |
| 870 | 11.9 |
| 880 | 11.3 |
| 890 | 13.1 |
| 900 | 14.1 |
| 910 | 14.5 |
| 920 | 14.3 |
| 930 | 13.8 |
| 940 | 13.6 |
| 950 | 13.7 |
2.3 Radiation Pattern
| Port1 | 2D-Horizontal | 2D-Vertical | Horizontal & Vertical |

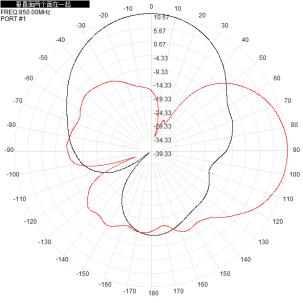

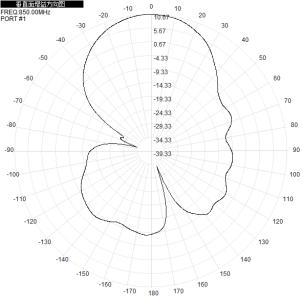

| 850MHz |  |
 |
 |

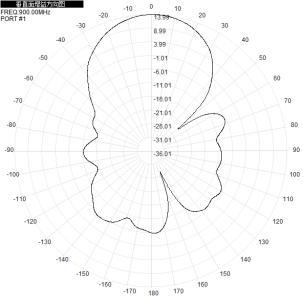

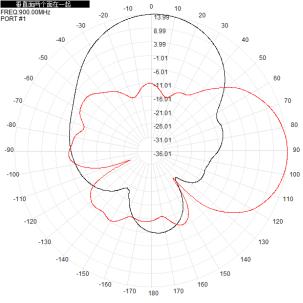

| 900MHz |  |
 |
 |

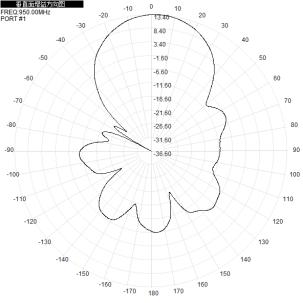

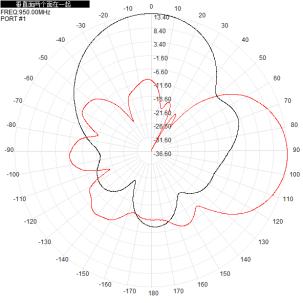

| 950MHz |  |
 |
 |
