1.2G1-1.2G 1015-1215M 14dbi Single-Polarization UAV Directional Flat Directional Antenna
Price:
Negotiable
MOQ:
10
Delivery Time:
15 days
Brand:
Leenz
Product Description
1.2G1-1.2G1015-1215M 14dbi single-polarization UAV flat directional antenna
1. Specification
| A. Electrical Characteristics | |
| Frequency | 1015-1215MHz |
| S.W.R. | <= 2.0 |
| Antenna Gain | 14dBi |
| Polarization | V |
| Horizontal Beamwidth | 45±5° |
| Vertical Beamwidth | 40±5° |
| F/B | >21dB |
| Impedance | 50Ohm |
| Max. Power | 50W |
| B. Material & Mechanical Characteristics | |
| Connector Type | N Female connector |
| Dimension | 450*450*40mm |
| Radome material | ABS |
| Weight | 3Kg |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 85 ˚C |
| Storage Temperature | - 40 ˚C ~ + 85 ˚C |
| Operation Humidity | ＜95% |
| Rated Wind Velocity | 36.9m/s |
2. Antenna - S Parameter Test Data

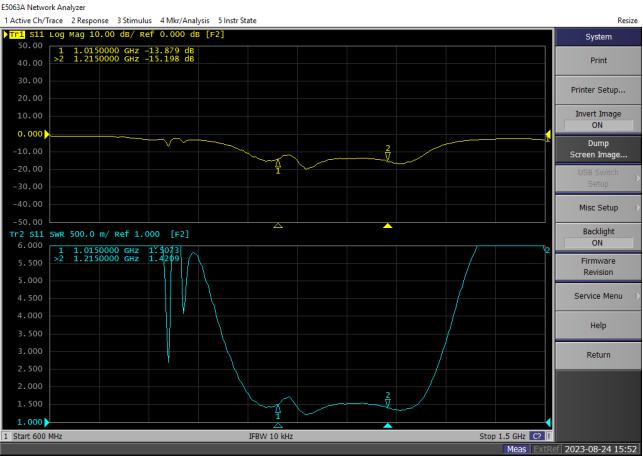

2.1 VSWR
2.2 Total Efficiency & Gain:
| Frequency(MHz) | Gain(dBi) |
| 1015 | 13.2 |
| 1040 | 12.5 |
| 1065 | 12.5 |
| 1090 | 13.1 |
| 1115 | 13.5 |
| 1140 | 13.8 |
| 1165 | 14.0 |
| 1190 | 13.8 |
| 1215 | 13.9 |

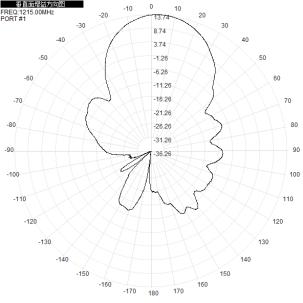

2.3 Radiation Pattern
| Port1 | 2D-Horizontal | 2D-Vertical | Horizontal & Vertical |

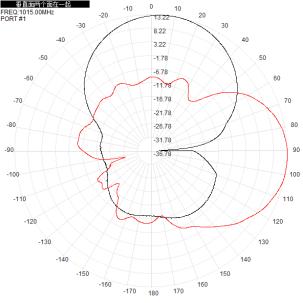

| 1015MHz |  |
 |
 |

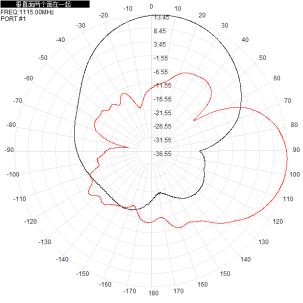

| 1115MHz |  |
 |
 |

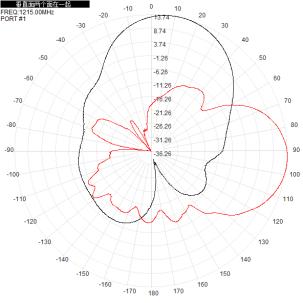

| 1215MHz |  |
 |
 |
