N Female 1650-1750M 16dbi Single Polarized Directional Antenna
Price:
Negotiable
MOQ:
10
Delivery Time:
15 days
Brand:
Leenz
Product Description
1. Specification
| A. Electrical Characteristics | |
| Frequency | 1015-1215MHz |
| S.W.R. | <= 2.0 |
| Antenna Gain | 16dBi |
| Polarization | Vertical |
| Horizontal Beamwidth | 25±5° |
| Vertical Beamwidth | 25±5° |
| F/B | >30dB |
| Impedance | 50Ohm |
| Max. Power | 50W |
| B. Material & Mechanical Characteristics | |
| Connector Type | N Female connector |
| Dimension | 450*450*40mm |
| Radome material | ABS |
| Weight | 3.2Kg |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 85 ˚C |
| Storage Temperature | - 40 ˚C ~ + 85 ˚C |
| Operation Humidity | ＜95% |
| Rated Wind Velocity | 36.9m/s |
2. Antenna - S Parameter Test Data

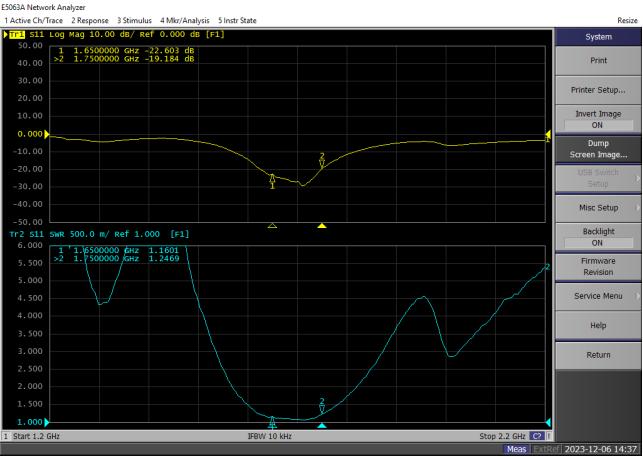

2.1 VSWR
2.2 Total Efficiency & Gain:
| Frequency(MHz) | Gain(dBi) |
| 1650 | 16.1 |
| 1660 | 16.2 |
| 1670 | 16.1 |
| 1680 | 16.2 |
| 1690 | 16.2 |
| 1700 | 16.3 |
| 1710 | 16.1 |
| 1720 | 15.9 |
| 1730 | 16.1 |
| 1740 | 15.9 |
| 1750 | 15.8 |
2.3 Radiation Pattern
| Port1 | 2D-Horizontal | 2D-Vertical | Horizontal & Vertical |
| 1650MHz |  |
 |
 |
| 1700MHz |  |
 |
 |
| 1750MHz |  |
 |
 |
