2.4G 5.8G 2400-2500/5150-5850M Wifi6 8dBi Single Polarized Wall Mounted Directional Antenna
Price:
Negotiable
MOQ:
10
Delivery Time:
15 days
Brand:
Leenz
Product Description
1. Specification
| A. Electrical Characteristics | |
| Frequency | 2400-2500/5150-5850MHz |
| S.W.R. | <= 2.0 |
| Antenna Gain | 8dBi |
| Polarization | Vertical |
| Horizontal Beamwidth | 90±10° |
| Vertical Beamwidth | 70±10° |
| F/B | >13dB |
| Impedance | 50Ohm |
| Max. Power | 50W |
| B. Material & Mechanical Characteristics | |
| Connector Type |
RG303 L=50CM N Female connector |
| Dimension | 100*100*25mm |
| Radome material | ABS |
| Weight | 0.1Kg |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 85 ˚C |
| Storage Temperature | - 40 ˚C ~ + 85 ˚C |
| Operation Humidity | ＜95% |
| Rated Wind Velocity | 36.9m/s |
2. Antenna - S Parameter Test Data

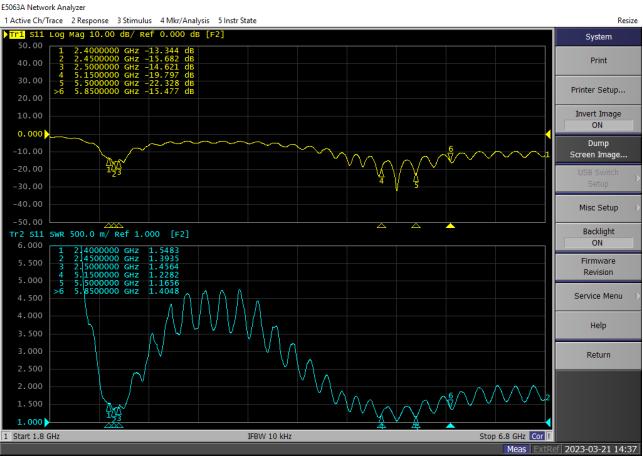

2.1 VSWR
2.2 Total Efficiency & Gain:
| Frequency(MHz) | Gain(dBi) |
| 2400 | 6.6 |
| 2410 | 6.5 |
| 2420 | 6.5 |
| 2430 | 6.5 |
| 2440 | 6.6 |
| 2450 | 6.6 |
| 2460 | 6.6 |
| 2470 | 6.6 |
| 2480 | 6.5 |
| 2490 | 6.6 |
| 2500 | 6.6 |
| 5150 | 6.8 |
| 5200 | 6.4 |
| 5250 | 5.8 |
| 5300 | 5.9 |
| 5350 | 6.2 |
| 5400 | 6.3 |
| 5450 | 6.6 |
| 5500 | 6.2 |
| 5550 | 6.0 |
| 5600 | 5.9 |
| 5650 | 5.9 |
| 5700 | 6.2 |
| 5750 | 6.2 |
| 5800 | 6.3 |
| 5850 | 6.5 |

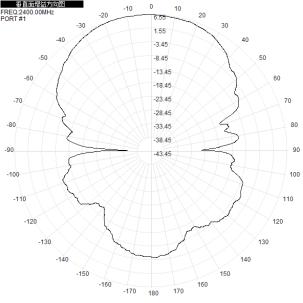

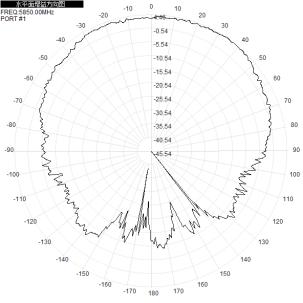

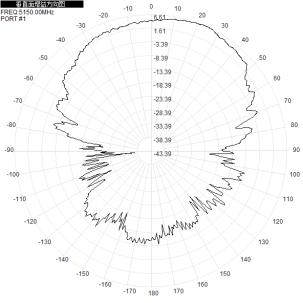

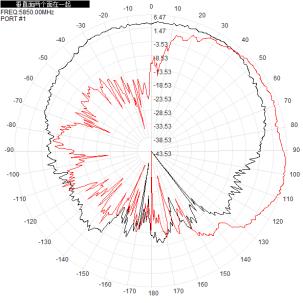

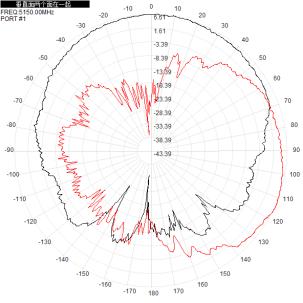

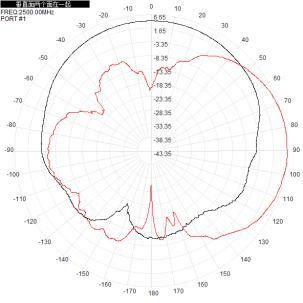

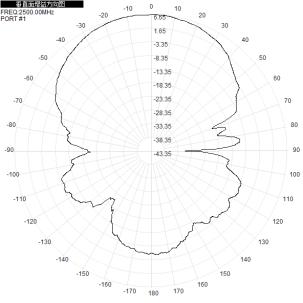

2.3 Radiation Pattern
| Port1 | 2D-Horizontal | 2D-Vertical | Horizontal & Vertical |

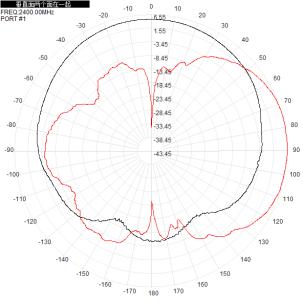

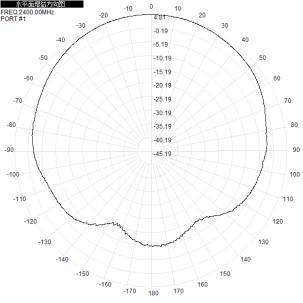

| 2400MHz |  |
 |
 |

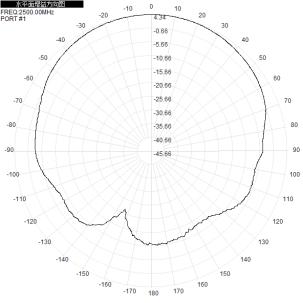

| 2500MHz |  |
 |
 |

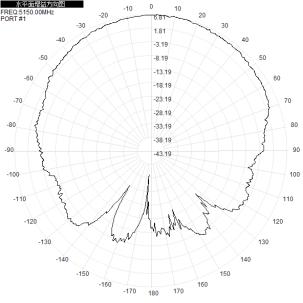

| 5150MHz |  |
 |
 |

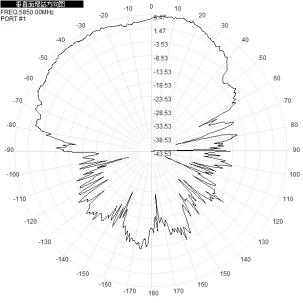

| 5850MHz |  |
 |
 |
