Beidou GPS 1561-1575M 4dBi Dual Mode Passive Waterproof Directional Gps Antenna ceiling-mounted antenna
Price:
Negotiable
MOQ:
10
Delivery Time:
15 days
Brand:
Leenz
Product Description
Beidou GPS 1561-1575M 4dBi dual mode passive waterproof directional antenna
1. Specification
| A. Electrical Characteristics | |
| Frequency | 1561-1575MHz |
| S.W.R. | <= 2.0 |
| Antenna Gain | 4dBi |
| Polarization | RHCP |
| Horizontal Beamwidth | 360° |
| Vertical Beamwidth | 100±10° |
| F/B | >27dB |
| Impedance | 50Ohm |
| Max. Power | 50W |
| B. Material & Mechanical Characteristics | |
| Connector Type | N Female connector |
| Dimension |
φ86*40mm |
| Radome material | ABS |
| Weight | 0.1Kg |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 85 ˚C |
| Storage Temperature | - 40 ˚C ~ + 85 ˚C |
| Operation Humidity | ＜95% |
| Rated Wind Velocity | 36.9m/s |
2. Antenna - S Parameter Test Data

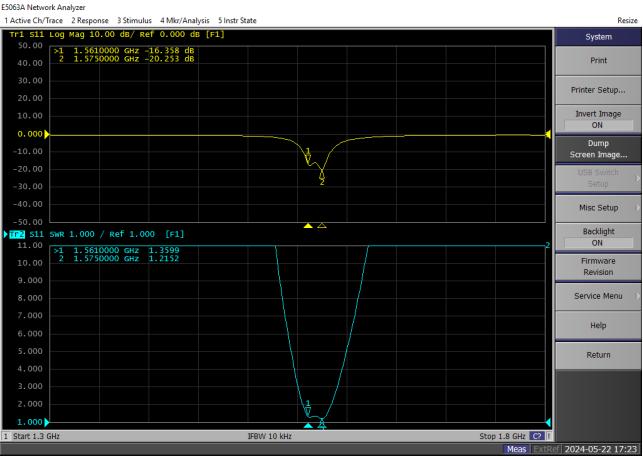

2.1 VSWR
2.2 Total Efficiency & Gain:
| Frequency(MHz) | Gain(dBi) | Efficiency(%) |
| 1561 | 3.7 | 66.1 |
| 1562 | 3.7 | 65.8 |
| 1563 | 3.6 | 65.4 |
| 1564 | 3.5 | 64.8 |
| 1565 | 3.4 | 64.1 |
| 1566 | 3.4 | 63.6 |
| 1570 | 3.1 | 62.3 |
| 1571 | 3.2 | 63.5 |
| 1572 | 3.2 | 64.9 |
| 1573 | 3.3 | 66.2 |
| 1574 | 3.4 | 67.0 |
| 1575 | 3.4 | 67.2 |
| Port1 | 3D | 2D-Horizontal | 2D-Vertical |
| 1561MHz |  |
 |
 |
| 1570MHz |  |
 |
 |
| 1575MHz |  |
 |
 |
