industrial directional antenna 4g 5G 1700-3800M single polarized 1710-2690M 3300-3800M 12dBi base station sector plate
Price:
Negotiable
MOQ:
10
Delivery Time:
15 days
Brand:
Leenz
Product Description
4G5G 1700-3800M single-polarized 1710-2690M3300-3800M 12dBi base station sector plate directional antenna
1. Specification
| A. Electrical Characteristics | |
| Frequency | 1710-3800MHz |
| S.W.R. | <= 2.0 |
| Antenna Gain | 12dBi |
| Polarization | V |
| Horizontal Beamwidth | 70±10° |
| Vertical Beamwidth | 35±5° |
| F/B | >27dB |
| Impedance | 50Ohm |
| Max. Power | 50W |
| B. Material & Mechanical Characteristics | |
| Connector Type | N Female connector |
| Dimension |
250*160*80mm |
| Radome material | UPVC |
| Weight | 1.4Kg |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 85 ˚C |
| Storage Temperature | - 40 ˚C ~ + 85 ˚C |
| Operation Humidity | ＜95% |
| Rated Wind Velocity | 36.9m/s |
2. Antenna - S Parameter Test Data

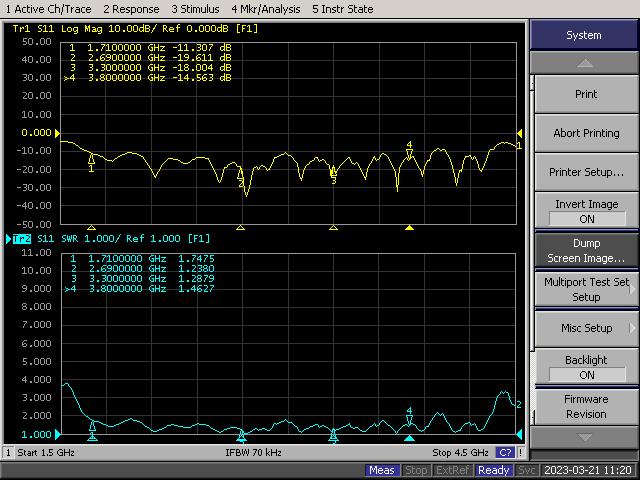

2.1 VSWR
2.2 Total Efficiency & Gain:
| Frequency(MHz) | Gain(dBi) |
| 1700 | 10.5 |
| 1800 | 10.8 |
| 1900 | 10.7 |
| 2000 | 11.0 |
| 2100 | 11.5 |
| 2200 | 12.0 |
| 2300 | 12.1 |
| 2400 | 12.1 |
| 2500 | 12.4 |
| 2600 | 12.5 |
| 2700 | 12.9 |
| 3300 | 13.7 |
| 3350 | 13.9 |
| 3400 | 13.8 |
| 3450 | 13.9 |
| 3500 | 13.8 |
| 3550 | 13.6 |
| 3600 | 13.5 |
| 3650 | 13.5 |
| 3700 | 13.9 |
| 3750 | 13.6 |
| 3800 | 13.6 |

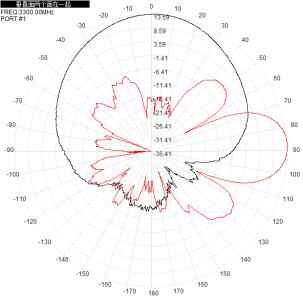

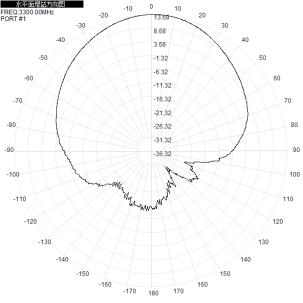

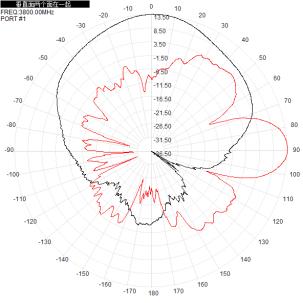

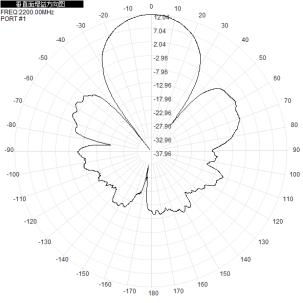

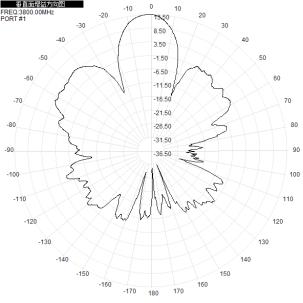

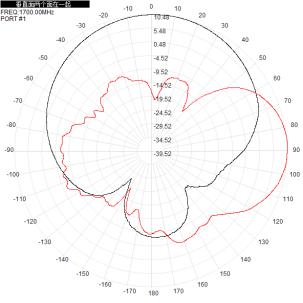

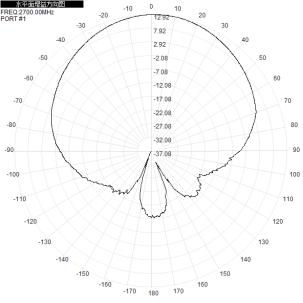

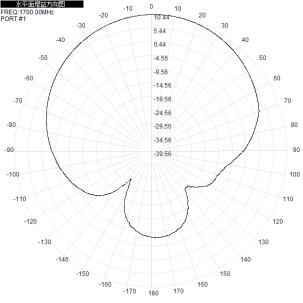

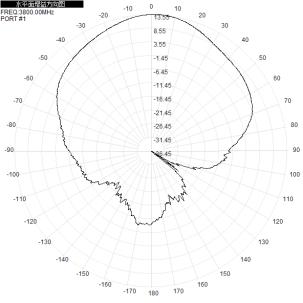

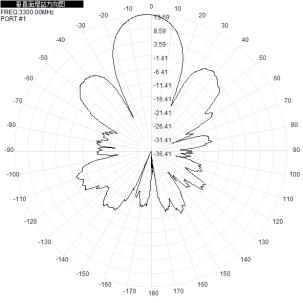

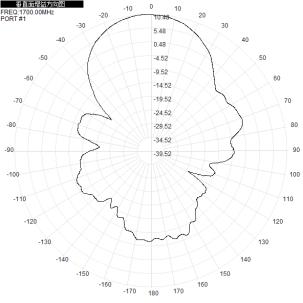

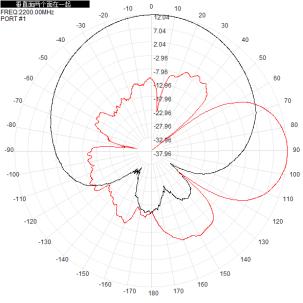

| Port1 | 2D-Horizontal | 2D-Vertical | Horizontal & Vertical |
| 1700MHz |  |
 |
 |
| 2200MHz |  |
 |
 |
| 2700MHz |  |
 |
 |
| 3300MHz |  |
|
|
| 3800MHz |  |
 |
 |
