Directional 5g Antenna 3300-3800M 3.3-3.8G 16dBi Single-Polarization Base Station Coal Mine
Price:
Negotiable
MOQ:
10
Delivery Time:
15 days
Brand:
Leenz
Product Description
5G 3300-3800M3.3-3.8G 16dBi single-polarization base station coal mine directional antenna
1. Specification
| A. Electrical Characteristics | |
| Frequency | 3300-3800MHz |
| S.W.R. | <= 2.0 |
| Antenna Gain | 16dBi |
| Polarization | V |
| Horizontal Beamwidth | 35±5° |
| Vertical Beamwidth | 18±5° |
| F/B | >27dB |
| Impedance | 50Ohm |
| Max. Power | 50W |
| B. Material & Mechanical Characteristics | |
| Connector Type | N Female connector |
| Dimension |
260*260*35mm |
| Radome material | ABS |
| Weight | 1.5Kg |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 85 ˚C |
| Storage Temperature | - 40 ˚C ~ + 85 ˚C |
| Operation Humidity | ＜95% |
| Rated Wind Velocity | 36.9m/s |
2. Antenna - S Parameter Test Data

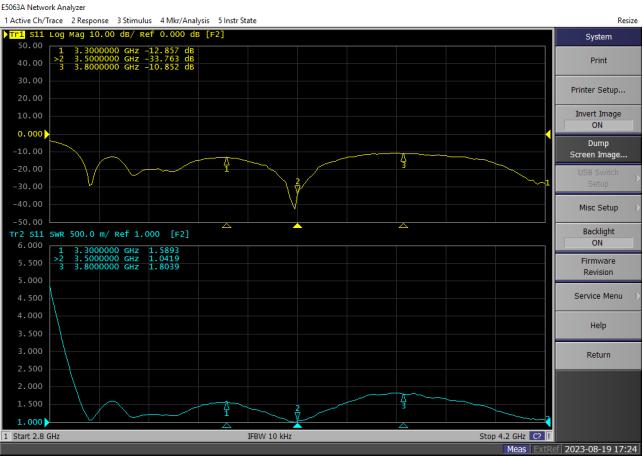

2.1 VSWR
2.2 Total Efficiency & Gain:
| Frequency(MHz) | Gain(dBi) |
| 3300 | 15.8 |
| 3350 | 16.1 |
| 3400 | 16.2 |
| 3450 | 16.4 |
| 3500 | 16.3 |
| 3550 | 16.4 |
| 3600 | 16.6 |
| 3650 | 16.5 |
| 3700 | 16.4 |
| 3750 | 16.0 |
| 3800 | 16.1 |

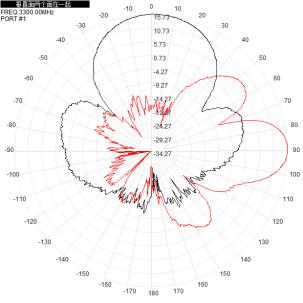

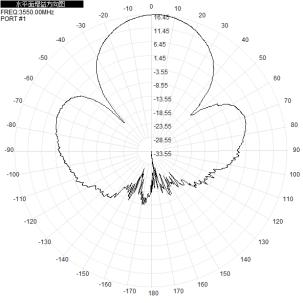

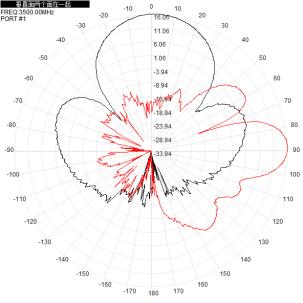

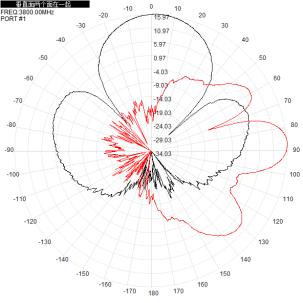

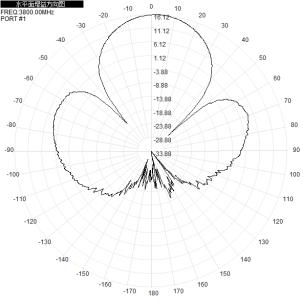

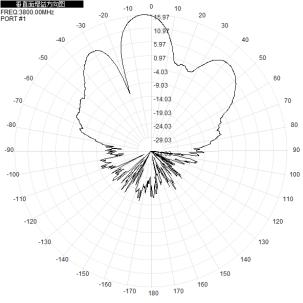

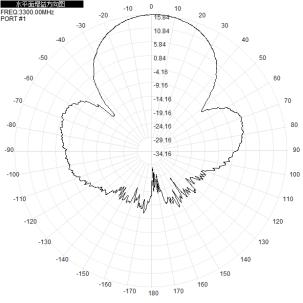

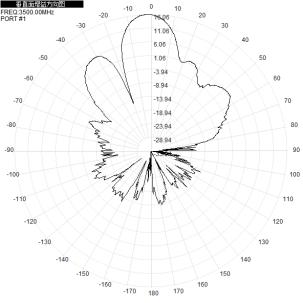

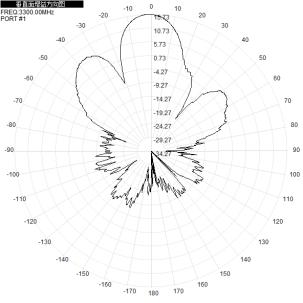

2.3 Radiation Pattern
| Port1 | 2D-Horizontal | 2D-Vertical | Horizontal & Vertical |
| 3300MHz |  |
 |
 |
| 3550MHz |  |
 |
 |
| 3800MHz |  |
 |
 |
