800 Mhz Directional Antenna 7dbi Single-Polarization Directive Antenna 210x180x45mm
Price:
Negotiable
MOQ:
10
Delivery Time:
15 days
Brand:
Leenz
Product Description
800M 7dbi single-polarization directional antenna 210x180x45mm
Specification
| A. Electrical Characteristics | |
| Frequency | 800MHz |
| S.W.R. | <2.0 |
| Antenna Gain | 7dBi |
| Polarization | Vertical |
| Horizontal Beamwidth | 85° |
| Vertical Beamwidth | 75° |
| F/B | >15dB |
| Impedance | 50Ohm |
| Max. Power | 50W |
| B. Material & Mechanical Characteristics | |
| Cable Type | RG58U Cable, length 300mm |
| Connector Type | SMA connector |
| Dimension | 210*180*45mm |
| Radome material | ABS |
| Weight | 0.65Kg |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 85 ˚C |
| Storage Temperature | - 40 ˚C ~ + 85 ˚C |
| Operation Humidity | ＜95% |
| Rated Wind Velocity | 36.9m/s |
2. Antenna - S Parameter Test Data

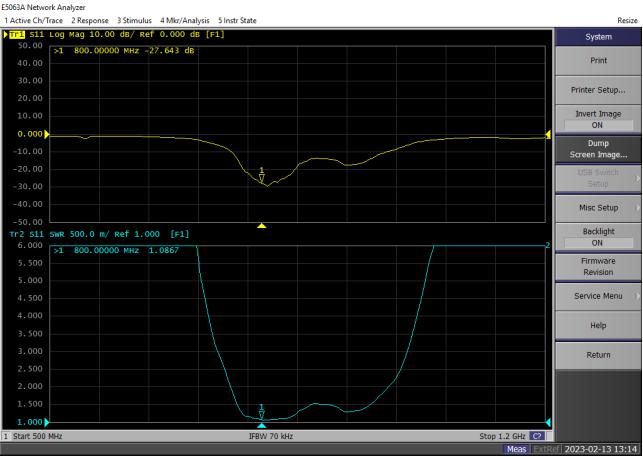

2.1 VSWR
2.2 Total Efficiency & Gain:
| Frequency(MHz) | Gain(dBi) |
| 795 | 6.9 |
| 796 | 7.0 |
| 797 | 7.0 |
| 798 | 7.0 |
| 799 | 7.1 |
| 800 | 7.1 |
| 801 | 7.1 |
| 802 | 7.1 |
| 803 | 7.1 |
| 804 | 7.1 |
| 805 | 7.1 |

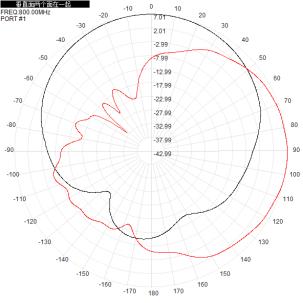

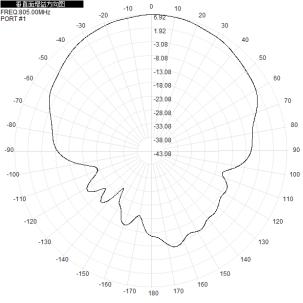

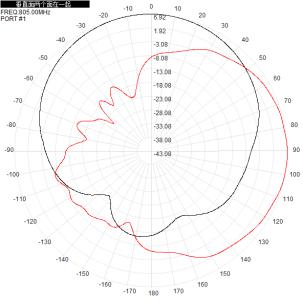

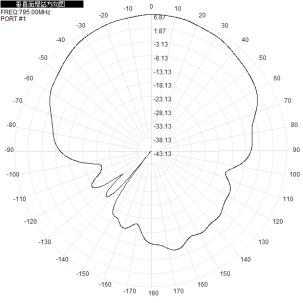

2.3 Radiation Pattern
| Port1 | 2D-Horizontal | 2D-Vertical | Horizontal & Vertical |
| 795MHz |  |
 |
 |
| 800MHz |  |
 |
 |
| 805MHz |  |
 |
 |
