800M 790-820M Single-Polarized 5db Directional Antenna 210x180x45mm
Price:
Negotiable
MOQ:
10
Delivery Time:
15 days
Brand:
Leenz
Product Description
800M790-820M Single-polarized 5dbi directional antenna 210x180x45mm
1. Specification
| A. Electrical Characteristics | |
| Frequency | 790-820MHz |
| S.W.R. | <= 2.0 |
| Antenna Gain | 5dBi |
| Polarization | Vertical |
| Horizontal Beamwidth | 75° |
| Vertical Beamwidth | 75° |
| F/B | >13dB |
| Impedance | 50Ohm |
| Max. Power | 50W |
| B. Material & Mechanical Characteristics | |
| Connector Type | N Female connector |
| Dimension | 210*180*45mm |
| Radome material | ABS |
| Weight | 0.7Kg |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 85 ˚C |
| Storage Temperature | - 40 ˚C ~ + 85 ˚C |
| Operation Humidity | ＜95% |
| Rated Wind Velocity | 36.9m/s |
2. Antenna - S Parameter Test Data
2.1 VSWR
2.2 Total Efficiency & Gain:
| Frequency(MHz) | Gain(dBi) |
| 790 | 4.4 |
| 795 | 4.6 |
| 800 | 4.7 |
| 805 | 4.7 |
| 810 | 5.0 |
| 815 | 5.2 |
| 820 | 5.4 |
2.3 Radiation Pattern
| Port1 | 2D-Horizontal | 2D-Vertical | Horizontal & Vertical |

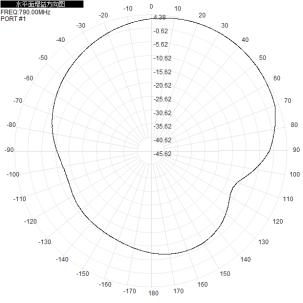

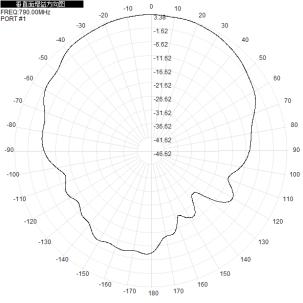

| 790MHz |  |
 |
 |

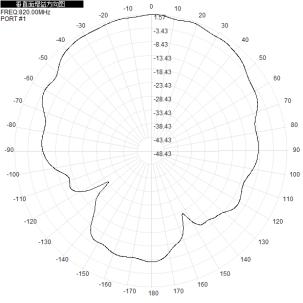

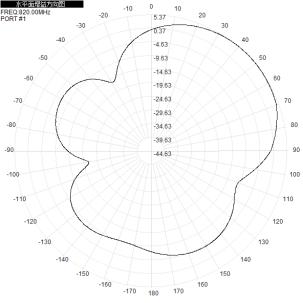

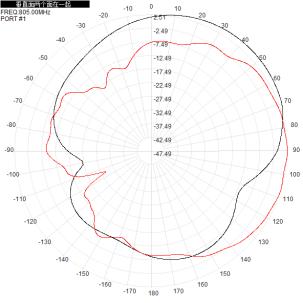

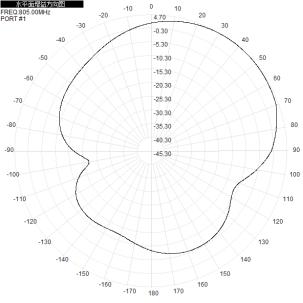

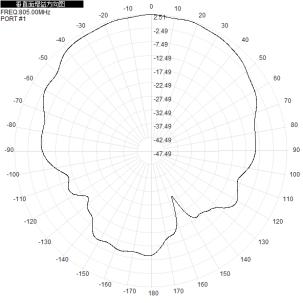

| 805MHz |  |
 |
 |

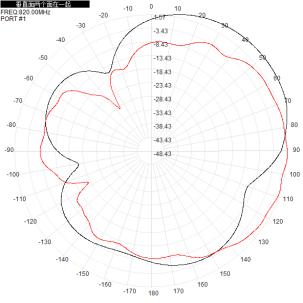

| 820MHz |  |
 |
 |
