Directional External Antenna Lora 2.4G 2400-2500M Wifi 14dBi 225x225x25mm
Price:
Negotiable
MOQ:
10
Delivery Time:
15 days
Brand:
Leenz
Product Description
2.4G 2400-2500M wifi 14dBi dual-polarized wall-mounted directional antenna 225x225x25mm
1. Specification
| A. Electrical Characteristics | |
| Frequency | 2400-2500MHz |
| S.W.R. | <= 2.0 |
| Antenna Gain | 14dBi |
| Polarization | H+V |
| Horizontal Beamwidth | 45±5° |
| Vertical Beamwidth | 35±5° |
| F/B | >22dB |
| Impedance | 50Ohm |
| Max. Power | 50W |
| B. Material & Mechanical Characteristics | |
| Connector Type | RG58U L=100cm SMA-J connector |
| Dimension | 225*225*25mm |
| Radome material | ABS |
| Weight | 0.85Kg |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 85 ˚C |
| Storage Temperature | - 40 ˚C ~ + 85 ˚C |
| Operation Humidity | ＜95% |
| Rated Wind Velocity | 36.9m/s |
2. Antenna - S Parameter Test Data

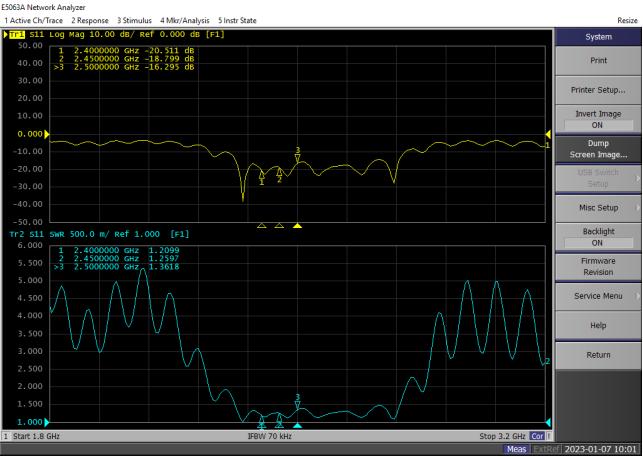

2.1 VSWR
2.2 Total Efficiency & Gain:
| Frequency(MHz) | Gain(dBi) |
| 2400 | 13.166 |
| 2410 | 13.142 |
| 2420 | 13.092 |
| 2430 | 13.065 |
| 2440 | 13.158 |
| 2450 | 13.184 |
| 2460 | 13.315 |
| 2470 | 13.427 |
| 2480 | 13.48 |
| 2490 | 13.554 |
| 2500 | 13.602 |

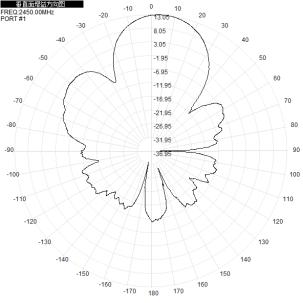

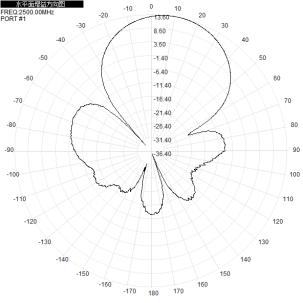

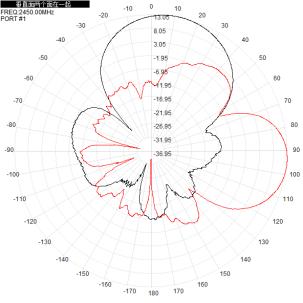

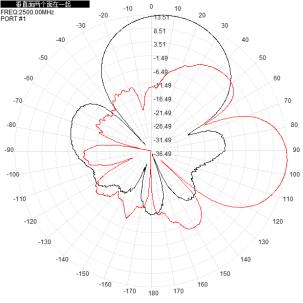

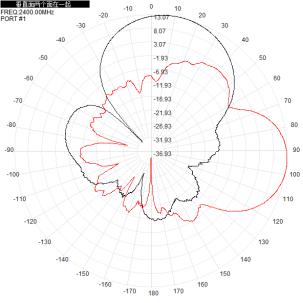

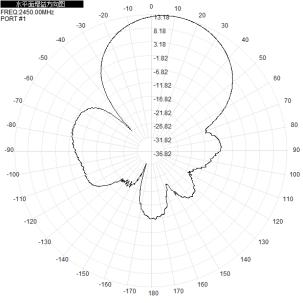

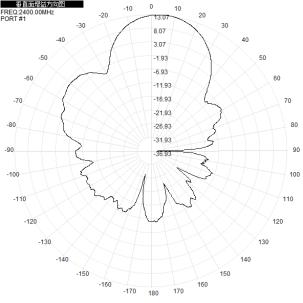

2.3 Radiation Pattern
| Port1 | 2D-Horizontal | 2D-Vertical | Horizontal & Vertical |
| 2400MHz |  |
 |
 |
| 2450MHz |  |
 |
 |
| 2500MHz |  |
 |
 |
