Gsm Directional Antenna Lora 4G LTE 1710-2700M 12dbi Dual-Polarization 300x160x80mm
Price:
Negotiable
MOQ:
10
Delivery Time:
15 days
Brand:
Leenz
Product Description
4G LTE 1710-2700M 12dbi dual-polarization directional antenna 300x160x80mm
1. Specification
| A. Electrical Characteristics | |
| Frequency | 1710-2700MHz |
| S.W.R. | <= 2.0 |
| Antenna Gain | 12dBi |
| Polarization | ±45 |
| Horizontal Beamwidth | 65±5° |
| Vertical Beamwidth | 35±5° |
| F/B | >20dB |
| Impedance | 50Ohm |
| Max. Power | 100W |
| B. Material & Mechanical Characteristics | |
| Connector Type | 2*N Female connector |
| Dimension | 300*160*80mm |
| Radome material | UPVC |
| Weight | 2.2Kg |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 85 ˚C |
| Storage Temperature | - 40 ˚C ~ + 85 ˚C |
| Operation Humidity | ＜95% |
| Rated Wind Velocity | 36.9m/s |
2. Antenna - S Parameter Test Data
2.1 VSWR
2.2 Total Efficiency & Gain:
| Port 1 | Port 2 | |||
| Frequency(MHz) | Gain(dBi) | Frequency(MHz) | Gain(dBi) | |
| 1700 | 11.1 | 1700 | 10.7 | |
| 1800 | 10.9 | 1800 | 10.6 | |
| 1900 | 11.5 | 1900 | 11.1 | |
| 2000 | 11.1 | 2000 | 10.4 | |
| 2100 | 11.8 | 2100 | 11.0 | |
| 2200 | 11.4 | 2200 | 10.7 | |
| 2300 | 11.5 | 2300 | 11.1 | |
| 2400 | 11.4 | 2400 | 11.3 | |
| 2500 | 11.3 | 2500 | 11.2 | |
| 2600 | 11.1 | 2600 | 11.3 | |
| 2700 | 11.3 | 2700 | 11.4 | |

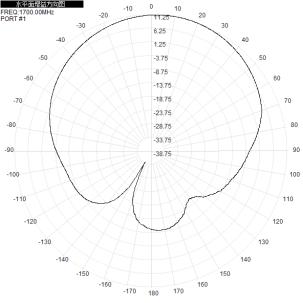

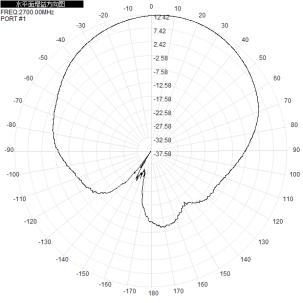

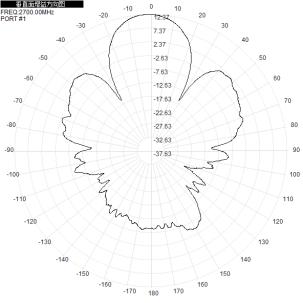

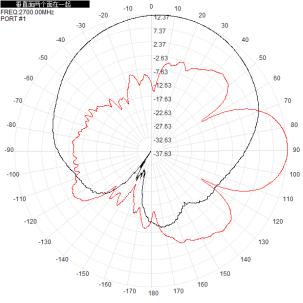

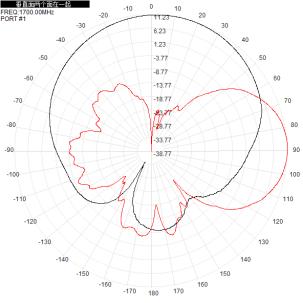

2.3 Radiation Pattern
| Port | 2D-Horizontal | 2D-Vertical | Horizontal & Vertical |
| 1710MHz |  |
 |
 |
| 2200MHz |  |
 |
 |
| 2700MHz |  |
 |
 |
