1.4G 1350-1550M 15dbi Directional Outdoor Antenna Single Polarization UAV
Price:
Negotiable
MOQ:
10
Delivery Time:
15 days
Brand:
Leenz
Product Description
1. Specification
| A. Electrical Characteristics | |
| Frequency | 1350-1550MHz |
| S.W.R. | <= 2.0 |
| Antenna Gain | 15dBi |
| Polarization | V |
| Horizontal Beamwidth | 35±5° |
| Vertical Beamwidth | 30±5° |
| F/B | >20dB |
| Impedance | 50Ohm |
| Max. Power | 100W |
| B. Material & Mechanical Characteristics | |
| Connector Type | N Female connector |
| Dimension | 390*390*50mm |
| Radome material | ABS |
| Weight | 2.6Kg |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 85 ˚C |
| Storage Temperature | - 40 ˚C ~ + 85 ˚C |
| Operation Humidity | ＜95% |
| Rated Wind Velocity | 36.9m/s |
2. Antenna - S Parameter Test Data

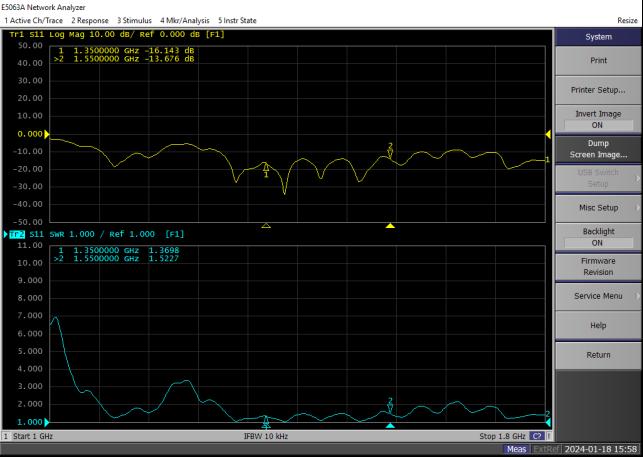

2.1 VSWR
2.2 Total Efficiency & Gain:
| Frequency(MHz) | Gain(dBi) |
| 1350 | 15.7 |
| 1375 | 15.8 |
| 1400 | 15.8 |
| 1425 | 15.5 |
| 1450 | 15.5 |
| 1475 | 15.3 |
| 1500 | 15.5 |
| 1525 | 15.2 |
| 1550 | 15.5 |

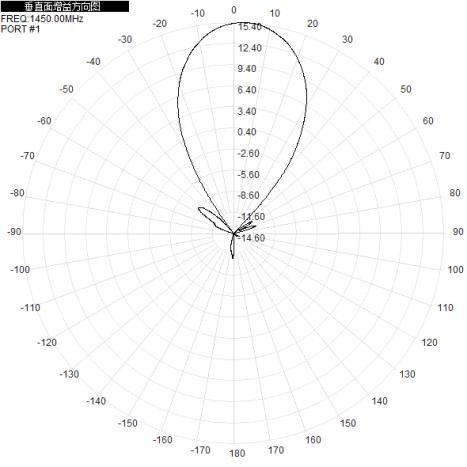

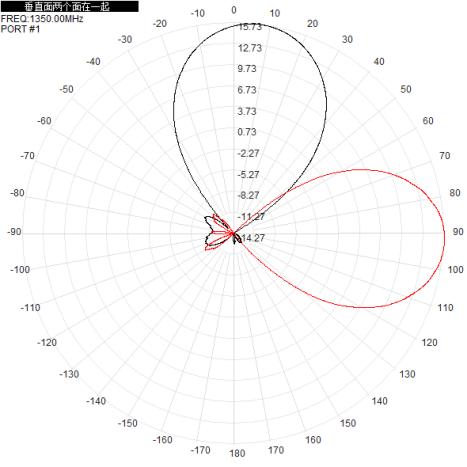

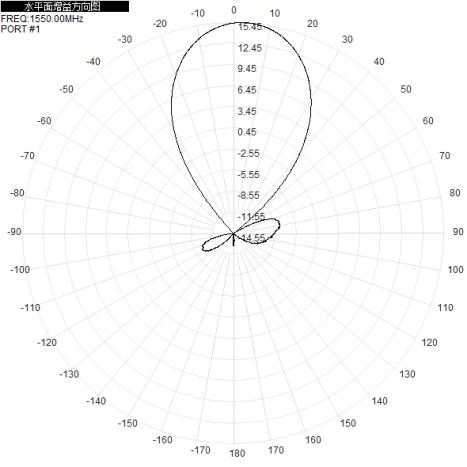

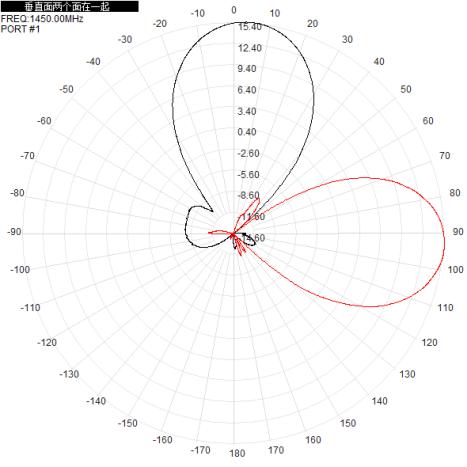

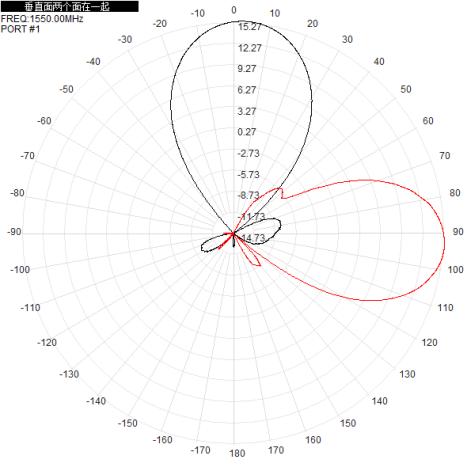

2.3 Radiation Pattern
| Port1 | 2D-Horizontal | 2D-Vertical | Horizontal & Vertical |
| 1350MHz |  |
 |
 |
| 1450MHz |  |
 |
 |
| 1550MHz |  |
 |
 |
