6-7G 6250-6750M 14dbi Outdoor Directional Antenna Single Polarization
Price:
Negotiable
MOQ:
10
Delivery Time:
15 days
Brand:
Leenz
Product Description
1. Specification
| A. Electrical Characteristics | |
| Frequency | 6250-6750MHz |
| S.W.R. | <= 2.0 |
| Antenna Gain | 14dBi |
| Polarization | V |
| Horizontal Beamwidth | 45±5° |
| Vertical Beamwidth | 30±5° |
| F/B | >17dB |
| Impedance | 50Ohm |
| Max. Power | 50W |
| B. Material & Mechanical Characteristics | |
| Connector Type | N Female |
| Dimension | 97*97*23mm |
| Radome material | ABS |
| Weight | 0.25Kg |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 85 ˚C |
| Storage Temperature | - 40 ˚C ~ + 85 ˚C |
| Operation Humidity | ＜95% |
| Rated Wind Velocity | 36.9m/s |
2. Antenna - S Parameter Test Data

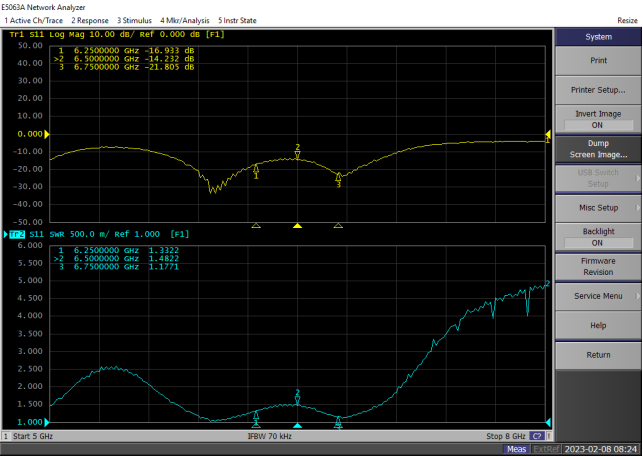

2.1 VSWR
2.2 Total Efficiency & Gain:
|
Frequency(MHz) |
Gain(dBi) |
|
6250 |
13.1 |
|
6300 |
13.5 |
|
6350 |
13.7 |
|
6400 |
13.6 |
|
6450 |
14.0 |
|
6500 |
14.1 |
|
6550 |
14.1 |
|
6600 |
13.9 |
|
6650 |
14.1 |
|
6700 |
14.0 |
|
6750 |
13.5 |
2.3 Radiation Pattern
| Port1 | 2D-Horizontal | 2D-Vertical | Horizontal & Vertical |

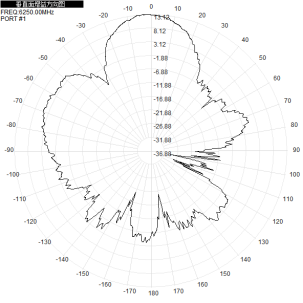

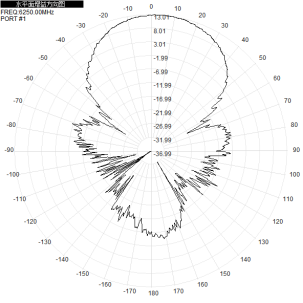

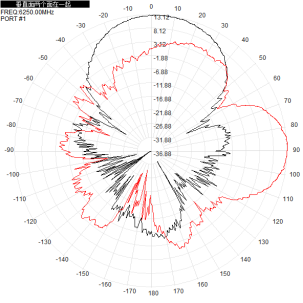

| 6250MHz |  |
 |
 |

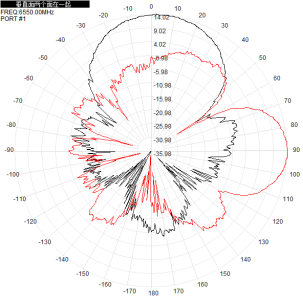

| 6500MHz |  |
 |
 |

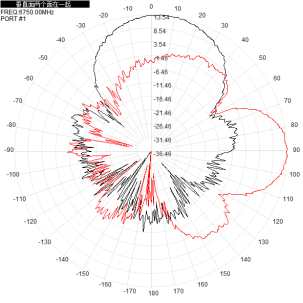

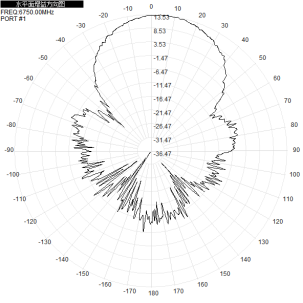

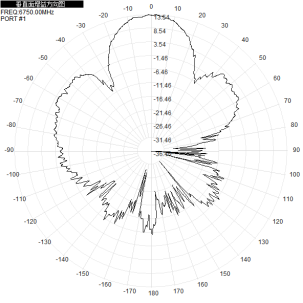

| 6750MHz |  |
 |
 |
