UWB CH2 3.7-4.2G 37700-4200M 10dbi Single Polarization Directional Antenna
Price:
Negotiable
MOQ:
10
Delivery Time:
15 days
Brand:
Leenz
Product Description
1. Specification
| A. Electrical Characteristics | |
| Frequency | 3700-4200MHz |
| S.W.R. | <= 2.0 |
| Antenna Gain | 10dBi |
| Polarization | Vertical |
| Horizontal Beamwidth | 70±5° |
| Vertical Beamwidth | 65±10 |
| F/B | >16dB |
| Impedance | 50Ohm |
| Max. Power | 50W |
| B. Material & Mechanical Characteristics | |
| Connector Type |
N Female connector |
| Dimension | 97*97*23mm |
| Radome material | ABS |
| Weight | 0.15Kg |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 85 ˚C |
| Storage Temperature | - 40 ˚C ~ + 85 ˚C |
| Operation Humidity | ＜95% |
| Rated Wind Velocity | 36.9m/s |
2. Antenna - S Parameter Test Data

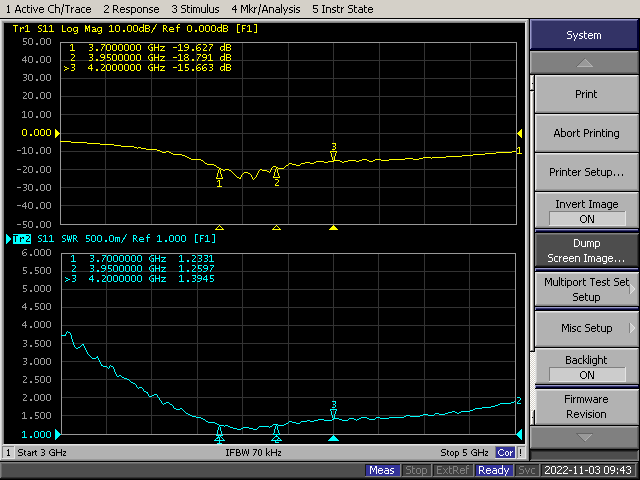

2.1 VSWR
2.2 Total Efficiency & Gain:
|
Frequency(MHz) |
Gain(dBi) |
|
3700 |
9.8 |
|
3750 |
9.7 |
|
3800 |
9.8 |
|
3850 |
9.9 |
|
3900 |
9.9 |
|
3950 |
9.9 |
|
4000 |
9.6 |
|
4050 |
9.8 |
|
4100 |
9.6 |
|
4150 |
9.3 |
|
4200 |
9.0 |
2.3 Radiation Pattern
| Port1 | 2D-Horizontal | 2D-Vertical | Horizontal & Vertical |

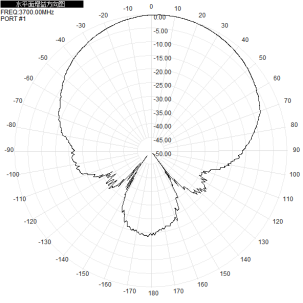

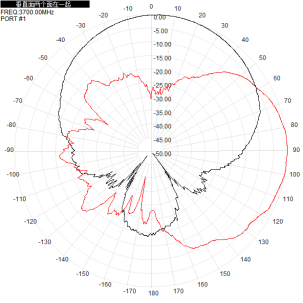

| 3700MHz |  |
 |
 |

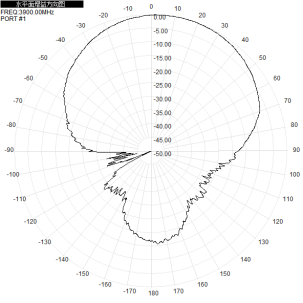

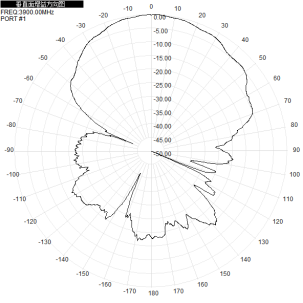

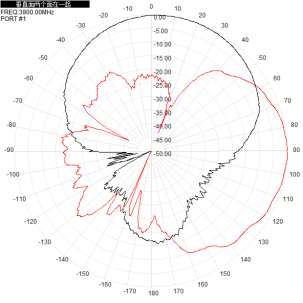

| 3900MHz |  |
 |
 |

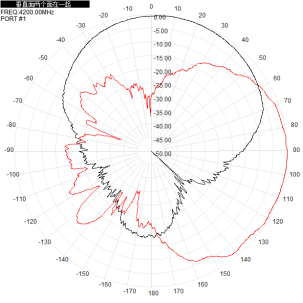

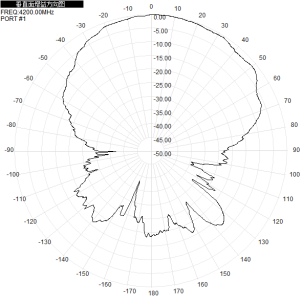

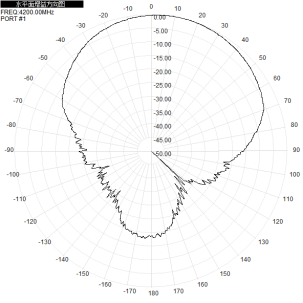

| 4200MHz |  |
 |
 |
