2.4G 5.8G 4dBi Wifi Omni Fiberglass Antenna 20x160mm
Price:
Negotiable
MOQ:
10
Delivery Time:
15 days
Brand:
Leenz
Product Description
1. Specification
A. Electrical Characteristics | ||
| Frequency | 2400-2500/5150-5850MHz | |
| VSWR | < 2.0 | |
| Efficiency | ≈70% | |
| Peak Gain | 4dBi | |
| Impedance | 50 Ohm | |
| Polarization | Linear | |
| Horizontal Beamwidth | 360° | |
| Vertical Beamwidth | 60±10° | |
| T90(H) roundness | ±3 | |
| Max Power | 50W | |
| B. Material & Mechanical | ||
| Connector Type | N-JW | |
| Dimension | Φ20*160±3mm | |
| Weight | 0.11Kg | |
| Radome material | Fiberglass (Grey) | |
C. Environmental | ||
| Operation Temperature | - 45˚C ~ +85 ˚C | |
| Storage Temperature | - 45˚C ~ +85 ˚C | |
| Rated Wind Velocity | 36.9m/s | |
| Lighting Protection | Dc grounding | |
2. Antenna - S Parameter Test Data

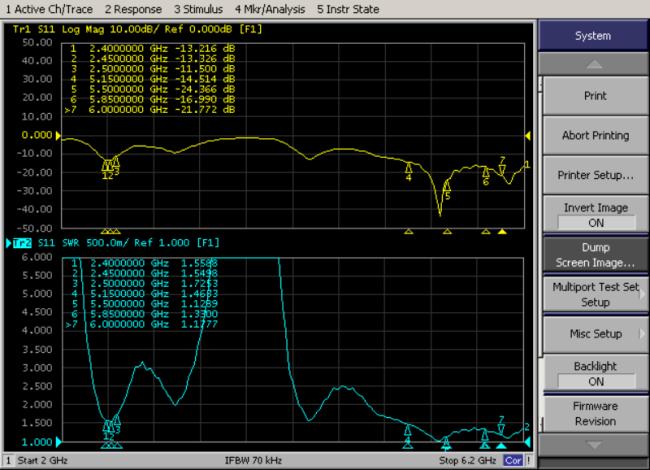

2.1 VSWR
2.2 Total Efficiency & Gain:
| Frequency(MHz) | 2400 | 2410 | 2420 | 2430 | 2440 | 2450 | 2460 | 2470 | 2480 | 2490 | 2500 |
| Gain (dBi) | 3.4 | 3.6 | 3.7 | 3.9 | 4.1 | 3.9 | 4.0 | 3.9 | 4.0 | 3.8 | 3.8 |
| Efficiency (%) | 61.4 | 63.3 | 65.7 | 68.7 | 72.2 | 71.6 | 74.8 | 75.5 | 77.6 | 74.6 | 77.0 |
| Frequency(MHz) | 5150 | 5200 | 5250 | 5300 | 5350 | 5400 | 5450 | 5500 | 5550 | 5600 | 5650 | 5700 | 5750 | 5800 | 5850 |
| Gain (dBi) | 3.2 | 2.7 | 2.2 | 2.2 | 1.9 | 2.5 | 2.2 | 2.7 | 2.5 | 2.7 | 2.9 | 2.9 | 3.0 | 3.6 | 3.4 |
| Efficiency (%) | 88.6 | 82.9 | 80.3 | 81.5 | 74.4 | 80.6 | 73.2 | 80.2 | 74.4 | 77.4 | 80.8 | 78.2 | 76.9 | 87.9 | 81.3 |
2.3 Radiation Pattern
| 3D | 2D-Horizontal | 2D-Vertical | |
| 2400MHz |  |  |  |
| 2450MHz |  |  |  |
| 2500MHz |  |  |  |
| 3D | 2D-Horizontal | 2D-Vertical | |
| 5150MHz |  |  |  |
| 5550MHz |  |  |  |
| 5850MHz |  |  |  |
