Flat Panel Directional Wifi Antenna Outdoor Dual Band 2.4G 5.8G 12dbi Antenna 190x190x25mm
Price:
Negotiable
MOQ:
10
Delivery Time:
15 days
Brand:
Leenz
Product Description
1. Specification
| A. Electrical Characteristics | |
| Port | / |
| Frequency | 2400-2500/5150-5850MHz |
| S.W.R. | <= 2.0 |
| Antenna Gain | 12dBi |
| Polarization | Vertical |
| Horizontal Beamwidth | 50±10° |
| Vertical Beamwidth | 30±10° |
| F/B | >20dB |
| Impedance | 50Ohm |
| Max. Power | 50W |
| B. Material & Mechanical Characteristics | |
| Connector Type | 2*N -K |
| Dimension | 190*190*25mm |
| Radome material | ABS |
| Mount Pole | ∅30-∅50 |
| Weight | 0.7Kg |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 85 ˚C |
| Storage Temperature | - 40 ˚C ~ + 85 ˚C |
| Operation Humidity | ＜95% |
| Rated Wind Velocity | 36.9m/s |
2. Antenna - S Parameter Test Data

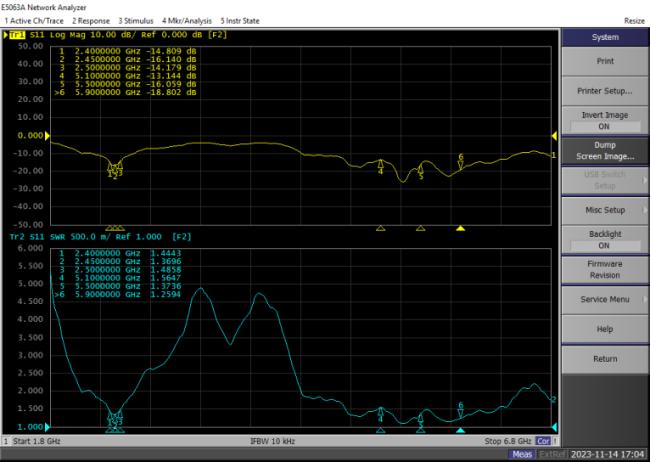

2.1 VSWR
Port1
Port2
2.2 Total Efficiency & Gain:
| Port 1 | Port 2 | |||
| Frequency(MHz) | Gain(dBi) | Frequency(MHz) | Gain(dBi) | |
| 2400 | 9.2 | 2400 | 9.0 | |
| 2410 | 9.3 | 2410 | 9.0 | |
| 2420 | 9.5 | 2420 | 9.2 | |
| 2430 | 9.5 | 2430 | 9.4 | |
| 2440 | 9.6 | 2440 | 9.5 | |
| 2450 | 9.7 | 2450 | 9.6 | |
| 2460 | 9.8 | 2460 | 9.7 | |
| 2470 | 9.8 | 2470 | 9.9 | |
| 2480 | 9.7 | 2480 | 9.8 | |
| 2490 | 9.7 | 2490 | 9.9 | |
| 2500 | 9.8 | 2500 | 9.9 | |
| 5100 | 11.1 | 5100 | 11.2 | |
| 5150 | 11.3 | 5150 | 11.3 | |
| 5200 | 11.2 | 5200 | 11.3 | |
| 5250 | 10.8 | 5250 | 11.0 | |
| 5300 | 11.3 | 5300 | 11.2 | |
| 5350 | 11.2 | 5350 | 11.3 | |
| 5400 | 11.1 | 5400 | 11.3 | |
| 5450 | 11.5 | 5450 | 11.5 | |
| 5500 | 11.8 | 5500 | 11.7 | |
| 5550 | 12.0 | 5550 | 11.9 | |
| 5600 | 12.6 | 5600 | 12.4 | |
| 5650 | 12.7 | 5650 | 12.5 | |
| 5700 | 12.6 | 5700 | 12.5 | |
| 5750 | 12.5 | 5750 | 12.3 | |
| 5800 | 12.2 | 5800 | 12.0 | |
| 5850 | 12.6 | 5850 | 12.5 | |
| 5900 | 12.5 | 5900 | 12.4 | |
2.3 Radiation Pattern
| Port1 | 2D-Horizontal | 2D-Vertical | Horizontal & Vertical |
| 2400MHz |  |
 |
 |
| 2450MHz |  |
 |
 |
| 2500MHz |  |
 |
 |
| 2D-Horizontal | 2D-Vertical | Horizontal & Vertical | |
| 5180MHz |  |
 |
 |
| 5250MHz |  |
 |
 |
| 5850MHz |  |
 |
 |
