SMA Female 300-1500M Handheld Device Soft Antenna
Price:
Negotiable
MOQ:
10
Delivery Time:
15 days
Brand:
Leenz
Product Description
1. Specification
| A. Electrical Characteristics | |
| Frequency | 300-1500MHz |
| Impedance | 50 Ohm |
| S.W.R. | <2.0 |
| Gain | 1dBi |
| Polarization | Linear |
| Horizontal Beamwidth | 360° |
| Vertical Beamwidth | 17-76° |
| Max Power | 50W |
| B. Material & Mechanical Characteristics | |
| Connector Type | SMA connector |
| Dimension | Φ15*300mm |
| Weight | 0.05Kg |
| Antenna material | Copper Rod |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 80 ˚C |
| Storage Temperature | - 40 ˚C ~ + 80 ˚C |
2. Antenna - S Parameter Test Data

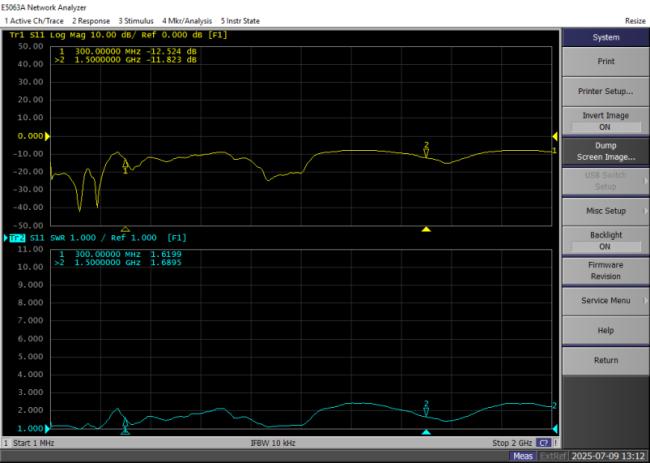

2.1 VSWR
2.2 Total Efficiency & Gain:
| 频率(MHz) | 增益(dBi) | 效率(%) |
| 300 | -3.3 | 21.4 |
| 350 | -2.8 | 21.7 |
| 400 | -1.6 | 30.6 |
| 450 | -1.7 | 32.4 |
| 500 | -2.0 | 32.2 |
| 550 | -3.8 | 24.9 |
| 600 | -2.6 | 27.3 |
| 650 | -2.6 | 24.6 |
| 700 | -1.4 | 23.8 |
| 750 | 0.8 | 33.0 |
| 800 | 1.3 | 36.1 |
| 850 | 1.3 | 42.5 |
| 900 | 0.3 | 39.4 |
| 950 | 0.8 | 39.0 |
| 1000 | 1.4 | 41.0 |
| 1050 | 1.4 | 44.6 |
| 1100 | 0.4 | 46.8 |
| 1150 | -0.2 | 37.8 |
| 1200 | -3.5 | 16.5 |
| 1250 | -3.5 | 16.1 |
| 1300 | -3.4 | 13.1 |
| 1350 | -4.3 | 12.0 |
| 1400 | -2.4 | 17.4 |
| 1450 | -1.5 | 21.2 |
| 1500 | -1.2 | 27.1 |

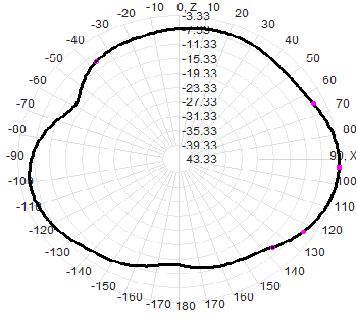

2.3 Radiation Pattern
| 3D | 2D-Horizontal | 2D-Vertical | |
| 300MHz |  |
 |
 |
| 900MHz |  |
 |
 |
| 1500MHz |  |
 |
 |
