N female 1.4G 1420-1450M 7dbi Omnidirectional Fiberglass Waterproof Antenna 25x1100
Price:
Negotiable
MOQ:
10
Delivery Time:
15 days
Brand:
Leenz
Product Description
2.1G2.4G3.5G5.8G Omnidirectional 150W drone jammer strike pressed FRP waterproof antenna
1. Specification
| A. Electrical Characteristics | |
| Frequency | 1420-1450MHz(Customizable others) |
| Impedance | 50 Ohm |
| S.W.R. | <2.0 |
| Antenna Gain | 7dBi |
| Efficiency | ≈74% |
| Polarization | Linear |
| Horizontal Beamwidth | 360° |
| Vertical Beamwidth | 12±3° |
| Max Power | 100W |
| B. Material & Mechanical Characteristics | |
| Connector Type | N - k |
| Dimension | Φ25*1100mm |
| Colour | white |
| Weight | 0.56Kg |
| Radome material | Fiberglass |
| C. Environmental | |
| Operation Temperature | - 45 ˚C ~ + 85 ˚C |
| Storage Temperature | - 45 ˚C ~ + 85 ˚C |
| Rated Wind Velocity | 36.9m/s |
| Lighting Protection | DC Ground |
2. Antenna - S Parameter Test Data

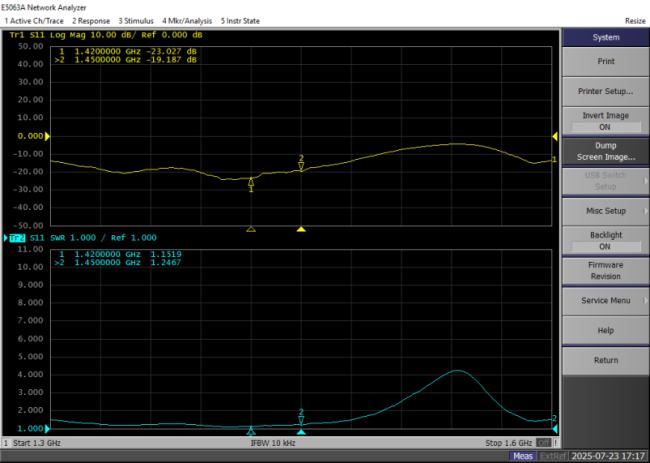

2.1 VSWR
2.2 Total Efficiency & Gain:
| Frequency(MHz) | 1420 | 1425 | 1430 | 1435 | 1440 | 1445 | 1450 |
| Gain (dBi) | 7.3 | 7.4 | 7.4 | 7.4 | 7.3 | 7.2 | 7.2 |
| Efficiency (%) | 74.6 | 75.5 | 74.8 | 74.2 | 73.3 | 70.7 | 70.9 |
2.3 Radiation Pattern
| 3D | 2D-Horizontal | 2D-Vertical | |
| 1420MHz |
|
 |
 |
| 1435MHz |  |
 |
 |
| 1450MHz |  |
 |
 |
