2.4G 8dBi Fiberglass Omnidirectional WiFi Antenna 20x600mm
Price:
Negotiable
MOQ:
10
Delivery Time:
15 days
Brand:
Leenz
Product Description
Omni Antenna Fiber Glass antenna FRP Antenna WIFI Antenna 2.4G Antenna 16x200mm
1. Specification
| A. Electrical Characteristics | |
| Frequency | 2400-2500MHz |
| Impedance | 50 Ohm |
| S.W.R. | <2.0 |
| Antenna Gain | 8dBi |
| Efficiency | ≈83% |
| Polarization | Linear |
| Horizontal Beamwidth | 360° |
| Vertical Beamwidth | 15±5° |
| Max Power | 50W |
| B. Material & Mechanical Characteristics | |
| Connector Type | N -J connector |
| Dimension | Φ20*600mm |
| Weight | 0.23Kg |
| Radome material | Fiberglass |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 80 ˚C |
| Storage Temperature | - 40 ˚C ~ + 80 ˚C |
| Rated Wind Velocity | 36.9m/s |
| Lighting Protection | DC Ground |
2. Antenna - S Parameter Test Data

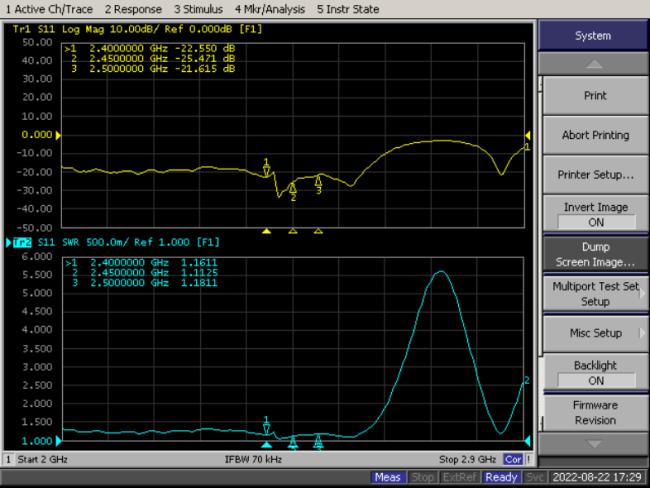

2.1 VSWR

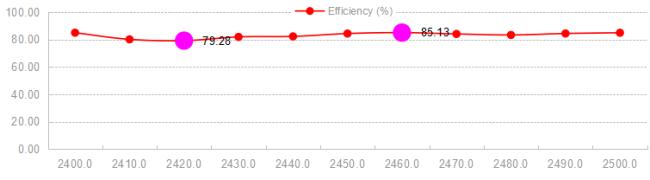

2.2 Total Efficiency & Gain:
| Frequency(MHz) | 2400.0 | 2410.0 | 2420.0 | 2430.0 | 2440.0 | 2450.0 | 2460.0 | 2470.0 | 2480.0 | 2490.0 | 2500.0 |
| Gain (dBi) | 7.86 | 7.64 | 7.46 | 7.87 | 7.80 | 7.87 | 7.86 | 7.73 | 7.67 | 7.68 | 7.74 |
| Efficiency (%) | 85.06 | 80.23 | 79.28 | 81.99 | 82.36 | 84.44 | 85.13 | 84.16 | 83.42 | 84.49 | 85.02 |
2.3 Radiation Pattern
| 3D | 2D-Horizontal | 2D-Vertical | |
| 2400MHz |
|
 |
 |
| 2450MHz |  |
 |
 |
| 2500MHz |  |
 |
 |
