4dBi SMA Male Gooseneck Antenna 2300-2700MHz 50 Ohm
Price:
Negotiable
MOQ:
10
Delivery Time:
15 days
Brand:
Leenz
Product Description
1. Specification
|
A. Electrical Characteristics |
||
| Frequency | 2300-2700MHz | |
| VSWR | < 2.0 | |
| Efficiency | ≈73% | |
| Peak Gain | 4dBi | |
| Impedance | 50 Ohm | |
| Polarization | Linear | |
| Horizontal Beamwidth | 360° | |
| Vertical Beamwidth | 30±5° | |
| T90(H) roundness | ±0.5 | |
| Max Power | 50W | |
| B. Material & Mechanical | ||
| Connector Type | N-J | |
| Dimension | Φ16*350±3mm | |
| Weight | 0.13Kg | |
| Radome material | Fiberglass (Black) | |
|
C. Environmental |
||
| Operation Temperature | - 45˚C ~ +85 ˚C | |
| Storage Temperature | - 45˚C ~ +85 ˚C | |
| Rated Wind Velocity | 36.9m/s | |
| Lighting Protection | Dc grounding | |
2. Antenna - S Parameter Test Data

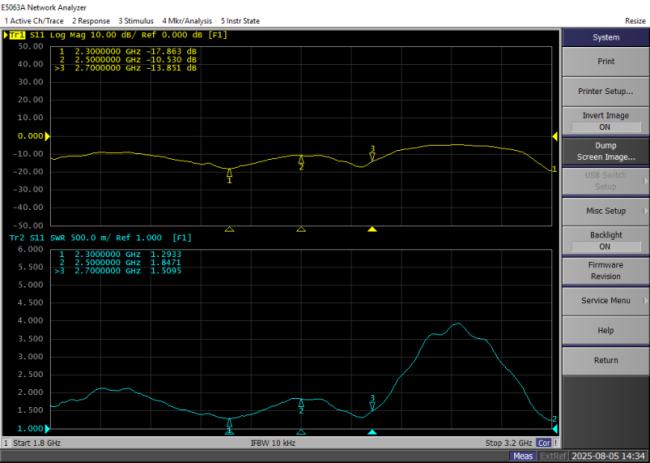

2.1 VSWR
2.2 Total Efficiency & Gain:
| Frequency(MHz) | Gain(dBi) | Efficiency(%) |
| 2300 | 4.2 | 76.8 |
| 2350 | 3.6 | 72.4 |
| 2400 | 3.8 | 72.9 |
| 2450 | 3.9 | 72.7 |
| 2500 | 4.0 | 75.0 |
| 2550 | 3.5 | 68.2 |
| 2600 | 3.9 | 69.6 |
| 2650 | 4.2 | 75.8 |
| 2700 | 3.8 | 72.1 |
2.3 Radiation Pattern
| 3D | 2D-Horizontal | 2D-Vertical | |
| 2300MHz |  |
 |
 |
| 2500MHz |  |
 |
 |
| 2700MHz |  |
 |
 |
