5.8G 4900-5900M 11dBi dual-polarization omnidirectional WIFI antenna 77x465mm
Price:
Negotiable
MOQ:
10
Delivery Time:
15 days
Brand:
Leenz
Product Description
1. Specification
A. Electrical Characteristics | ||
| Frequency | 4900-5900MHz | |
| VSWR | < 2.5 | |
| Efficiency | ≈56% | |
| Peak Gain | 11dBi | |
| Impedance | 50 Ohm | |
| Polarization | H+V | |
| Horizontal Beamwidth | 360° | |
| Vertical Beamwidth | 6-9° | |
| T90(H) roundness | ±4 | |
| Max Power | 50W | |
| B. Material & Mechanical | ||
| Connector Type | N-K*2 | |
| Dimension | Φ77*465±5mm | |
| Weight | 1.9Kg | |
| Radome material | PVC(White) | |
C. Environmental | ||
| Operation Temperature | - 45˚C ~ +85 ˚C | |
| Storage Temperature | - 45˚C ~ +85 ˚C | |
| Rated Wind Velocity | 36.9m/s | |
| Lighting Protection | Dc grounding | |
2. Antenna - S Parameter Test Data

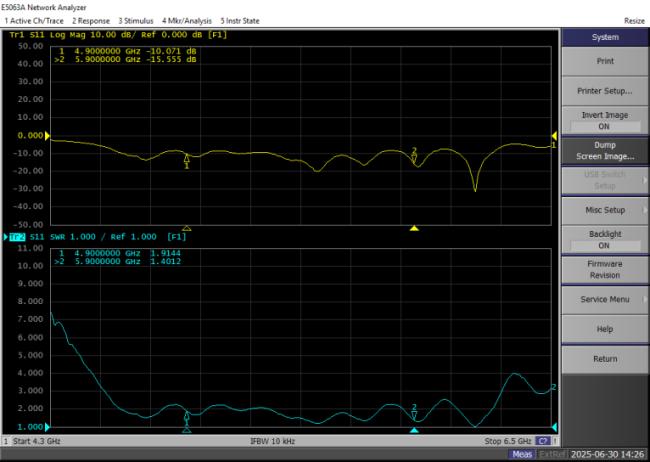

2.1 VSWR
2.2 Total Efficiency & Gain:
| Port 1(H) | Port 2(V) | |||||
| Frequency (MHz) | Gain (dBi) | Efficiency (%) | Frequency (MHz) | Gain (dBi) | Efficiency (%) | |
| 4900 | 9.3 | 51.0 | 4900 | 7.3 | 46.1 | |
| 5000 | 9.4 | 53.9 | 5000 | 8.5 | 57.7 | |
| 5100 | 8.5 | 50.3 | 5100 | 8.2 | 53.3 | |
| 5200 | 9.7 | 53.7 | 5200 | 8.8 | 57.9 | |
| 5300 | 9.6 | 59.3 | 5300 | 9.4 | 61.5 | |
| 5400 | 10.4 | 64.1 | 5400 | 9.0 | 64.6 | |
| 5500 | 11.2 | 67.3 | 5500 | 9.7 | 70.9 | |
| 5600 | 10.8 | 57.0 | 5600 | 8.5 | 57.6 | |
| 5700 | 11.1 | 57.0 | 5700 | 8.8 | 51.0 | |
| 5800 | 9.7 | 46.6 | 5800 | 9.9 | 58.4 | |
| 5900 | 11.0 | 59.4 | 5900 | 9.3 | 52.2 | |
2.3 Radiation Pattern
| 3D | 2D-Horizontal | 2D-Vertical | |||
| 4900MHz |  |  |  | |||
| 5400MHz |  |  |  | |||
| 5900MHz |  |  |  | |||
| 3D | 2D-Horizontal | 2D-Vertical | |||
| 4900MHz |  |  |  | |||
| 5400MHz |  |  |  | |||
| 5900MHz |  |  |  | |||
