2.4G 2400-2500M 8dBi dual-polarization omnidirectional WIFI antenna 72x800mm
Price:
Negotiable
MOQ:
10
Delivery Time:
15 days
Brand:
Leenz
Product Description
1. Specification
A. Electrical Characteristics | ||
| Frequency | 2400-2500MHz | |
| VSWR | < 2.0 | |
| Efficiency | ≈66% | |
| Peak Gain | 8dBi | |
| Impedance | 50 Ohm | |
| Polarization | H+V | |
| Horizontal Beamwidth | 360° | |
| Vertical Beamwidth | 11-15° | |
| T90(H) roundness | ±5 | |
| Max Power | 50W | |
| B. Material & Mechanical | ||
| Connector Type | N-K*2 | |
| Dimension | Φ72*800±5mm | |
| Weight | 2.8Kg | |
| Radome material | Fiberglass(White) | |
C. Environmental | ||
| Operation Temperature | - 45˚C ~ +85 ˚C | |
| Storage Temperature | - 45˚C ~ +85 ˚C | |
| Rated Wind Velocity | 36.9m/s | |
| Lighting Protection | Dc grounding | |
2. Antenna - S Parameter Test Data

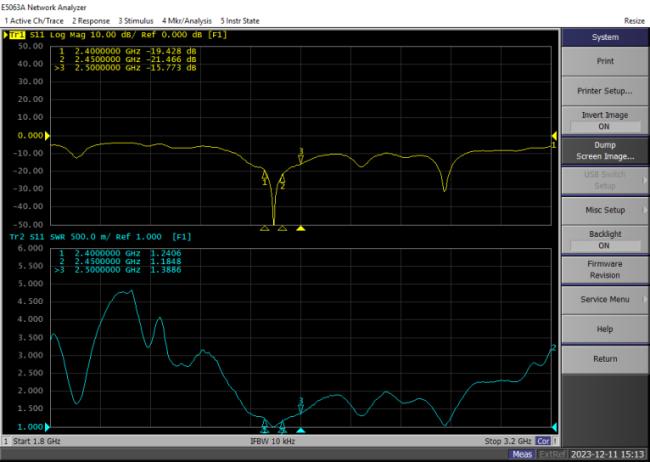

2.1 VSWR
2.2 Total Efficiency & Gain:
| Port 1(H) | Port 2(V) | |||||
| Frequency (MHz) | Gain (dBi) | Efficiency (%) | Frequency (MHz) | Gain (dBi) | Efficiency (%) | |
| 2400 | 6.4 | 68.0 | 2400 | 7.4 | 64.5 | |
| 2410 | 6.3 | 66.8 | 2410 | 8.0 | 64.3 | |
| 2420 | 6.3 | 67.4 | 2420 | 8.6 | 66.4 | |
| 2430 | 6.3 | 68.6 | 2430 | 9.1 | 70.4 | |
| 2440 | 6.0 | 67.4 | 2440 | 9.1 | 71.6 | |
| 2450 | 5.7 | 65.1 | 2450 | 9.1 | 72.6 | |
| 2460 | 5.5 | 65.6 | 2460 | 9.1 | 74.5 | |
| 2470 | 5.3 | 67.4 | 2470 | 8.9 | 76.4 | |
| 2480 | 4.8 | 66.3 | 2480 | 8.5 | 74.7 | |
| 2490 | 4.2 | 63.7 | 2490 | 8.3 | 72.6 | |
| 2500 | 3.6 | 62.4 | 2500 | 8.7 | 73.3 | |
2.3 Radiation Pattern
| 3D | 2D-Horizontal | 2D-Vertical | |||
| 2400MHz |  |  |  | |||
| 2450MHz |  |  |  | |||
| 2500MHz |  |  |  | |||
| 3D | 2D-Horizontal | 2D-Vertical | |||
| 2400MHz |  |  |  | |||
| 2450MHz |  |  |  | |||
| 2500MHz |  |  |  | |||
