2.4G+5.8G 12dbi single-polarization independent interface wifi directional antenna 186x186mm
Price:
Negotiable
MOQ:
10
Delivery Time:
15 days
Brand:
Leenz
Product Description
1. Specification
| A. Electrical Characteristics | ||
| Port | Port 1 | Port 2 |
| Frequency | 2400-2500MHz | 5150-5850MHz |
| S.W.R. | <= 2.0 | <= 2.0 |
| Antenna Gain | 12dBi | 12dBi |
| Polarization | V | V |
| Horizontal Beamwidth | 50±10° | 50±10° |
| Vertical Beamwidth | 30±10° | 30±10° |
| F/B | 21-25dB | 20-27dB |
| Impedance | 50Ohm | 50Ohm |
| Max. Power | 50W | 50W |
| B. Material & Mechanical Characteristics | ||
| Connector Type | 2*N -K | |
| Dimension | 186*186*28mm | |
| Radome material | ABS | |
| Mount Pole | ∅30-∅50 | |
| Weight | 0.Kg | |
| C. Environmental | ||
| Operation Temperature | - 40 ˚C ~ + 85 ˚C | |
| Storage Temperature | - 40 ˚C ~ + 85 ˚C | |
| Operation Humidity | ＜95% | |
| Rated Wind Velocity | 36.9m/s | |
2. Antenna - S Parameter Test Data
2.1 VSWR

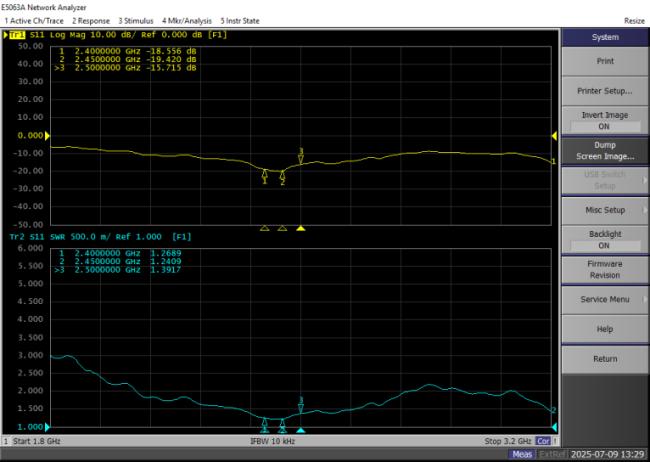

Port1
Port2
2.2 Total Efficiency & Gain:
| Port 1 | Port 2 | |||
| Frequency(MHz) | Gain(dBi) | Frequency(MHz) | Gain(dBi) | |
| 2400 | 11.5 | 5100 | 12.4 | |
| 2410 | 11.5 | 5150 | 12.7 | |
| 2420 | 11.5 | 5200 | 12.6 | |
| 2430 | 11.6 | 5250 | 12.6 | |
| 2440 | 11.6 | 5300 | 12.6 | |
| 2450 | 11.5 | 5350 | 12.4 | |
| 2460 | 11.3 | 5400 | 12.5 | |
| 2470 | 11.4 | 5450 | 12.2 | |
| 2480 | 11.6 | 5500 | 12.8 | |
| 2490 | 11.4 | 5550 | 12.8 | |
| 2500 | 11.5 | 5600 | 12.9 | |
| 5650 | 13.2 | |||
| 5700 | 12.7 | |||
| 5750 | 12.7 | |||
| 5800 | 13.2 | |||
| 5850 | 12.3 | |||
| 5900 | 12.6 | |||
2.3 Radiation Pattern
| Port1 | 2D-Horizontal | 2D-Vertical | Horizontal & Vertical |
| 2400MHz |  |  |  |
| 2450MHz |  |  |  |
| 2500MHz |  |  |  |
| Port2 | 2D-Horizontal | 2D-Vertical | Horizontal & Vertical |
| 5150MHz |  |  |  |
| 5500MHz |  |  |  |
| 5850MHz |  |  |  |
