7700-8300MHz 19dBi UAV Directional Antenna with 50W Max Power and N-K Connector
Price:
Negotiable
MOQ:
10
Delivery Time:
15 days
Brand:
Leenz
Product Description
1. Specification
| A. Electrical Characteristics | |
| Frequency | 7700-8300MHz |
| S.W.R. | <= 2.0 |
| Antenna Gain | 19dBi |
| Polarization | V |
| Horizontal Beamwidth | 14±2° |
| Vertical Beamwidth | 14±2° |
| F/B | ＞20db |
| Impedance | 50Ohm |
| Max. Power | 50W |
| B. Material & Mechanical Characteristics | |
| Connector Type | N -K |
| Dimension | 160*160*23mm |
| Radome material | ABS |
| Mount Pole | ∅30-∅50 |
| Weight | 0.4Kg |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 85 ˚C |
| Storage Temperature | - 40 ˚C ~ + 85 ˚C |
| Operation Humidity | ＜95% |
| Rated Wind Velocity | 36.9m/s |
2. Antenna - S Parameter Test Data

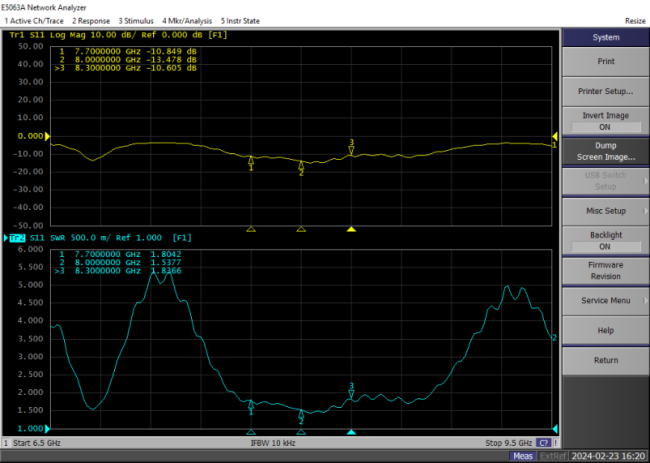

2.1 VSWR
2.2 Total Efficiency & Gain:
|
Frequency(MHz) |
Gain(dBi) |
|
7700 |
19.1 |
|
7750 |
18.8 |
|
7800 |
18.5 |
|
7850 |
19.4 |
|
7900 |
19.0 |
|
7950 |
19.7 |
|
8000 |
19.9 |
|
8050 |
19.9 |
|
8100 |
19.2 |
|
8150 |
20.2 |
|
8200 |
20.0 |
|
8250 |
19.7 |
|
8300 |
20.0 |
2.3 Radiation Pattern
| Port1 | 2D-Horizontal | 2D-Vertical | Horizontal & Vertical |
| 7700MHz |  |
 |
 |
| 8000MHz |  |
 |
 |
| 8300MHz |  |
 |
 |
