2*RPSMA Female 5.8G 5150-5850M Wifi 18dBi Dual Polarized Directional Antenna
Price:
Negotiable
MOQ:
10
Delivery Time:
15 days
Brand:
Leenz
Product Description
2*N female 5.8G 5150-5850M wifi 18dBi dual-polarized directional antenna
1. Specification
| A. Electrical Characteristics | |
| Frequency | 5150-5850MHz |
| S.W.R. | <= 2.0 |
| Antenna Gain | 18dBi |
| Polarization | H+V |
| Horizontal Beamwidth | 18±5° |
| Vertical Beamwidth | 18±5° |
| F/B | >27dB |
| Impedance | 50Ohm |
| Max. Power | 50W |
| B. Material & Mechanical Characteristics | |
| Connector Type | 2*RPSMA Female connector |
| Dimension |
190*190*40mm |
| Radome material | ABS |
| Weight | 1Kg |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 85 ˚C |
| Storage Temperature | - 40 ˚C ~ + 85 ˚C |
| Operation Humidity | ＜95% |
| Rated Wind Velocity | 36.9m/s |
2. Antenna - S Parameter Test Data

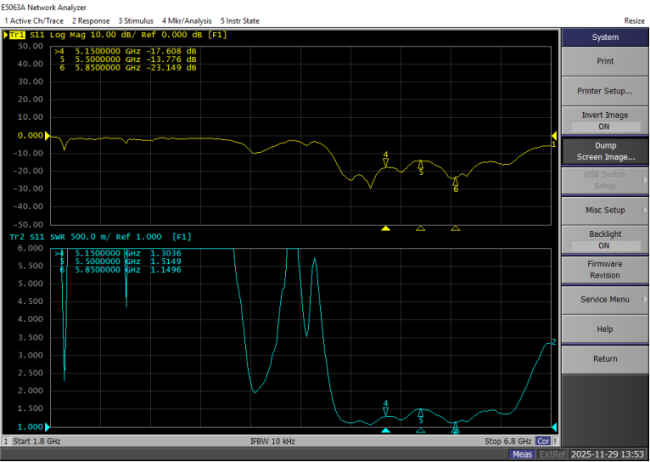

2.1 VSWR
Port 1 H
Port 2 V
2.2 Total Efficiency & Gain:
|
Port 1 |
|
Port 2 |
||
|
Frequency(MHz) |
Gain(dBi) |
Frequency(MHz) |
Gain(dBi) |
|
|
5150 |
19.9 |
5150 |
20.2 |
|
|
5200 |
19.5 |
5200 |
20.1 |
|
|
5250 |
19.5 |
5250 |
20.0 |
|
|
5300 |
19.6 |
5300 |
20.1 |
|
|
5350 |
19.4 |
5350 |
19.9 |
|
|
5400 |
19.8 |
5400 |
20.3 |
|
|
5450 |
18.9 |
5450 |
19.9 |
|
|
5500 |
19.1 |
5500 |
20.1 |
|
|
5550 |
19.1 |
5550 |
20.0 |
|
|
5600 |
19.1 |
5600 |
19.9 |
|
|
5650 |
19.3 |
5650 |
20.0 |
|
|
5700 |
19.1 |
5700 |
19.8 |
|
|
5750 |
19.2 |
5750 |
19.5 |
|
|
5800 |
20.1 |
5800 |
19.9 |
|
|
5850 |
19.7 |
5850 |
19.4 |
|
| Port1 | 2D-Horizontal | 2D-Vertical | Horizontal & Vertical |

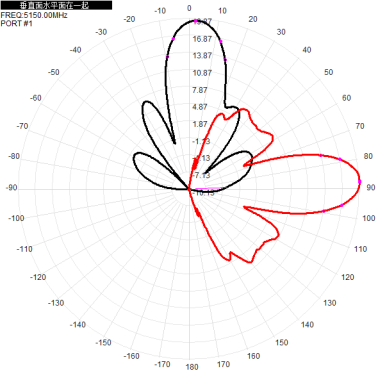

| 5150MHz |  |
 |
 |

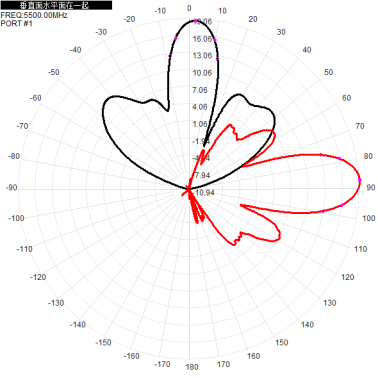

| 5500MHz |  |
 |
 |

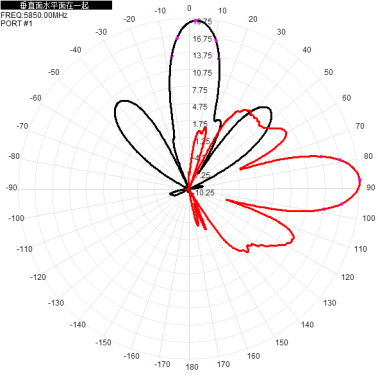

| 5850MHz |  |
 |
 |
