SMA/TNC male 1410-1530M 2dBi Unmanned Aerial Vehicle Interference Gooseneck Antenna
Price:
Negotiable
MOQ:
10
Delivery Time:
15 days
Brand:
Leenz
Product Description
1. Specification
|
A. Electrical Characteristics |
||
| Frequency | 1410-1530MHz | |
| VSWR | < 2.0 | |
| Efficiency | ≈73% | |
| Peak Gain | 2dBi | |
| Impedance | 50 Ohm | |
| Polarization | Linear | |
| Horizontal Beamwidth | 360° | |
| Vertical Beamwidth | 24-67° | |
| T90(H) roundness | ±0.5 | |
| Max Power | 50W | |
| B. Material & Mechanical | ||
| Connector Type | TNC-J or SMA-J | |
| Dimension | Φ16*300±5mm | |
| Weight | 0.11Kg | |
| Radome material | Fiberglass (Black) | |
|
C. Environmental |
||
| Operation Temperature | - 45˚C ~ +85 ˚C | |
| Storage Temperature | - 45˚C ~ +85 ˚C | |
| Rated Wind Velocity | 36.9m/s | |
| Lighting Protection | Dc grounding | |
2. Antenna - S Parameter Test Data

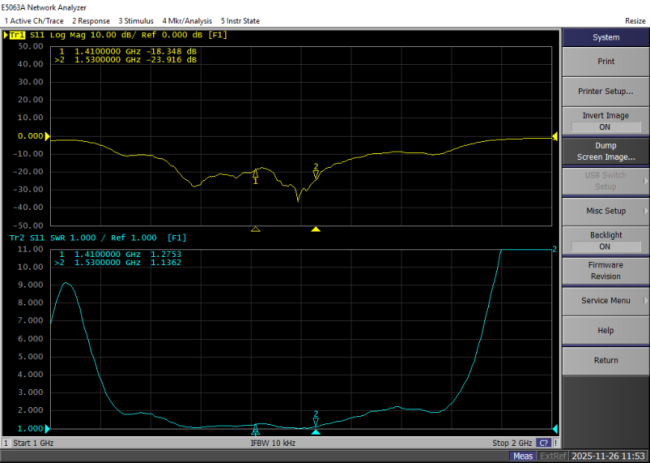

2.1 VSWR
2.2 Total Efficiency & Gain:
|
Frequency(MHz) |
Gain(dBi) |
Efficiency(%) |
|
1410 |
3.0 |
74.0 |
|
1430 |
2.4 |
76.0 |
|
1450 |
2.2 |
72.3 |
|
1470 |
2.5 |
72.2 |
|
1490 |
1.8 |
69.5 |
|
1510 |
1.9 |
73.7 |
|
1530 |
2.0 |
75.3 |

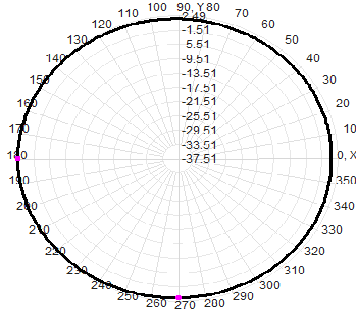

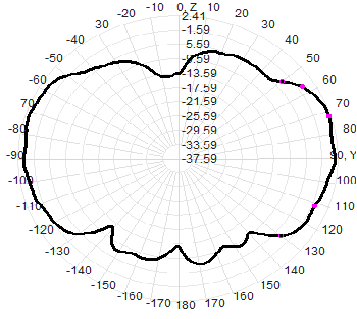

2.3 Radiation Pattern
| 3D | 2D-Horizontal | 2D-Vertical | |
| 1410MHz |  |
 |
 |
| 1470MHz |  |
 |
 |
| 1530MHz |  |
 |
 |
