Multi-band GNSS Antenna with 35dBi LNA Gain and IP67 Waterproof for UAV and Portable Devices
Price:
Negotiable
MOQ:
10
Delivery Time:
15 days
Brand:
Leenz
Product Description
It is suitable for occasions where there are control requirements for volume and weight, such as small drones, micro RTKS, sub-meter handheld devices/tablets and other portable devices
1. Specification
| A. Electrical Characteristics | ||
| Frequency | 1197-1278MHz; 1559-1606MHz | |
| Supported Positioning signal bands |
GPS: L1/L2 BDS: B1/B2/B3 GLONASS: G1/G2 Galileo: E1/E5b |
|
| Peak Gain | ≥2dBi | |
| Impedance | 50Ohm | |
| Polarization | RHCP | |
| Axial Ratio | ≤1.5 dB | |
| Azimuth Coverage | 360° | |
| B. LNA and Filter Electrical Properties | ||
| LNA Gain | 35dB(Typ.@25℃) | |
| Noise Figure | ≤1.5dB@25℃,Typ.(Pre-filtered) | |
| Output VSWR | ≤2.0 : 1Typ. 2.5 : 1 Max | |
| Operation Voltage | 3-16 V DC | |
| Operation Current | ≤45mA | |
| C. Material & Mechanical Characteristics | ||
| Connector Type | SMA -J | |
| Dimension | Φ28x60mm | |
| Radome material | PC+ABS | |
| Waterproof grade | IP67 | |
| Weight | 0.015Kg | |
| C. Environmental | ||
| Operation Temperature | - 40 ˚C ~ + 85 ˚C | |
| Storage Temperature | - 40 ˚C ~ + 85 ˚C | |
| Humidity | ≤95% | |
2. Antenna - S Parameter Test Data

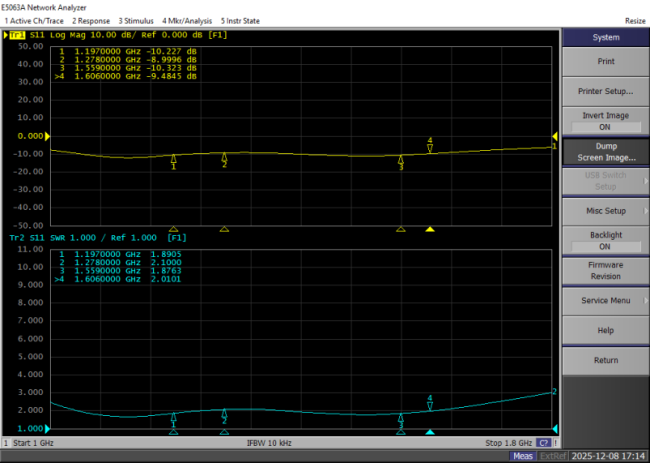

2.1 VSWR
2.2 LNA Gain:
|
Frequency(MHz) |
Gain(dBi) |
|
Frequency(MHz) |
Gain(dBi) |
|
1195 |
33.4 |
1555 |
32.1 |
|
|
1200 |
33.4 |
1560 |
31.9 |
|
|
1205 |
33.8 |
1565 |
31.7 |
|
|
1210 |
34.5 |
1570 |
31.8 |
|
|
1215 |
35.3 |
1575 |
31.9 |
|
|
1220 |
35.8 |
1580 |
32.6 |
|
|
1225 |
36.3 |
1585 |
33.4 |
|
|
1230 |
36.5 |
1590 |
33.0 |
|
|
1235 |
36.4 |
1595 |
31.5 |
|
|
1240 |
35.9 |
1600 |
30.8 |
|
|
1245 |
35.1 |
1605 |
29.6 |
|
|
1250 |
34.1 |
1610 |
29.3 |
|
|
1255 |
33.5 |
|
|
|
|
1260 |
33.2 |
|
|
|
|
1265 |
33.4 |
|
|
|
|
1270 |
33.7 |
|
|
|
|
1275 |
33.0 |
|
|
|
|
1280 |
30.3 |
|
|
|
2.3 Radiation Pattern
| 3D | 2D-Horizontal | 2D-Vertical | |
| 1195MHz |  |
 |
 |
| 1235MHz |  |
 |
 |
| 1280MHz |  |
 |
 |
| 3D | 2D-Horizontal | 2D-Vertical | |
| 1555MHz |  |
 |
 |
| 1585MHz |  |
 |
 |
| 1610MHz |  |
 |
 |
