400-6000MHz 7dBi Gain Waterproof Microstrip Directional Antenna for UAV Measurement and Control
Price:
Negotiable
MOQ:
10
Delivery Time:
15 days
Brand:
Leenz
Product Description
1. Specification
| A. Electrical Characteristics | |
| Frequency | 400-6000MHz |
| S.W.R. | <=3.0 |
| Antenna Gain | 7dBi |
| Polarization | Vertical |
| Horizontal Beamwidth | 80-220° |
| Vertical Beamwidth | 51-95° |
| Impedance | 50Ohm |
| Max. Power | 50W |
| B. Material & Mechanical Characteristics | |
| Connector Type | SMA-J |
| Cable Type | 50-3 Type Cable |
| Dimension | 205*250*1.5mm |
| Weight | 0.17Kg |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 85 ˚C |
| Storage Temperature | - 40 ˚C ~ + 85 ˚C |
| Operation Humidity | ＜95% |
| Rated Wind Velocity | 36.9m/s |
2. Antenna - S Parameter Test Data

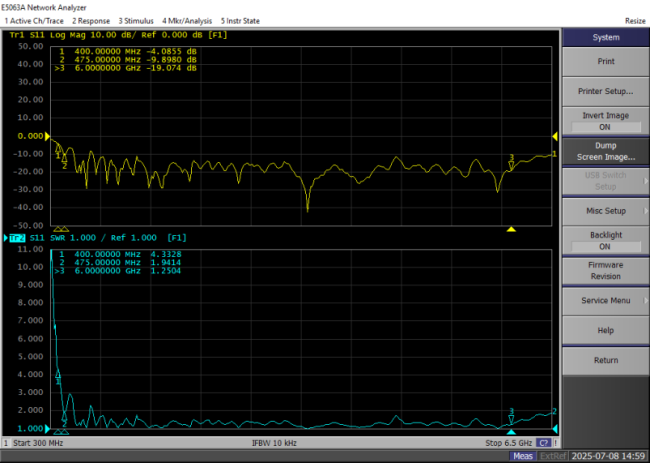

2.1 VSWR
2.2 Total Efficiency & Gain:
|
Frequency(MHz) |
Gain(dBi) |
|
Frequency(MHz) |
Gain(dBi) |
|
400 |
4.6 |
3300 |
6.2 |
|
|
500 |
3.4 |
3400 |
6.9 |
|
|
600 |
4.2 |
3500 |
7.4 |
|
|
700 |
3.2 |
3600 |
7.0 |
|
|
800 |
4.7 |
3700 |
6.7 |
|
|
900 |
5.4 |
3800 |
6.5 |
|
|
1000 |
6.0 |
3900 |
6.6 |
|
|
1100 |
5.8 |
4000 |
7.2 |
|
|
1200 |
5.8 |
4100 |
6.4 |
|
|
1300 |
5.4 |
4200 |
7.0 |
|
|
1400 |
5.3 |
4300 |
6.8 |
|
|
1500 |
6.2 |
4400 |
7.1 |
|
|
1600 |
6.1 |
4500 |
7.4 |
|
|
1700 |
6.6 |
4600 |
6.2 |
|
|
1800 |
6.2 |
4700 |
6.6 |
|
|
1900 |
6.1 |
4800 |
6.6 |
|
|
2000 |
5.6 |
4900 |
7.0 |
|
|
2100 |
5.6 |
5000 |
7.1 |
|
|
2200 |
5.1 |
5100 |
7.4 |
|
|
2300 |
5.1 |
5200 |
7.3 |
|
|
2400 |
6.0 |
5300 |
6.7 |
|
|
2500 |
6.0 |
5400 |
6.7 |
|
|
2600 |
4.8 |
5500 |
6.4 |
|
|
2700 |
5.3 |
5600 |
6.1 |
|
|
2800 |
5.5 |
5700 |
7.2 |
|
|
2900 |
5.5 |
5800 |
7.9 |
|
|
3000 |
6.2 |
5900 |
7.3 |
|
|
3100 |
6.2 |
6000 |
6.6 |
|
|
3200 |
5.6 |
|
|
2.3 Radiation Pattern
| 2D-Horizontal | 2D-Vertical | Horizontal & Vertical | |
| 400MHz |  |
 |
 |
| 800MHz |  |
 |
 |
| 900MHz |  |
 |
 |
| 3D | 2D-Horizontal | 2D-Vertical | |
| 2500MHz |  |
 |
 |
| 3500MHz |  |
 |
 |
| 4500MHz |  |
 |
 |
| 5500MHz |  |
 |
 |
| 7000MHz |  |
 |
 |
