2.4G single-polarization high-gain 15dbi flat-panel directional antenna, suitable for wireless WIFI, Bluetooth and unmanned aerial vehicle flight control operation. Dimensions: 190*19*40mm, capable
Price:
Negotiable
MOQ:
2
Delivery Time:
15 days
Brand:
Leenz
Product Description
2.4G single-polarization high-gain 15dbi flat-panel directional antenna, suitable for wireless WIFI, Bluetooth and unmanned aerial vehicle flight control operation. Dimensions: 190*19*40mm, capable of supporting a transmission power of 300w.
1. Specification
| A. Electrical Characteristics | |
| Frequency | 2400-2500MHz |
| S.W.R. | <= 2.0 |
| Antenna Gain | 15dBi |
| Polarization | V |
| Horizontal Beamwidth | 28±3° |
| Vertical Beamwidth | 28±3° |
| F/B | >26dB |
| Impedance | 50Ohm |
| Max. Power | 300W |
| B. Material & Mechanical Characteristics | |
| Connector Type | N-K connector |
| Dimension | 190*190*40mm |
| Radome material | ABS |
| Weight | 0.52Kg |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 85 ˚C |
| Storage Temperature | - 40 ˚C ~ + 85 ˚C |
| Operation Humidity | ＜95% |
| Rated Wind Velocity | 36.9m/s |
2. Antenna - S Parameter Test Data

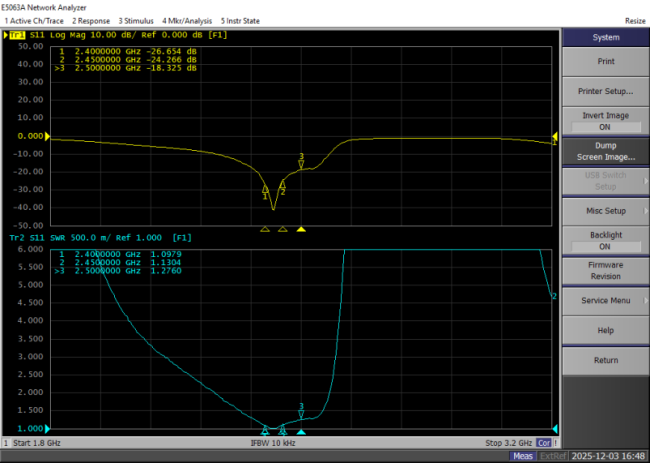

2.1 VSWR
2.2 Total Efficiency & Gain:
|
Frequency(MHz) |
Gain(dBi) |
|
2400 |
14.7 |
|
2410 |
14.8 |
|
2420 |
14.8 |
|
2430 |
14.8 |
|
2440 |
14.9 |
|
2450 |
14.8 |
|
2460 |
14.9 |
|
2470 |
14.8 |
|
2480 |
14.9 |
|
2490 |
14.7 |
|
2500 |
14.8 |

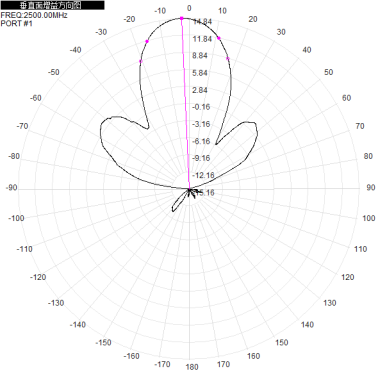

2.3 Radiation Pattern

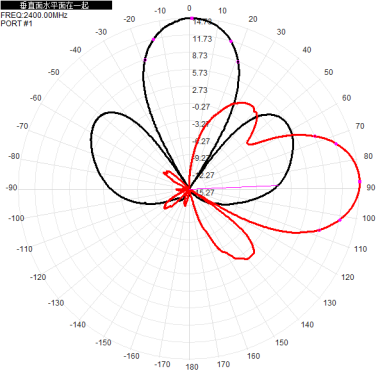

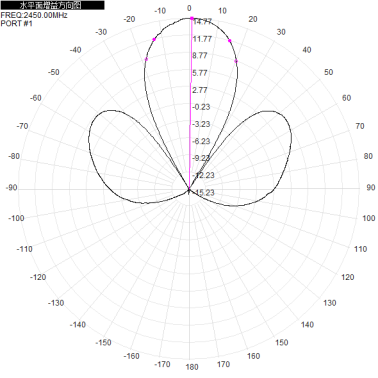

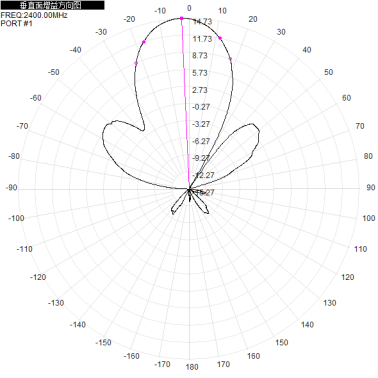

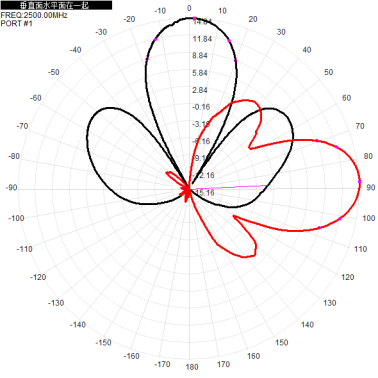

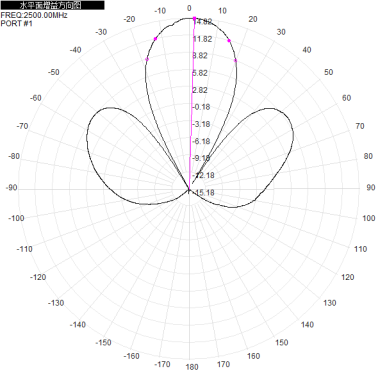

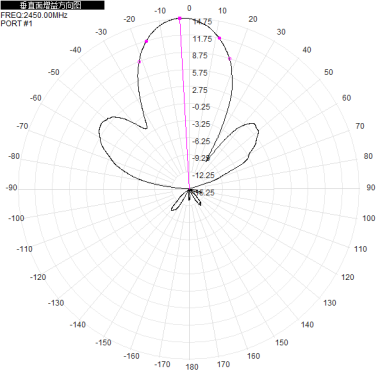

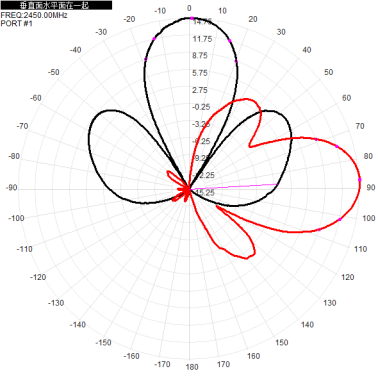

| Port1 | 2D-Horizontal | 2D-Vertical | Horizontal & Vertical |
| 2400MHz |  |
 |
 |
| 2450MHz |  |
 |
 |
| 2500MHz |  |
 |
 |
