5.8G high-gain 20dbi single-polarized flat-panel directional antenna, which can be used in wifi, unmanned aerial vehicle (UAV) video transmission, UAV interference and other fields
Price:
Negotiable
MOQ:
2
Delivery Time:
15 days
Brand:
Leenz
Product Description
5.8g high-gain 20dbi single-polarized flat-panel directional antenna, which can be used in wifi, unmanned aerial vehicle (UAV) video transmission, UAV interference and other fields
1. Specification
| A. Electrical Characteristics | |
| Frequency | 5150-5850MHz |
| S.W.R. | <= 2.0 |
| Antenna Gain | 20dBi |
| Polarization | V |
| Horizontal Beamwidth | 15° |
| Vertical Beamwidth | 15° |
| F/B | >25dB |
| Impedance | 50Ohm |
| Max. Power | 200W |
| B. Material & Mechanical Characteristics | |
| Connector Type |
N Female connector |
| Dimension | 220*220*25mm |
| Radome material | ABS |
| Weight | 0.55Kg |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 85 ˚C |
| Storage Temperature | - 40 ˚C ~ + 85 ˚C |
| Operation Humidity | ＜95% |
| Rated Wind Velocity | 36.9m/s |
2. Antenna - S Parameter Test Data
2.1 VSWR
2.2 Total Efficiency & Gain:
|
Frequency(MHz) |
Gain(dBi) |
|
5150 |
21.6 |
|
5200 |
21.1 |
|
5250 |
21.1 |
|
5300 |
21.2 |
|
5350 |
21.4 |
|
5400 |
21.9 |
|
5450 |
21.9 |
|
5500 |
22.4 |
|
5550 |
22.2 |
|
5600 |
22.4 |
|
5650 |
22.5 |
|
5700 |
22.0 |
|
5750 |
21.4 |
|
5800 |
22.0 |
|
5850 |
22.0 |

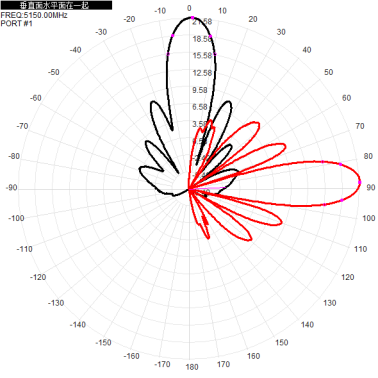

2.3 Radiation Pattern
| Port1 | 2D-Horizontal | 2D-Vertical | Horizontal & Vertical |
| 5150MHz |  |
 |
 |
| 5500MHz |  |
 |
 |
| 5850MHz |  |
 |
 |
