5G6G 6500-7200M 6.5-7.2G dual-polarized 18dBi directional antenna with two interfaces: H+V 2*N-K
Price:
Negotiable
MOQ:
10
Delivery Time:
15 days
Brand:
Leenz
Product Description
2*N female 6500-7200M 6.5-7.2G dual-polarized 18dBi directional antenna
1. Specification
| A. Electrical Characteristics | |
| Frequency | 6500-7200MHz |
| S.W.R. | <= 2.0 |
| Antenna Gain | 18dBi |
| Polarization | H+V |
| Horizontal Beamwidth | 18±2° |
| Vertical Beamwidth | 18±2° |
| F/B | >25dB |
| Impedance | 50Ohm |
| Max. Power | 50W |
| B. Material & Mechanical Characteristics | |
| Connector Type | 2*N-K |
| Dimension |
190*190*40mm |
| Radome material | ABS white |
| Weight | 0.41Kg |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 85 ˚C |
| Storage Temperature | - 40 ˚C ~ + 85 ˚C |
| Operation Humidity | ＜95% |
| Rated Wind Velocity | 36.9m/s |
2. Antenna - S Parameter Test Data

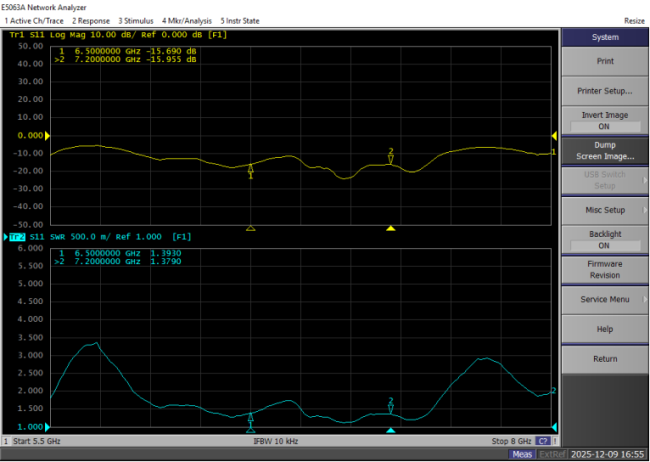

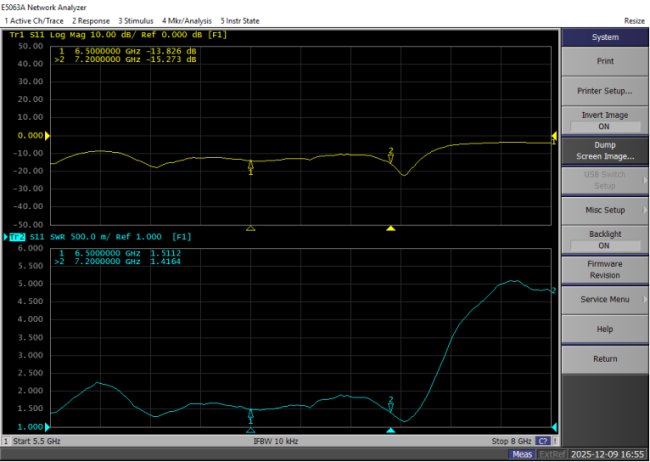

2.1 VSWR
Port 1 H
Port 2 V
2.2 Total Efficiency & Gain:
|
Port 1 |
|
Port 2 |
||
|
Frequency(MHz) |
Gain(dBi) |
Frequency(MHz) |
Gain(dBi) |
|
|
6500 |
18.7 |
6500 |
18.2 |
|
|
6550 |
19.0 |
6550 |
18.4 |
|
|
6600 |
19.4 |
6600 |
18.9 |
|
|
6650 |
19.1 |
6650 |
18.7 |
|
|
6700 |
19.0 |
6700 |
18.8 |
|
|
6750 |
18.1 |
6750 |
18.6 |
|
|
6800 |
18.5 |
6800 |
20.0 |
|
|
6850 |
17.6 |
6850 |
19.5 |
|
|
6900 |
18.1 |
6900 |
20.1 |
|
|
6950 |
19.0 |
6950 |
21.0 |
|
|
7000 |
18.3 |
7000 |
20.9 |
|
|
7050 |
17.9 |
7050 |
20.6 |
|
|
7100 |
18.3 |
7100 |
20.9 |
|
|
7150 |
18.1 |
7150 |
20.4 |
|
|
7200 |
18.2 |
7200 |
20.3 |
|

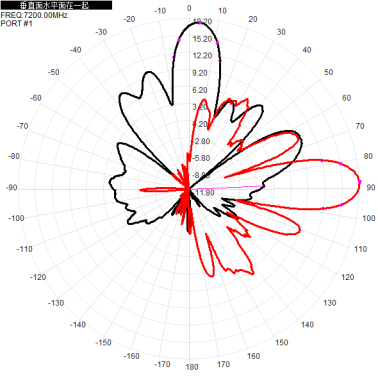

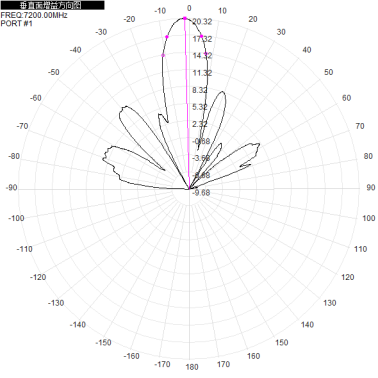

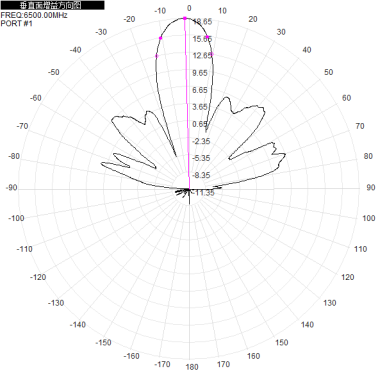

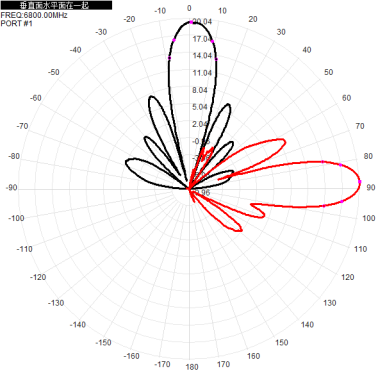

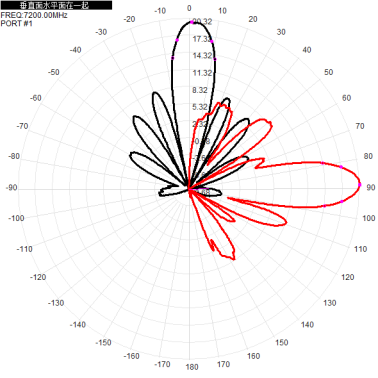

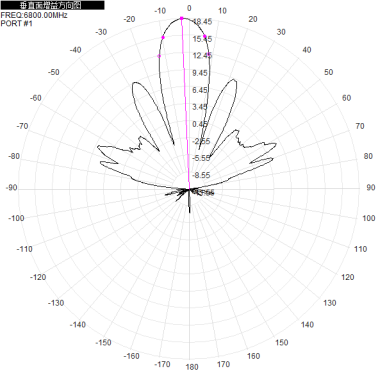

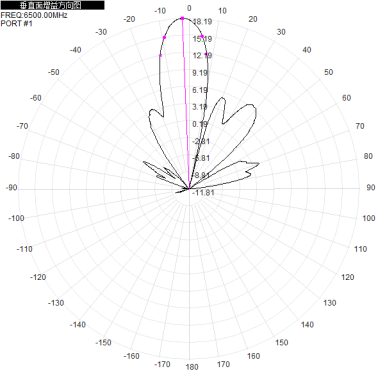

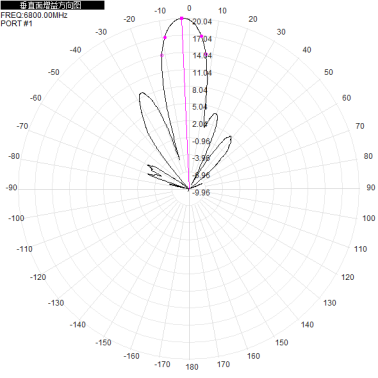

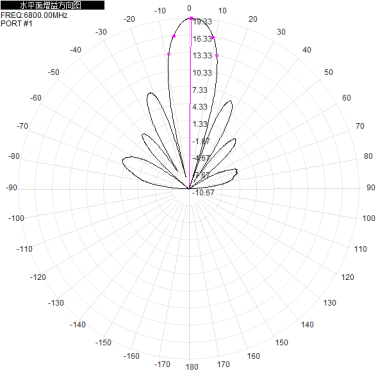

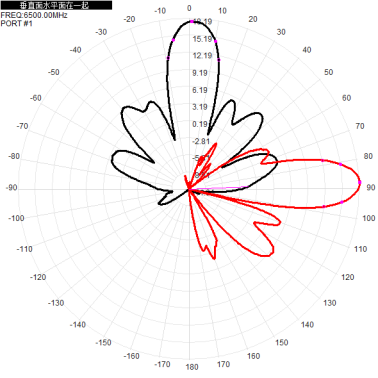

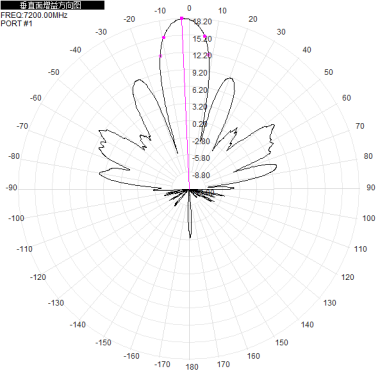

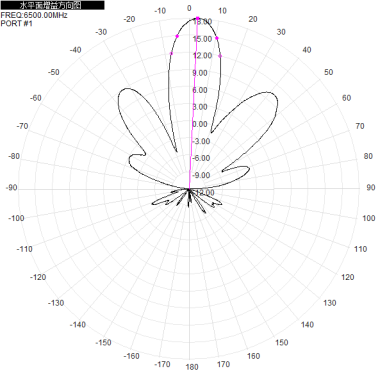

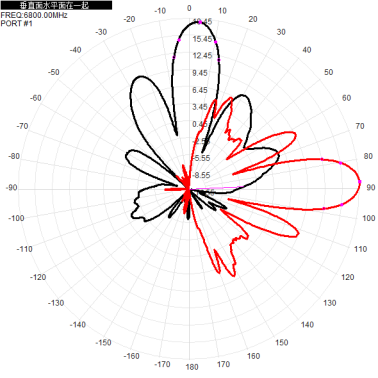

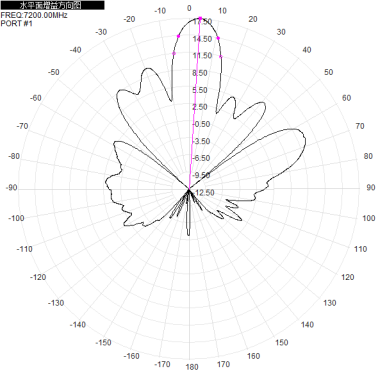

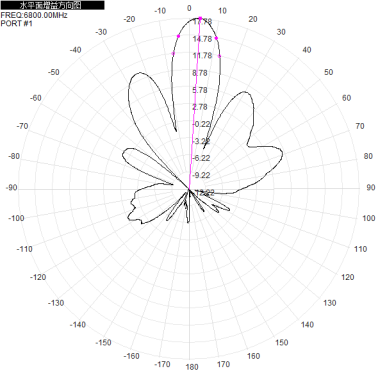

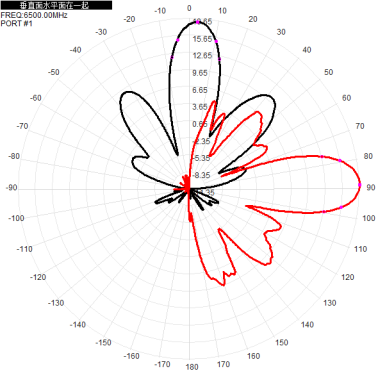

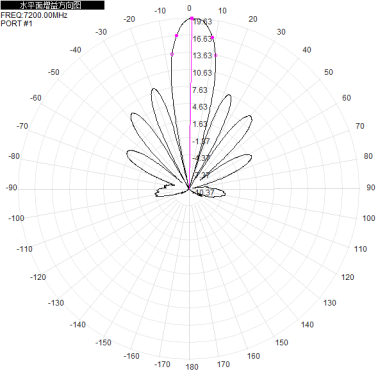

| Port1 H | 2D-Horizontal | 2D-Vertical | Horizontal & Vertical |
| 6500MHz |  |
 |
 |
| 6800MHz |  |
 |
 |
| 7200MHz |  |
 |
 |
| Port2 V | 2D-Horizontal | 2D-Vertical | Horizontal & Vertical |
| 6500MHz |  |
 |
 |
| 6800MHz |  |
 |
 |
| 7200MHz |  |
 |
 |
