5G6G 6500-7200M 6.5-7.2G dual-polarized 20dBi directional antenna with two interfaces: H+V 2*N-K 305x305
Price:
Negotiable
MOQ:
10
Delivery Time:
15 days
Brand:
Leenz
Product Description
2*N female 6500-7200M 6.5-7.2G dual-polarized 20dBi directional antenna
1. Specification
| A. Electrical Characteristics | |
| Frequency | 6500-7200MHz |
| S.W.R. | <= 2.0 |
| Antenna Gain | 20dBi |
| Polarization | H+V |
| Horizontal Beamwidth | 18±2° |
| Vertical Beamwidth | 10±2° |
| F/B | >25dB |
| Impedance | 50Ohm |
| Max. Power | 50W |
| B. Material & Mechanical Characteristics | |
| Connector Type | 2*N-K |
| Dimension |
305*305*25mm |
| Radome material | ABS white |
| Weight | 1.0Kg |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 85 ˚C |
| Storage Temperature | - 40 ˚C ~ + 85 ˚C |
| Operation Humidity | <95% |
| Rated Wind Velocity | 36.9m/s |
2. Antenna - S Parameter Test Data
2.1 VSWR
Port 1 H
Port 2 V

2.2 Total Efficiency & Gain:
|
Port 1(H) |
|
Port 2(V) |
||
|
Frequency(MHz) |
Gain(dBi) |
Frequency(MHz) |
Gain(dBi) |
|
|
6500 |
21.7 |
6500 |
21.8 |
|
|
6550 |
22.1 |
6550 |
22.0 |
|
|
6600 |
22.4 |
6600 |
22.6 |
|
|
6650 |
22.4 |
6650 |
22.3 |
|
|
6700 |
22.8 |
6700 |
22.7 |
|
|
6750 |
22.0 |
6750 |
21.9 |
|
|
6800 |
22.1 |
6800 |
22.3 |
|
|
6850 |
21.1 |
6850 |
21.4 |
|
|
6900 |
21.3 |
6900 |
21.6 |
|
|
6950 |
21.7 |
6950 |
22.1 |
|
|
7000 |
21.2 |
7000 |
21.9 |
|
|
7050 |
21.4 |
7050 |
21.9 |
|
|
7100 |
22.1 |
7100 |
22.7 |
|
|
7150 |
22.3 |
7150 |
22.3 |
|
|
7200 |
22.7 |
7200 |
22.5 |
|

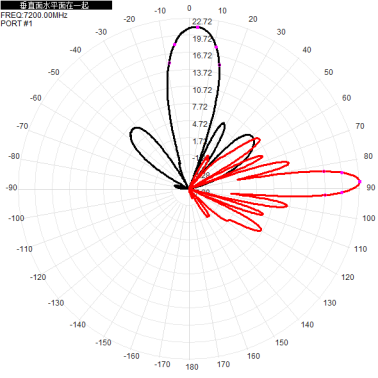

| Port1 H | 2D-Horizontal | 2D-Vertical | Horizontal & Vertical |
| 6500MHz | ![]() |
![]() |
![]() |
| 6800MHz | ![]() |
![]() |
![]() |
| 7200MHz | ![]() |
![]() |
![]() |

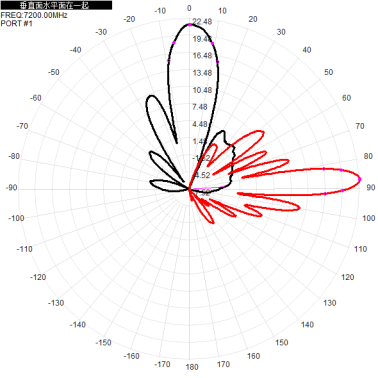

| Port2 V | 2D-Horizontal | 2D-Vertical | Horizontal & Vertical |
| 6500MHz | ![]() |
![]() |
![]() |
| 6800MHz | ![]() |
![]() |
![]() |
| 7200MHz | ![]() |
![]() |
![]() |
