5G6G UWB 300-6000M ultra-wideband outdoor waterproof fiberglass reinforced plastic antenna 25*300mm
1. Specification
| A. Electrical Characteristics | |
| Frequency | 300-6000MHz |
| Impedance | 50 Ohm |
| S.W.R. | <3.0 |
| Gain | -7~+7dBi |
| Efficiency | ≈46% |
| Horizontal Beamwidth | 360° |
| Vertical Beamwidth | 10-101° |
| Polarization | Linear |
| Max Power | 50W |
| B. Material & Mechanical Characteristics | |
| Connector Type | N connector |
| Dimension | Φ25*300mm |
| Weight | 0.17Kg |
| Radome material | Fiberglass (black) |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 80 ˚C |
| Storage Temperature | - 40 ˚C ~ + 80 ˚C |
2. Antenna - S Parameter Test Data

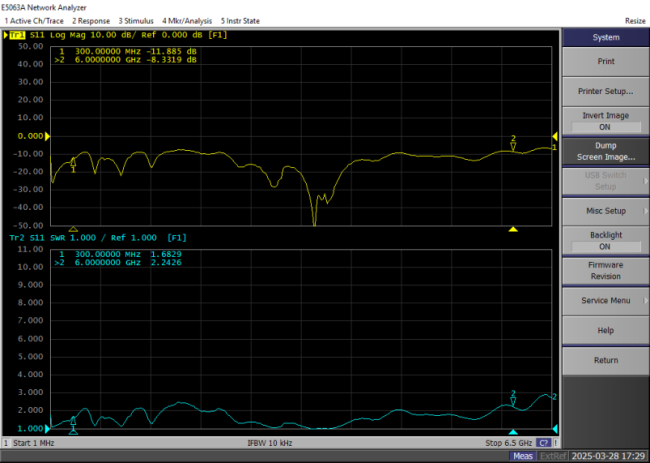

2.1 VSWR
2.2 Total Efficiency & Gain:
|
Frequency(MHz) |
Gain(dBi) |
Efficiency(%) |
|
Frequency(MHz) |
Gain(dBi) |
Efficiency(%) |
|
300 |
-6.9 |
10.3 |
2900 |
3.7 |
57.4 |
|
|
350 |
-6.4 |
9.7 |
3000 |
3.9 |
54.4 |
|
|
400 |
-6.3 |
8.0 |
3100 |
3.6 |
57.5 |
|
|
450 |
-5.2 |
9.3 |
3200 |
2.9 |
54.9 |
|
|
500 |
-5.8 |
16.5 |
3300 |
2.4 |
55.0 |
|
|
550 |
-2.2 |
33.0 |
3400 |
2.0 |
52.6 |
|
|
600 |
0.6 |
51.6 |
3500 |
2.6 |
55.6 |
|
|
650 |
0.8 |
42.8 |
3600 |
2.8 |
52.3 |
|
|
700 |
1.4 |
41.6 |
3700 |
2.7 |
50.1 |
|
|
750 |
0.9 |
36.1 |
3800 |
2.4 |
52.1 |
|
|
800 |
1.2 |
30.2 |
3900 |
2.6 |
53.7 |
|
|
850 |
2.9 |
44.1 |
4000 |
2.8 |
52.9 |
|
|
900 |
3.0 |
52.9 |
4100 |
3.2 |
53.1 |
|
|
950 |
2.6 |
52.4 |
4200 |
3.1 |
47.7 |
|
|
1000 |
1.8 |
45.5 |
4300 |
3.0 |
46.1 |
|
|
1100 |
0.7 |
37.9 |
4400 |
3.0 |
45.7 |
|
|
1200 |
1.3 |
43.3 |
4500 |
3.8 |
49.3 |
|
|
1300 |
1.3 |
51.4 |
4600 |
3.4 |
51.5 |
|
|
1400 |
0.5 |
52.0 |
4700 |
3.0 |
49.0 |
|
|
1500 |
-1.1 |
42.1 |
4800 |
3.4 |
50.7 |
|
|
1600 |
-1.7 |
43.0 |
4900 |
3.2 |
46.8 |
|
|
1700 |
-1.3 |
42.7 |
5000 |
4.4 |
50.1 |
|
|
1800 |
-1.0 |
40.0 |
5100 |
5.9 |
54.5 |
|
|
1900 |
-0.5 |
42.9 |
5200 |
6.5 |
59.9 |
|
|
2000 |
0.5 |
40.8 |
5300 |
5.8 |
58.0 |
|
|
2100 |
0.0 |
40.0 |
5400 |
5.1 |
59.1 |
|
|
2200 |
1.2 |
41.9 |
5500 |
4.3 |
58.5 |
|
|
2300 |
1.6 |
46.3 |
5600 |
4.3 |
48.4 |
|
|
2400 |
2.6 |
57.0 |
5700 |
4.1 |
44.5 |
|
|
2500 |
2.4 |
58.7 |
5800 |
4.5 |
46.6 |
|
|
2600 |
2.1 |
55.1 |
5900 |
4.3 |
43.0 |
|
|
2700 |
2.5 |
58.8 |
6000 |
4.8 |
44.3 |
|
|
2800 |
3.4 |
58.5 |
|
|
|
| 3D | 2D-Horizontal | 2D-Vertical | |
| 300MHz |  |
 |
 |
| 1000MHz |  |
 |
 |
| 2100MHz |  |
 |
 |
| 3D | 2D-Horizontal | 2D-Vertical | |
| 3000MHz |  |
 |
 |
| 4500MHz |  |
 |
 |
| 6000MHz |  |
 |
 |
