4G5G 600-6000M ultra-wideband outdoor waterproof fiberglass reinforced plastic antenna 16*200mm for SMA-J
1. Specification
| A. Electrical Characteristics | |
| Frequency | 600-6000MHz |
| Impedance | 50 Ohm |
| S.W.R. | <4.5 |
| Gain | -0.4~+4.5dBi |
| Efficiency | ≈46% |
| Horizontal Beamwidth | 360° |
| Vertical Beamwidth | 12-82° |
| Polarization | Linear |
| Max Power | 50W |
| B. Material & Mechanical Characteristics | |
| Connector Type | SMA-J |
| Dimension | Φ16*200mm |
| Weight | 0.04Kg |
| Radome material | Fiberglass (black) |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 80 ˚C |
| Storage Temperature | - 40 ˚C ~ + 80 ˚C |
2. Antenna - S Parameter Test Data

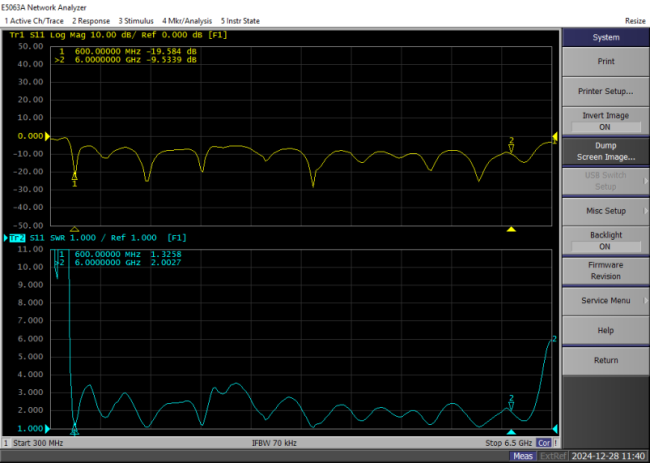

2.1 VSWR
2.2 Total Efficiency & Gain:
|
Frequency(MHz) |
Gain(dBi) |
Efficiency(%) |
|
Frequency(MHz) |
Gain(dBi) |
Efficiency(%) |
|
600 |
2.2 |
61.1 |
3400 |
2.0 |
57.5 |
|
|
700 |
1.8 |
48.5 |
3500 |
2.2 |
63.1 |
|
|
800 |
1.8 |
46.0 |
3600 |
3.1 |
63.5 |
|
|
900 |
1.6 |
47.2 |
3700 |
3.2 |
65.5 |
|
|
1000 |
2.8 |
52.8 |
3800 |
3.1 |
65.9 |
|
|
1100 |
2.8 |
53.0 |
3900 |
2.1 |
51.0 |
|
|
1200 |
1.4 |
39.0 |
4000 |
2.7 |
56.8 |
|
|
1300 |
-0.2 |
35.6 |
4100 |
2.8 |
56.4 |
|
|
1400 |
1.2 |
51.7 |
4200 |
4.5 |
58.3 |
|
|
1500 |
2.6 |
64.9 |
4300 |
4.0 |
53.2 |
|
|
1600 |
3.4 |
67.7 |
4400 |
3.6 |
49.5 |
|
|
1700 |
2.9 |
61.9 |
4500 |
4.0 |
57.5 |
|
|
1800 |
2.2 |
55.3 |
4600 |
3.5 |
59.4 |
|
|
1900 |
1.9 |
53.6 |
4700 |
2.0 |
52.0 |
|
|
2000 |
1.2 |
48.3 |
4800 |
2.3 |
45.8 |
|
|
2100 |
2.1 |
53.2 |
4900 |
3.4 |
54.6 |
|
|
2200 |
3.5 |
53.8 |
5000 |
3.6 |
56.2 |
|
|
2300 |
3.2 |
34.3 |
5100 |
3.2 |
56.3 |
|
|
2400 |
2.1 |
45.0 |
5200 |
2.2 |
48.1 |
|
|
2500 |
0.9 |
51.9 |
5300 |
2.0 |
41.8 |
|
|
2600 |
-0.3 |
46.6 |
5400 |
2.7 |
46.9 |
|
|
2700 |
-0.4 |
53.7 |
5500 |
3.5 |
50.5 |
|
|
2800 |
0.0 |
56.0 |
5600 |
3.4 |
51.3 |
|
|
2900 |
1.2 |
58.7 |
5700 |
3.2 |
52.9 |
|
|
3000 |
0.9 |
61.2 |
5800 |
3.2 |
54.5 |
|
|
3100 |
1.2 |
60.2 |
5900 |
3.7 |
56.2 |
|
|
3200 |
0.9 |
55.6 |
6000 |
4.1 |
58.8 |
|
|
3300 |
1.2 |
55.1 |
|
|
|
| 3D | 2D-Horizontal | 2D-Vertical | |
| 600MHz |  |
 |
 |
| 1500MHz |  |
 |
 |
| 2500MHz |  |
 |
 |
| 3D | 2D-Horizontal | 2D-Vertical | |
| 3500MHz |  |
 |
 |
| 4800MHz |  |
 |
 |
| 6000MHz |  |
 |
 |
