4900-5000M 13dbi four-port directional antenna, 5G dual-polarization H+V interface 4*N-K, equipped with universal multi-directional fixed bracket, supports up, down, left and right adjustment
4900-5000M 13dbi four-port directional antenna, 5G dual-polarization H+V interface 4*N-K, equipped with universal multi-directional fixed bracket, supports up, down, left and right adjustment
1. Specification
| A. Electrical Characteristics | |
| Frequency | 4900-5000MHz |
| S.W.R. | <= 2.0 |
| Antenna Gain | 20dBi |
| Polarization | H+V |
| Horizontal Beamwidth | 45±5° |
| Vertical Beamwidth | 35±5° |
| F/B | >25dB |
| Impedance | 50Ohm |
| Max. Power | 50W |
| B. Material & Mechanical Characteristics | |
| Connector Type | 4*N-K |
| Dimension |
290*205*40mm |
| Radome material | ABS white |
| Weight | 1.2Kg |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 85 ˚C |
| Storage Temperature | - 40 ˚C ~ + 85 ˚C |
| Operation Humidity | ＜95% |
| Rated Wind Velocity | 36.9m/s |
2. Antenna - S Parameter Test Data
2.1 VSWR
Port 1 H
Port 2 V
Port 3 H
Port 4 V
2.2 Total Efficiency & Gain:
|
Port 1 |
|
Port 2 |
|
Port 3 |
|
Port 4 |
||||
|
Frequency(MHz) |
Gain(dBi) |
Frequency(MHz) |
Gain(dBi) |
Frequency(MHz) |
Gain(dBi) |
Frequency(MHz) |
Gain(dBi) |
|||
|
4900 |
12.7 |
4900 |
13.1 |
4900 |
12.8 |
4900 |
12.6 |
|||
|
4910 |
12.9 |
4910 |
13.2 |
4910 |
12.9 |
4910 |
12.5 |
|||
|
4920 |
12.9 |
4920 |
13.3 |
4920 |
12.9 |
4920 |
12.8 |
|||
|
4930 |
12.9 |
4930 |
13.2 |
4930 |
12.8 |
4930 |
12.9 |
|||
|
4940 |
12.9 |
4940 |
13.3 |
4940 |
13.1 |
4940 |
13.0 |
|||
|
4950 |
13.0 |
4950 |
13.5 |
4950 |
13.3 |
4950 |
13.2 |
|||
|
4960 |
13.0 |
4960 |
13.3 |
4960 |
13.1 |
4960 |
12.9 |
|||
|
4970 |
13.0 |
4970 |
13.6 |
4970 |
13.3 |
4970 |
13.3 |
|||
|
4980 |
12.9 |
4980 |
13.4 |
4980 |
13.1 |
4980 |
13.0 |
|||
|
4990 |
13.1 |
4990 |
13.4 |
4990 |
13.3 |
4990 |
13.3 |
|||
|
5000 |
13.1 |
5000 |
13.3 |
5000 |
13.3 |
5000 |
12.9 |
|||

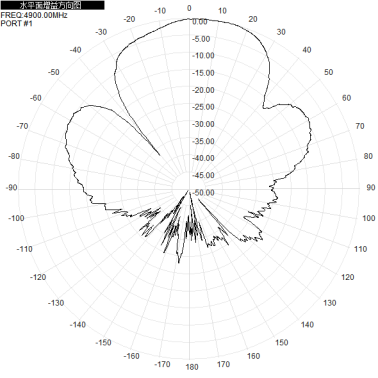

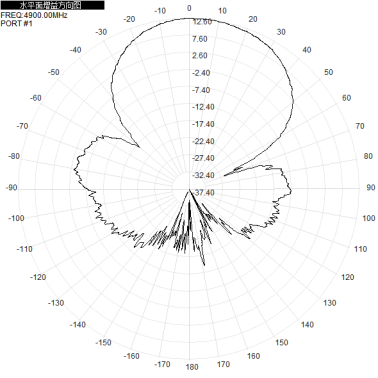

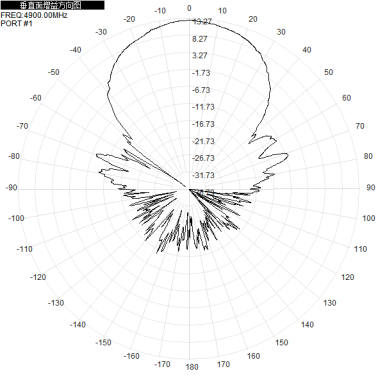

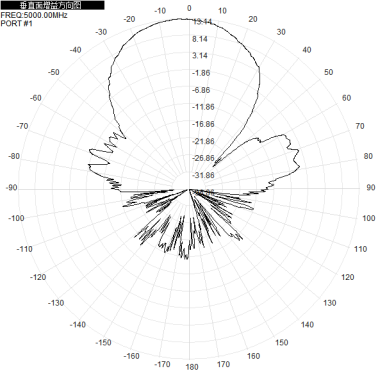

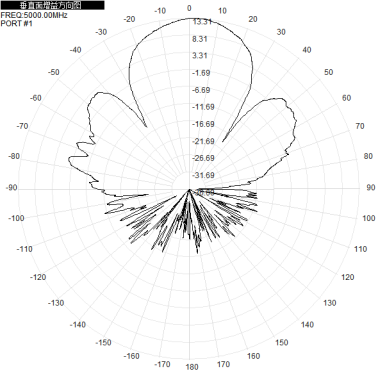

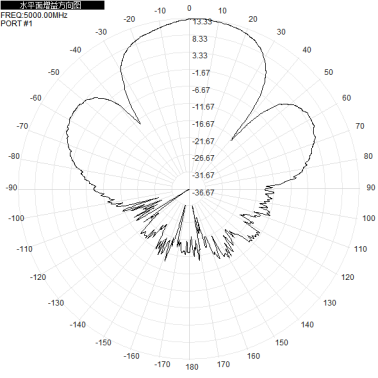

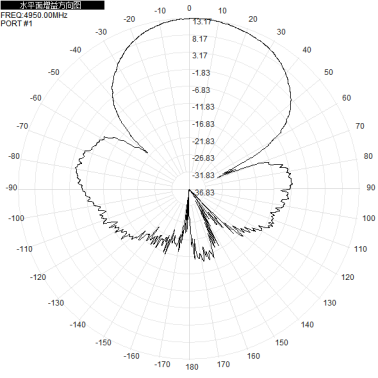

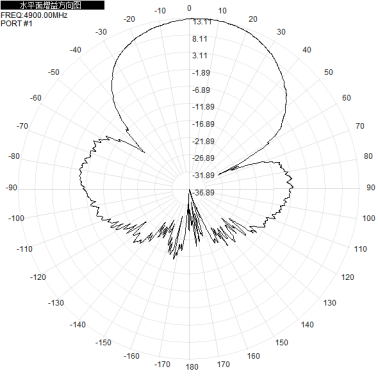

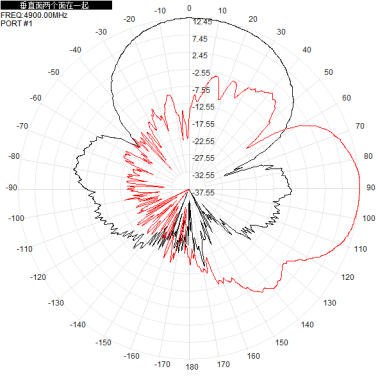

| Port1 H | 2D-Horizontal | 2D-Vertical | Horizontal & Vertical |
| 4900MHz |  |
 |
 |
| 4950MHz |  |
 |
 |
| 5000MHz |  |
 |
 |
| Port2 V | 2D-Horizontal | 2D-Vertical | Horizontal & Vertical |
| 4900MHz |  |
 |
 |
| 4950MHz |  |
 |
 |
| 5000MHz |  |
 |
 |
| Port3 H | 2D-Horizontal | 2D-Vertical | Horizontal & Vertical |
| 4900MHz |  |
 |
 |
| 4950MHz |  |
 |
 |
| 5000MHz |  |
 |
 |
| Port4 V | 2D-Horizontal | 2D-Vertical | Horizontal & Vertical |
| 4900MHz |  |
 |
 |
| 4950MHz |  |
 |
 |
| 5000MHz |  |
 |
 |
