2.4/5.8G dual-band wifi6 omnidirectional small mushroom-shaped ceiling-mounted antenna
Price:
Negotiable
MOQ:
10
Delivery Time:
15 days
Brand:
Leenz
Product Description
2.4/5.8G dual-band wifi6 omnidirectional small mushroom-shaped ceiling-mounted antenna
1. Specification
| A. Electrical Characteristics | ||
| Frequency | 2400-2500MHz | 5150-5850MHz |
| Impedance | 50 Ohm | 50 Ohm |
| S.W.R. | <2.0 | <2.0 |
| Gain | 3dBi | 5dBi |
| Efficiency | ≈78% | ≈74% |
| Polarization | Linear | Linear |
| Max Power | 50W | 50W |
| B. Material & Mechanical Characteristics | ||
| Connector Type | N-K / SMA-K connector | |
| Dimension | Φ86*40mm | |
| Weight | 0.1Kg | |
| Radome material | ABS white | |
| C. Environmental | ||
| Operation Temperature | - 40 ˚C ~ + 80 ˚C | |
| Storage Temperature | - 40 ˚C ~ + 80 ˚C | |
2. Antenna - S Parameter Test Data

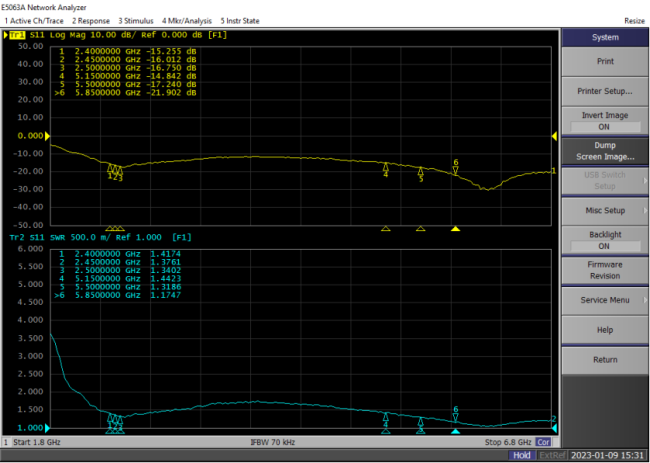

2.1 VSWR

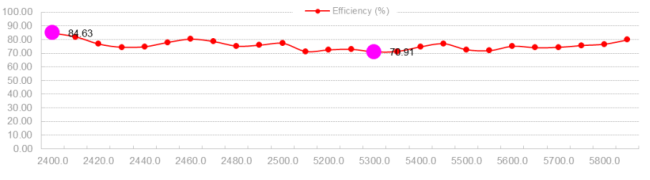

2.2 Total Efficiency & Gain
|
Frequency(MHz) |
2400.0 |
2410.0 |
2420.0 |
2430.0 |
2440.0 |
2450.0 |
2460.0 |
2470.0 |
2480.0 |
2490.0 |
2500.0 |
|
Gain (dBi) |
3.03 |
3.03 |
3.07 |
3.17 |
3.16 |
3.28 |
3.31 |
3.25 |
3.13 |
3.02 |
3.04 |
|
Efficiency (%) |
84.63 |
81.95 |
76.69 |
74.40 |
74.78 |
77.95 |
80.33 |
78.54 |
75.19 |
75.90 |
77.23 |
|
Frequency(MHz) |
5150 |
5200 |
5250 |
5300 |
5350 |
5400 |
5450 |
5500 |
5550 |
5600 |
5650 |
5700 |
5750 |
5800 |
5850 |
|
Gain (dBi) |
3.79 |
3.98 |
3.96 |
3.85 |
3.93 |
4.01 |
4.09 |
3.98 |
4.11 |
4.45 |
4.35 |
4.30 |
4.35 |
4.34 |
4.41 |
|
Efficiency (%) |
71.28 |
72.48 |
72.85 |
70.91 |
71.35 |
74.71 |
76.97 |
72.58 |
71.90 |
75.14 |
74.05 |
74.31 |
75.67 |
76.63 |
79.78 |
2.2 Radiation Pattern
| 3D | 2D-Horizontal | 2D-Vertical | |
| 2400MHz | ![]() |
![]() |
![]() |
| 2450MHz | ![]() |
![]() |
![]() |
| 2500MHz | ![]() |
![]() |
![]() |
| 3D | 2D-Horizontal | 2D-Vertical | |
| 5150MHz | ![]() |
![]() |
![]() |
| 5500MHz | ![]() |
![]() |
![]() |
| 5850MHz | ![]() |
![]() |
![]() |
