UWB Channel 5 6250-6750M 3dBi omnidirectional small mushroom head ceiling-mounted antenna
Price:
Negotiable
MOQ:
10
Delivery Time:
15 days
Brand:
Leenz
Product Description
UWB Channel 5 6250-6750M omnidirectional small mushroom head ceiling-mounted antenna
1. Specification
| A. Electrical Characteristics | |
| Frequency | 6250-6750MHz |
| S.W.R. | <= 1.8 |
| Antenna Gain | 3dBi |
| Polarization | Vertical |
| Horizontal Beamwidth | 360° |
| Vertical Beamwidth | 42-56° |
| Impedance | 50Ohm |
| Max. Power | 50W |
| B. Material & Mechanical Characteristics | |
| Connector Type | N-K connector |
| Dimension | φ86*40mm |
| Radome material | ABS |
| Weight | 0.09Kg |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 85 ˚C |
| Storage Temperature | - 40 ˚C ~ + 85 ˚C |
| Operation Humidity | ＜95% |
| Rated Wind Velocity |
36.9m/s |
2. Antenna - S Parameter Test Data
2.1 VSWR
2.2 Total Efficiency & Gain:
|
Frequency(MHz) |
6200 |
6250 |
6300 |
6350 |
6400 |
6450 |
6500 |
6550 |
6600 |
6650 |
6700 |
6750 |
6800 |
|
Gain (dBi) |
3.6 |
4.0 |
3.8 |
3.6 |
3.6 |
3.3 |
3.1 |
3.3 |
4.0 |
3.8 |
3.9 |
3.1 |
3.5 |
|

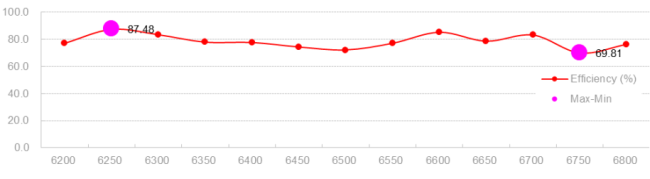

Efficiency (%) |
77.1 |
87.5 |
83.5 |
77.9 |
77.7 |
74.3 |
72.1 |
77.1 |
85.3 |
78.7 |
83.3 |
69.8 |
76.3 |
2.3 Radiation Pattern
| Port1 | 3D | 2D-Horizontal | 2D- Vertical |
| 6250MHz |  |
 |
 |
| 6500MHz |  |
 |
 |
| 6750MHz |  |
 |
 |
