UWB Channel 9 7700-8300M 7.7-8.3G 3dBi omnidirectional small mushroom head ceiling-mounted antenna
Price:
Negotiable
MOQ:
10
Delivery Time:
15 days
Brand:
Leenz
Product Description
UWB Channel 2 6250-6750M omnidirectional small mushroom head ceiling-mounted antenna
1. Specification
| A. Electrical Characteristics | |
| Frequency | 7700-8300MHz |
| S.W.R. | <= 2.0 |
| Antenna Gain | 3dBi |
| Polarization | Vertical |
| Horizontal Beamwidth | 360° |
| Vertical Beamwidth | 46-60° |
| Impedance | 50Ohm |
| Max. Power | 50W |
| B. Material & Mechanical Characteristics | |
| Connector Type | N-K connector |
| Dimension | φ86*40mm |
| Radome material | ABS |
| Weight | 0.08Kg |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 85 ˚C |
| Storage Temperature | - 40 ˚C ~ + 85 ˚C |
| Operation Humidity | ＜95% |
| Rated Wind Velocity |
36.9m/s |
2. Antenna - S Parameter Test Data
2.1 VSWR

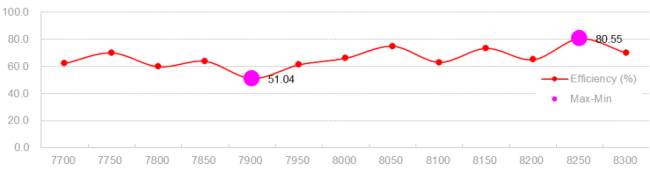

2.2 Total Efficiency & Gain:
|
Frequency(MHz) |
7700 |
7750 |
7800 |
7850 |
7900 |
7950 |
8000 |
8050 |
8100 |
8150 |
8200 |
8250 |
8300 |
|
Gain (dBi) |
2.4 |
2.7 |
2.1 |
2.5 |
1.6 |
2.5 |
3.4 |
3.9 |
2.9 |
3.9 |
3.5 |
4.3 |
3.4 |
|
Efficiency (%) |
62.2 |
70.1 |
59.7 |
63.8 |
51.0 |
61.2 |
66.1 |
75.0 |
63.1 |
73.4 |
65.0 |
80.5 |
69.8 |
2.3 Radiation Pattern
| Port1 | 3D | 2D-Horizontal | 2D- Vertical |
| 77000MHz |  |
 |
 |
| 8000MHz |  |
 |
 |
| 8300MHz |  |
 |
 |
