N male 5G 617-960/1710-6000M omnidirectional 5dbi grey flat fishtail waterproof antenna
N male 5G 617-960/1710-6000M omnidirectional 5dbi grey flat fishtail waterproof antenna
1. Specification
| A. Electrical Characteristics | ||
| Frequency | 617-960MHz | 1710-6000MHz |
| Impedance | 50 Ohm | 50 Ohm |
| S.W.R. | <3.0 | <3.0 |
| Gain | 3dBi | 5dBi |
| Efficiency | ≈58% | ≈64% |
| Horizontal Beamwidth | 360° | 360° |
| Vertical Beamwidth | 25-72° | 18-107° |
| Polarization | Linear | Linear |
| Max Power | 50W | 50W |
| B. Material & Mechanical Characteristics | ||
| Connector Type | N connector | |
| Dimension | Φ22.5*195mm | |
| Weight | 0.07Kg | |
| Radome material | ABS (Grey) | |
| C. Environmental | ||
| Operation Temperature | - 40 ˚C ~ + 80 ˚C | |
| Storage Temperature | - 40 ˚C ~ + 80 ˚C | |
2. Antenna - S Parameter Test Data

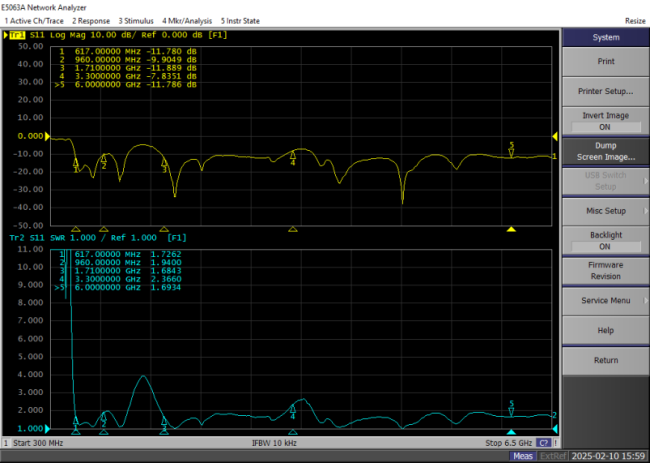

2.1 VSWR
2.2 Total Efficiency & Gain:
|
Frequency(MHz) |
Gain(dBi) |
Efficiency(%) |
|
Frequency(MHz) |
Gain(dBi) |
Efficiency(%) |
|
617 |
1.0 |
50.5 |
3200 |
1.1 |
60.9 |
|
|
630 |
1.4 |
55.0 |
3300 |
1.5 |
58.2 |
|
|
660 |
2.3 |
68.5 |
3400 |
1.8 |
53.2 |
|
|
690 |
1.7 |
53.8 |
3500 |
3.0 |
55.9 |
|
|
720 |
1.5 |
54.0 |
3600 |
3.6 |
62.1 |
|
|
750 |
2.1 |
59.8 |
3700 |
2.3 |
59.0 |
|
|
780 |
1.8 |
56.8 |
3800 |
2.9 |
65.9 |
|
|
810 |
1.6 |
54.8 |
3900 |
1.7 |
65.4 |
|
|
840 |
1.4 |
55.6 |
4000 |
2.2 |
66.0 |
|
|
870 |
1.5 |
61.5 |
4100 |
2.6 |
59.9 |
|
|
900 |
1.0 |
56.9 |
4200 |
3.6 |
60.1 |
|
|
930 |
2.2 |
65.2 |
4300 |
3.8 |
54.5 |
|
|
960 |
3.2 |
66.3 |
4400 |
4.5 |
58.2 |
|
|
|
|
|
4500 |
4.4 |
57.6 |
|
|
1710 |
4.6 |
70.9 |
4600 |
3.4 |
58.8 |
|
|
1800 |
4.2 |
68.3 |
4700 |
2.0 |
57.8 |
|
|
1900 |
3.6 |
63.1 |
4800 |
3.6 |
58.6 |
|
|
2000 |
3.9 |
57.3 |
4900 |
4.0 |
56.8 |
|
|
2100 |
3.9 |
53.8 |
5000 |
3.4 |
50.5 |
|
|
2200 |
2.8 |
53.8 |
5100 |
3.9 |
54.2 |
|
|
2300 |
1.6 |
57.4 |
5200 |
4.2 |
64.7 |
|
|
2400 |
1.6 |
66.2 |
5300 |
3.7 |
63.3 |
|
|
2500 |
1.5 |
66.3 |
5400 |
4.0 |
66.6 |
|
|
2600 |
0.6 |
61.4 |
5500 |
4.0 |
65.2 |
|
|
2700 |
0.7 |
66.0 |
5600 |
2.7 |
57.6 |
|
|
2800 |
1.2 |
70.4 |
5700 |
3.3 |
59.6 |
|
|
2900 |
1.8 |
69.3 |
5800 |
4.1 |
65.8 |
|
|
3000 |
2.0 |
66.3 |
5900 |
3.8 |
59.7 |
|
|
3100 |
1.7 |
69.7 |
6000 |
3.6 |
60.9 |
| 3D | 2D-Horizontal | 2D-Vertical | |
| 617MHz |  |
 |
 |
| 750MHz |  |
 |
 |
| 960MHz |  |
 |
 |
| 3D | 2D-Horizontal | 2D-Vertical | |
| 1710MHz |  |
 |
 |
| 2400MHz |  |
 |
 |
| 3300MHz |  |
 |
 |
| 3D | 2D-Horizontal | 2D-Vertical | |
| 4000MHz |  |
 |
 |
| 5000MHz |  |
 |
 |
| 6000MHz |  |
 |
 |
