N male 4G 698-960/1710-2700M omnidirectional 5dbi grey flat fishtail waterproof antenna
N male 4G 698-960/1710-2700M omnidirectional 5dbi grey flat fishtail waterproof antenna
1. Specification
| A. Electrical Characteristics | ||
| Frequency | 698-960MHz | 1710-2700MHz |
| Impedance | 50 Ohm | 50 Ohm |
| S.W.R. | <2.5 | <3.5 |
| Gain | 3dBi | 5dBi |
| Efficiency | ≈78% | ≈72% |
| Horizontal Beamwidth | 360° | 360° |
| Vertical Beamwidth | 30-75° | 16-40° |
| Polarization | Linear | Linear |
| Max Power | 50W | 50W |
| B. Material & Mechanical Characteristics | ||
| Connector Type | N -J | |
| Dimension | Φ22.5*195mm | |
| Weight | 0.07Kg | |
| Radome material | ABS (Grey) | |
| C. Environmental | ||
| Operation Temperature | - 40 ˚C ~ + 80 ˚C | |
| Storage Temperature | - 40 ˚C ~ + 80 ˚C | |
2. Antenna - S Parameter Test Data

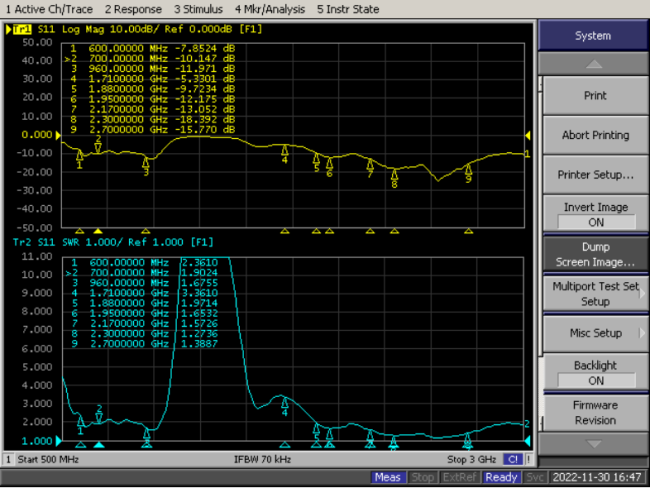

2.1 VSWR

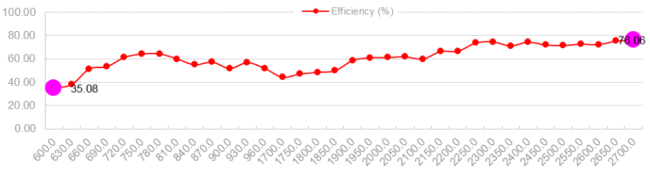

2.2 Total Efficiency & Gain:
|
Frequency (MHz) |
600.0 |
630.0 |
660.0 |
690.0 |
720.0 |
750.0 |
780.0 |
810.0 |
840.0 |
870.0 |
900.0 |
930.0 |
960.0 |
|
Gain (dBi) |
0.03 |
0.04 |
0.68 |
1.25 |
1.30 |
1.85 |
2.00 |
1.60 |
1.29 |
1.39 |
0.94 |
1.05 |
0.90 |
|
Efficiency (%) |
35.08 |
38.08 |
51.47 |
53.41 |
61.35 |
64.33 |
64.40 |
60.02 |
55.05 |
57.31 |
51.86 |
56.84 |
51.84 |
|
Frequency (MHz) |
1700.0 |
1750.0 |
1800.0 |
1850.0 |
1900.0 |
1950.0 |
2000.0 |
2050.0 |
2100.0 |
2150.0 |
2200.0 |
|
Gain (dBi) |
2.27 |
2.14 |
2.18 |
2.70 |
4.14 |
4.59 |
4.86 |
4.68 |
4.26 |
4.18 |
3.81 |
|
Efficiency (%) |
44.28 |
47.08 |
48.50 |
49.96 |
58.70 |
61.01 |
61.21 |
61.90 |
59.95 |
66.40 |
66.74 |
|
Frequency (MHz) |
2250.0 |
2300.0 |
2350.0 |
2400.0 |
2450.0 |
2500.0 |
2550.0 |
2600.0 |
2650.0 |
2700.0 |
2250.0 |
|
Gain (dBi) |
3.38 |
3.82 |
3.70 |
4.05 |
4.24 |
4.34 |
3.92 |
2.87 |
2.65 |
2.64 |
3.38 |
|
Efficiency (%) |
73.73 |
74.74 |
71.28 |
74.56 |
72.01 |
71.61 |
72.81 |
72.35 |
75.39 |
76.06 |
73.73 |
| 3D | 2D-Horizontal | 2D-Vertical | |
| 698MHz |  |
 |
 |
| 810MHz |  |
 |
 |
| 960MHz |  |
 |
 |
| 3D | 2D-Horizontal | 2D-Vertical | |
| 1710MHz |  |
 |
 |
| 2200MHz |  |
 |
 |
| 2700MHz |  |
 |
 |
