N male 2.4G / 5.8G WIFI router antenna, 5dbi omnidirectional fish-tail waterproof antenna
Price:
Negotiable
MOQ:
10
Delivery Time:
15 days
Brand:
Leenz
Product Description
N male 2.4G / 5.8G WIFI router antenna, 5dbi omnidirectional fish-tail waterproof antenna
1. Specification
| A. Electrical Characteristics | ||
| Frequency | 2400-2500MHz | 5150-5850MHz |
| Impedance | 50 Ohm | 50 Ohm |
| S.W.R. | <2.0 | <2.0 |
| Gain | 4dBi | 5dBi |
| Efficiency | ≈78% | ≈72% |
| Horizontal Beamwidth | 360° | 360° |
| Vertical Beamwidth | 35°±5° | 20°±5° |
| Polarization | Linear | Linear |
| Max Power | 50W | 50W |
| B. Material & Mechanical Characteristics | ||
| Connector Type | N-J connector | |
| Dimension | Φ22.5*195mm | |
| Weight | 0.07Kg | |
| Radome material | ABS (Grey) | |
| C. Environmental | ||
| Operation Temperature | - 40 ˚C ~ + 80 ˚C | |
| Storage Temperature | - 40 ˚C ~ + 80 ˚C | |
2. Antenna - S Parameter Test Data
2.1 VSWR

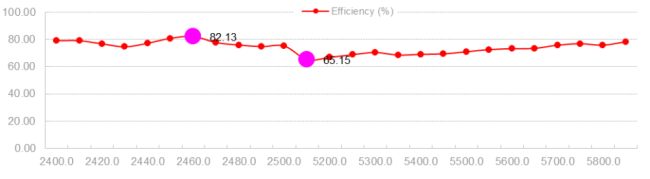

2.2 Total Efficiency & Gain:
|
Frequency (MHz) |
2400.0 |
2410.0 |
2420.0 |
2430.0 |
2440.0 |
2450.0 |
2460.0 |
2470.0 |
2480.0 |
2490.0 |
2500.0 |
|
Gain (dBi) |
4.05 |
4.06 |
4.03 |
3.84 |
3.91 |
4.01 |
3.95 |
3.67 |
3.57 |
3.40 |
3.23 |
|
Efficiency (%) |
79.08 |
78.97 |
76.68 |
74.52 |
77.22 |
80.79 |
82.13 |
77.63 |
75.85 |
74.69 |
75.10 |
|
Frequency (MHz) |
5150 |
5200 |
5250 |
5300 |
5350 |
5400 |
5450 |
5500 |
5550 |
5600 |
5650 |
5700 |
5750 |
5800 |
5850 |
|
Gain (dBi) |
2.50 |
2.79 |
2.84 |
2.94 |
3.19 |
3.40 |
3.44 |
3.36 |
3.27 |
3.06 |
2.82 |
2.99 |
3.26 |
3.23 |
3.16 |
|
Efficiency (%) |
65.15 |
66.79 |
68.81 |
70.40 |
68.50 |
69.02 |
69.37 |
70.91 |
72.50 |
73.18 |
73.40 |
75.73 |
76.81 |
75.78 |
78.17 |
2.3 Radiation Pattern
| 3D | 2D-Horizontal | 2D-Vertical | |
| 2400MHz |  |
 |
 |
| 2450MHz |  |
 |
 |
| 2500MHz |  |
 |
 |
| 3D | 2D-Horizontal | 2D-Vertical | |
| 5150MHz |  |
 |
 |
| 5500MHz |  |
 |
 |
| 5850MHz |  |
 |
 |
