Band 3 1.8G 1710-1880M single-polarized 18dbi base station board-shaped directional antenna ，Size：900*280*80mm
Price:
Negotiable
MOQ:
5
Delivery Time:
15 days
Brand:
Leenz
Product Description
1. Specification
| A. Electrical Characteristics | |
| Frequency | 1710-1880MHz |
| S.W.R. | <= 1.5 |
| Antenna Gain | 18dBi |
| Polarization | Vertical |
| Horizontal Beamwidth | 35±5° |
| Vertical Beamwidth | 10±3° |
| F/B | >24dB |
| Impedance | 50Ohm |
| Max. Power | 50W |
| B. Material & Mechanical Characteristics | |
| Connector Type | N Female connector |
| Dimension | 900*280*80mm |
| Radome material | PVC (Grey) |
| Weight | 7.5Kg |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 85 ˚C |
| Storage Temperature | - 40 ˚C ~ + 85 ˚C |
| Operation Humidity | ＜95% |
| Rated Wind Velocity | 36.9m/s |
2. Antenna - S Parameter Test Data
2.1 VSWR
2.2 Total Efficiency & Gain:
|
Frequency(MHz) |
Gain(dBi) |
|
1710 |
17.8 |
|
1720 |
17.9 |
|
1730 |
18.3 |
|
1740 |
18.3 |
|
1750 |
18.4 |
|
1760 |
18.7 |
|
1770 |
18.2 |
|
1780 |
18.7 |
|
1790 |
18.7 |
|
1800 |
18.7 |
|
1810 |
18.9 |
|
1820 |
18.9 |
|
1830 |
18.9 |
|
1840 |
19.0 |
|
1850 |
18.9 |
|
1860 |
19.0 |
|
1870 |
19.2 |
|
1880 |
19.3 |
2.3 Radiation Pattern

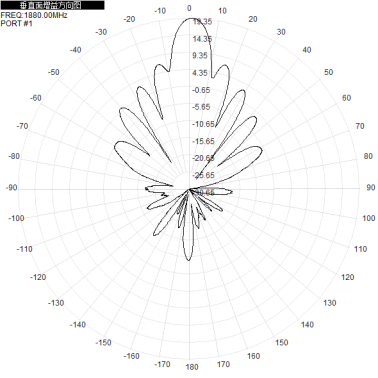

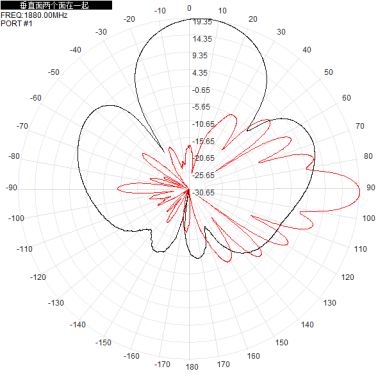

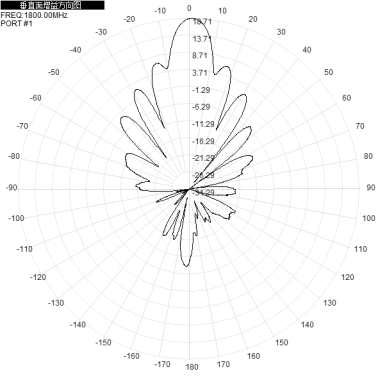

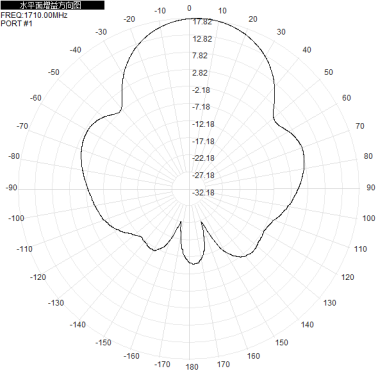

| Port1 | 2D-Horizontal | 2D-Vertical | Horizontal & Vertical |
| 1710MHz |  |
 |
 |
| 1800MHz |  |
 |
 |
| 1880MHz |  |
 |
 |
