GPS 1500-1600M omnidirectional 2dbi passive folding rubber rod antenna
Price:
Negotiable
MOQ:
10
Delivery Time:
15 days
Brand:
Leenz
Product Description
GPS 1500-1600M omnidirectional 2dbi passive folding rubber rod antenna
1. Specification
| A. Electrical Characteristics | |
| Frequency | 1500-1600MHz |
| Impedance | 50 Ohm |
| S.W.R. | <2 |
| Gain | 2dBi |
| Efficiency | ≈70% |
| Polarization | Linear |
| Horizontal Beamwidth | 360° |
| Vertical Beamwidth | 60° |
| B. Material & Mechanical Characteristics | |
| Connector Type | SMA-J |
| Dimension | Φ13*209mm |
| Weight | 0.02Kg |
| Radome material | PBT+PC |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 85˚C |
| Storage Temperature | - 40 ˚C ~ + 85˚C |
2. Antenna - S Parameter Test Data

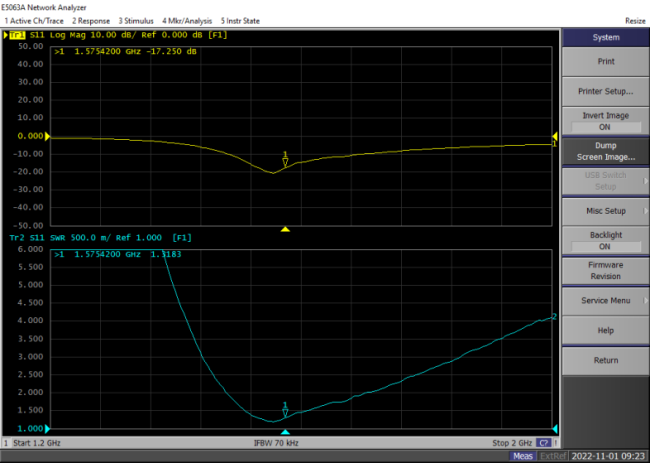

2.1 VSWR

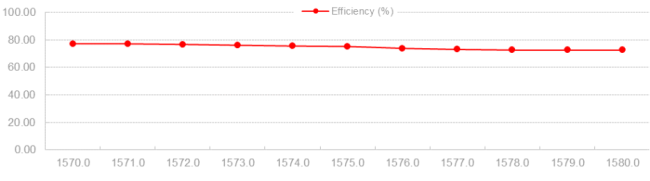

2.2 Total Efficiency & Gain:
|
Frequency (MHz) |
1570.0 |
1571.0 |
1572.0 |
1573.0 |
1574.0 |
1575.0 |
1576.0 |
1577.0 |
1578.0 |
1579.0 |
1580.0 |
|
Gain (dBi) |
2.07 |
2.05 |
2.02 |
1.97 |
1.94 |
1.91 |
1.82 |
1.77 |
1.74 |
1.72 |
1.72 |
|
Efficiency (%) |
77.01 |
76.91 |
76.51 |
75.93 |
75.37 |
75.05 |
73.79 |
72.99 |
72.59 |
72.48 |
72.48 |
2.3 Radiation Pattern
| 3D | 2D-Horizontal | 2D-Vertical | |
| 1558MHz |  |
 |
 |
| 1580MHz |  |
 |
 |
| 1602MHz |  |
 |
 |
