UWB CH2 3.7-4.2G 3700-4200MHz 6dBi omnidirectional foldable plastic housing wideband intelligent robot positioning and ranging antenna with a total length of 21x200mm
Price:
Negotiable
MOQ:
10
Delivery Time:
15 days
Brand:
Leenz
Product Description
UWB CH2 3.7-4.2G 3700-4200MHz 6dBi omnidirectional foldable plastic housing wideband intelligent robot positioning and ranging antenna with a total length of 21x200mm
1. Specification
| A. Electrical Characteristics | |
| Frequency | 3700-4200MHz |
| S.W.R. | <= 2.0 |
| Antenna Gain3 | 6dBi |
| Efficiency | ≈82% |
| Polarization | Linear |
| Horizontal Beamwidth | 360° |
| Vertical Beamwidth | 25±2° |
| Impedance | 50 Ohm |
| B. Material & Mechanical Characteristics | |
| Connector Type | SMA-J |
| Dimension | φ21*200mm |
| Color | Black |
| Weight | 0.025Kg |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 65 ˚C |
| Storage Temperature | - 40 ˚C ~ + 80 ˚C |
2. Antenna - S Parameter Test Data
2.1 VSWR

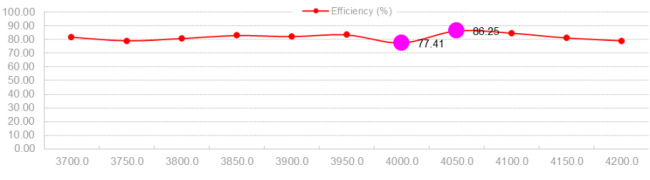

2.2 Total Efficiency & Gain
|
Frequency (MHz) |
3700.0 |
3750.0 |
3800.0 |
3850.0 |
3900.0 |
3950.0 |
4000.0 |
4050.0 |
4100.0 |
4150.0 |
4200.0 |
|
Gain (dBi) |
5.93 |
6.08 |
6.04 |
6.08 |
6.03 |
6.17 |
6.01 |
6.63 |
6.64 |
6.41 |
6.33 |
|
Efficiency (%) |
81.58 |
78.95 |
80.61 |
82.82 |
82.09 |
83.29 |
77.41 |
86.25 |
84.54 |
81.06 |
78.98 |
2.2 Radiation Pattern
| 3D | 2D-Horizontal | 2D-Vertical | |
| 3700MHz |  |
 |
 |
| 3950MHz |  |
 |
 |
| 4200MHz |  |
 |
 |
