TNC male 4G LTE GSM GPRS omnidirectional high-gain foldable rubber rod whip antenna 13x215mm
Price:
Negotiable
MOQ:
10
Delivery Time:
15 days
Brand:
Leenz
Product Description
TNC male 4G LTE GSM GPRS omnidirectional high-gain foldable rubber rod whip antenna 13x215mm
1. Specification
| A. Electrical Characteristics | ||
| Frequency | 806-960MHz | 1710-2700MHz |
| S.W.R. | <= 3.5 | <= 2.5 |
| Antenna Gain | 2dBi | 3.5dBi |
| Efficiency | ≈50% | ≈60% |
| Polarization | Linear | Linear |
| Impedance | 50 Ohm | 50 Ohm |
| B. Material & Mechanical Characteristics | ||
| Connector Type | TNC-J | |
| Dimension | ¢13*215mm | |
| Color | ABS Black | |
| Weight | 0.026Kg | |
| C. Environmental | ||
| Operation Temperature | - 40 ˚C ~ + 80 ˚C | |
| Storage Temperature | - 40 ˚C ~ + 80 ˚C | |
2. Antenna - S Parameter Test Data

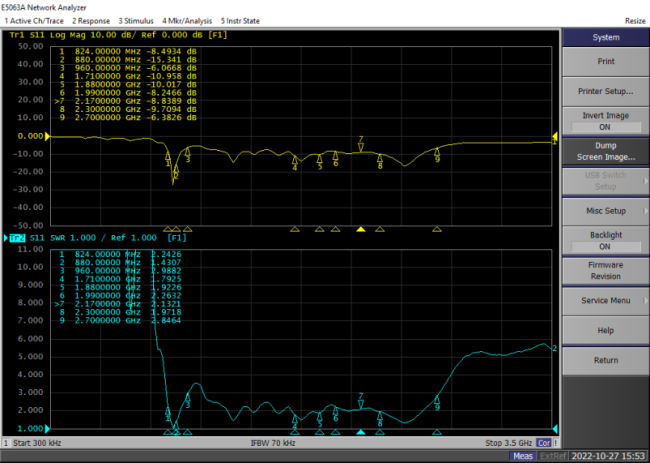

2.1 VSWR
2.2 Total Efficiency & Gain
|
Frequency(MHz) |
Gain(dBi) |
|
800 |
-0.5 |
|
820 |
0.7 |
|
840 |
1.2 |
|
860 |
1.4 |
|
880 |
1.5 |
|
900 |
1.7 |
|
920 |
2.0 |
|
940 |
1.7 |
|
960 |
1.0 |
|
|
|
|
1700 |
3.7 |
|
1800 |
3.3 |
|
1900 |
2.0 |
|
2000 |
1.4 |
|
2100 |
1.1 |
|
2200 |
0.4 |
|
2300 |
0.6 |
|
2400 |
1.1 |
|
2500 |
1.3 |
|
2600 |
0.1 |
|
2700 |
-1.1 |
2.2 Radiation Pattern
| 3D | 2D-Horizontal | 2D-Vertical | |
| 800MHz |  |
 |
 |
| 840MHz |  |
 |
 |
| 960MHz |  |
 |
 |
| 3D | 2D-Horizontal | 2D-Vertical | |
| 1700MHz |  |
 |
 |
| 2200MHz |  |
 |
 |
| 2700MHz |  |
 |
 |
