5.8G 3dbi WiFi plastic rod antenna drone image transmission antenna 10x109mm
Price:
Negotiable
MOQ:
10
Delivery Time:
15 days
Brand:
Leenz
Product Description
5.8G 3dbi WiFi plastic rod antenna drone image transmission antenna 10x109mm
1. Specification
| A. Electrical Characteristics | |
| Frequency | 5150-5850MHz |
| Impedance | 50 Ohm |
| S.W.R. | <2.0 |
| Gain | 3dBi |
| Efficiency | ≈68% |
| Polarization | Linear |
| Max Power | 50W |
| B. Material & Mechanical Characteristics | |
| Connector Type | SMA -J |
| Dimension | Φ10*109mm |
| Weight | 0.01Kg |
| Antenna material | ABS black |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 80 ˚C |
| Storage Temperature | - 40 ˚C ~ + 80 ˚C |
2. Antenna - S Parameter Test Data

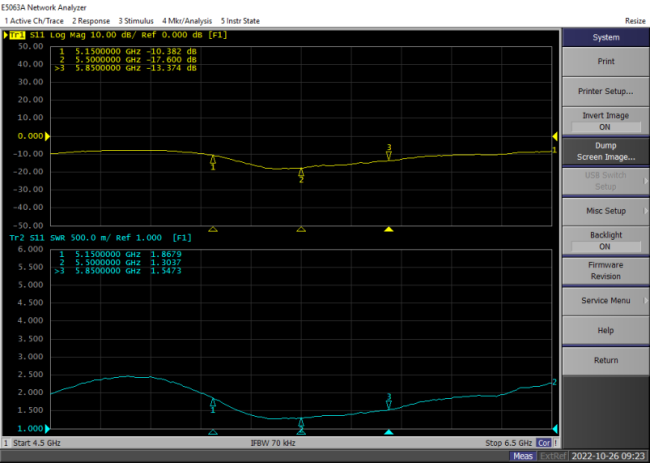

2.1 VSWR

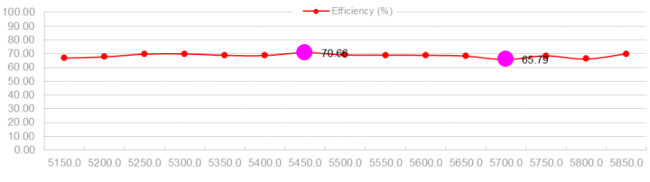

2.2 Total Efficiency & Gain
|
Frequency (MHz) |
5150 |
5200 |
5250 |
5300 |
5350 |
5400 |
5450 |
5500 |
5550 |
5600 |
5650 |
5700 |
5750 |
5800 |
5850 |
|
Gain (dBi) |
3.01 |
3.25 |
3.35 |
3.54 |
3.72 |
3.82 |
4.11 |
4.03 |
3.93 |
3.92 |
3.93 |
3.95 |
3.94 |
3.67 |
3.86 |
|
Efficiency (%) |
66.83 |
67.64 |
69.63 |
69.76 |
68.75 |
68.58 |
70.66 |
69.00 |
68.86 |
68.79 |
68.25 |
65.79 |
68.41 |
66.17 |
69.78 |
2.2 Radiation Pattern
| 3D | 2D-Horizontal | 2D-Vertical | |
| 5150MHz |  |
 |
 |
| 5500MHz |  |
 |
 |
| 5850MHz |  |
 |
 |
