UWB CH5 6-7G 6250-6750M 4dbi Base Station Positioning Antenna 10x109mm
Price:
Negotiable
MOQ:
10
Delivery Time:
15 days
Brand:
Leenz
Product Description
UWB CH5 6-7G 6250-6750M 4dbi Base Station Positioning Antenna 10x109mm
1. Specification
| A. Electrical Characteristics | |
| Frequency | 6000-7000MHz |
| S.W.R. | <= 2.0 |
| Antenna Gain6 | 4dBi |
| Efficiency | ≈76% |
| Polarization | Linear |
| Horizontal Beamwidth | 360° |
| Vertical Beamwidth | 23-28° |
| Impedance | 50 Ohm |
| B. Material & Mechanical Characteristics | |
| Connector Type | SMA-J |
| Dimension | φ10*109mm |
| Color | ABS Black |
| Weight | 0.01Kg |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 65 ˚C |
| Storage Temperature | - 40 ˚C ~ + 80 ˚C |
2. Antenna - S Parameter Test Data
2.1 VSWR
2.2 Total Efficiency & Gain
|
Frequency (MHz) |
6600.0 |
6650.0 |
6700.0 |
6750.0 |
6800.0 |
6850.0 |
6900.0 |
6950.0 |
7000.0 |
|
Gain (dBi) |
3.46 |
3.58 |
3.49 |
3.47 |
3.54 |
3.78 |
4.05 |
4.18 |
3.52 |
|
Efficiency (%) |
77.08 |
75.00 |
76.13 |
75.61 |
75.71 |
77.64 |
79.20 |
79.28 |
76.36 |
|

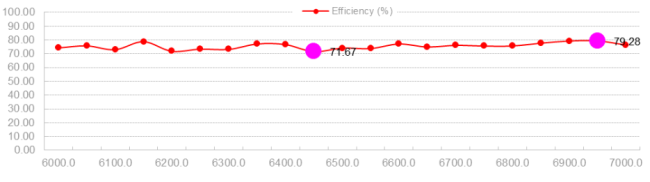

Frequency (MHz) |
6000.0 |
6050.0 |
6100.0 |
6150.0 |
6200.0 |
6250.0 |
6300.0 |
6350.0 |
6400.0 |
6450.0 |
6500.0 |
6550.0 |
|
Gain (dBi) |
3.74 |
3.49 |
3.28 |
3.62 |
3.43 |
3.28 |
3.20 |
3.56 |
3.50 |
3.10 |
3.24 |
3.17 |
|
Efficiency (%) |
74.31 |
75.80 |
73.08 |
78.71 |
71.93 |
73.48 |
73.25 |
77.05 |
76.69 |
71.67 |
74.16 |
73.89 |
2.2 Radiation Pattern
| 3D | 2D-Horizontal | 2D-Vertical | |
| 6000MHz |  |
 |
 |
| 6500MHz |  |
 |
 |
| 7000MHz |  |
 |
 |
